Driver Heated Seat Switch Connector End View

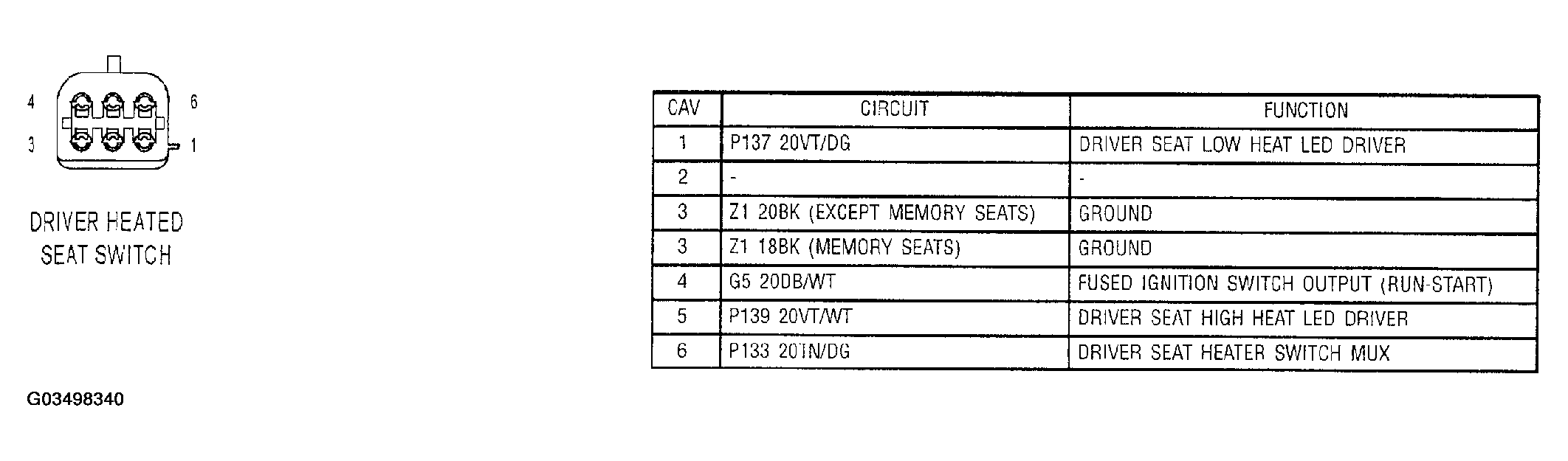

Fig 1: Driver Heated Seat Switch Connector End View

G03498340

Courtesy of DAIMLERCHRYSLER CORP.
