Instrument Cluster C1 Connector End View

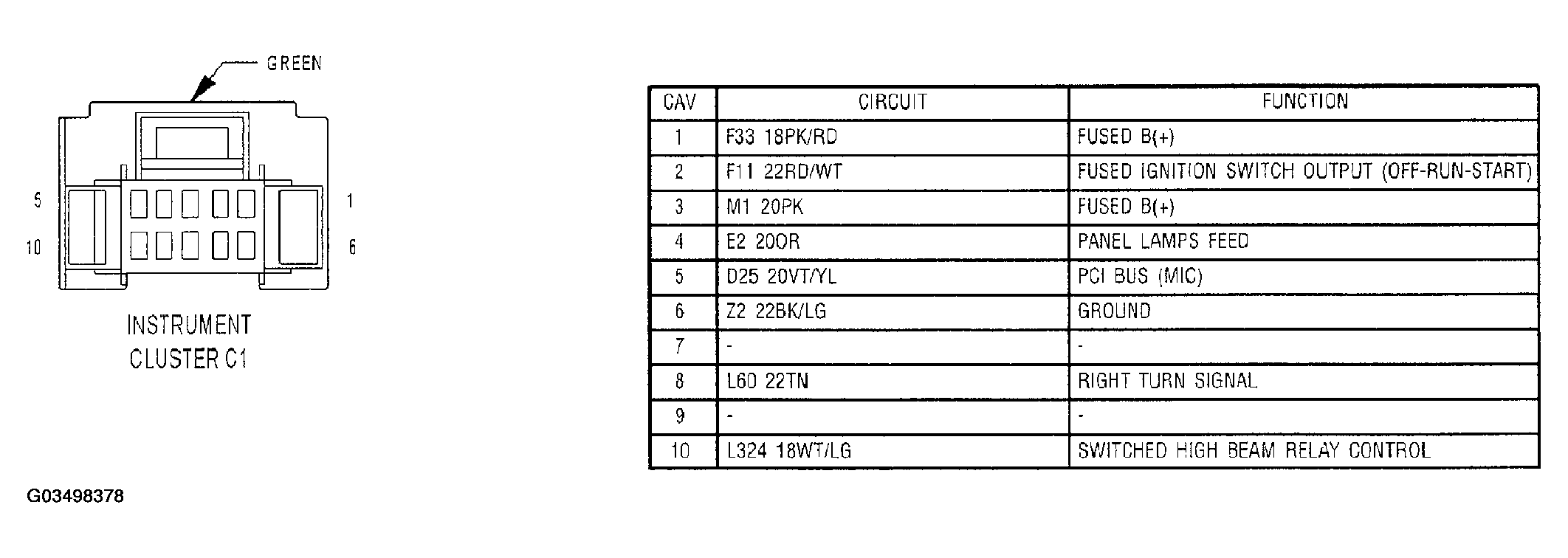

Fig 1: Instrument Cluster Connector End View (C1)

G03498378

Courtesy of DAIMLERCHRYSLER CORP.
