Powertrain Control Module C3 Connector End View

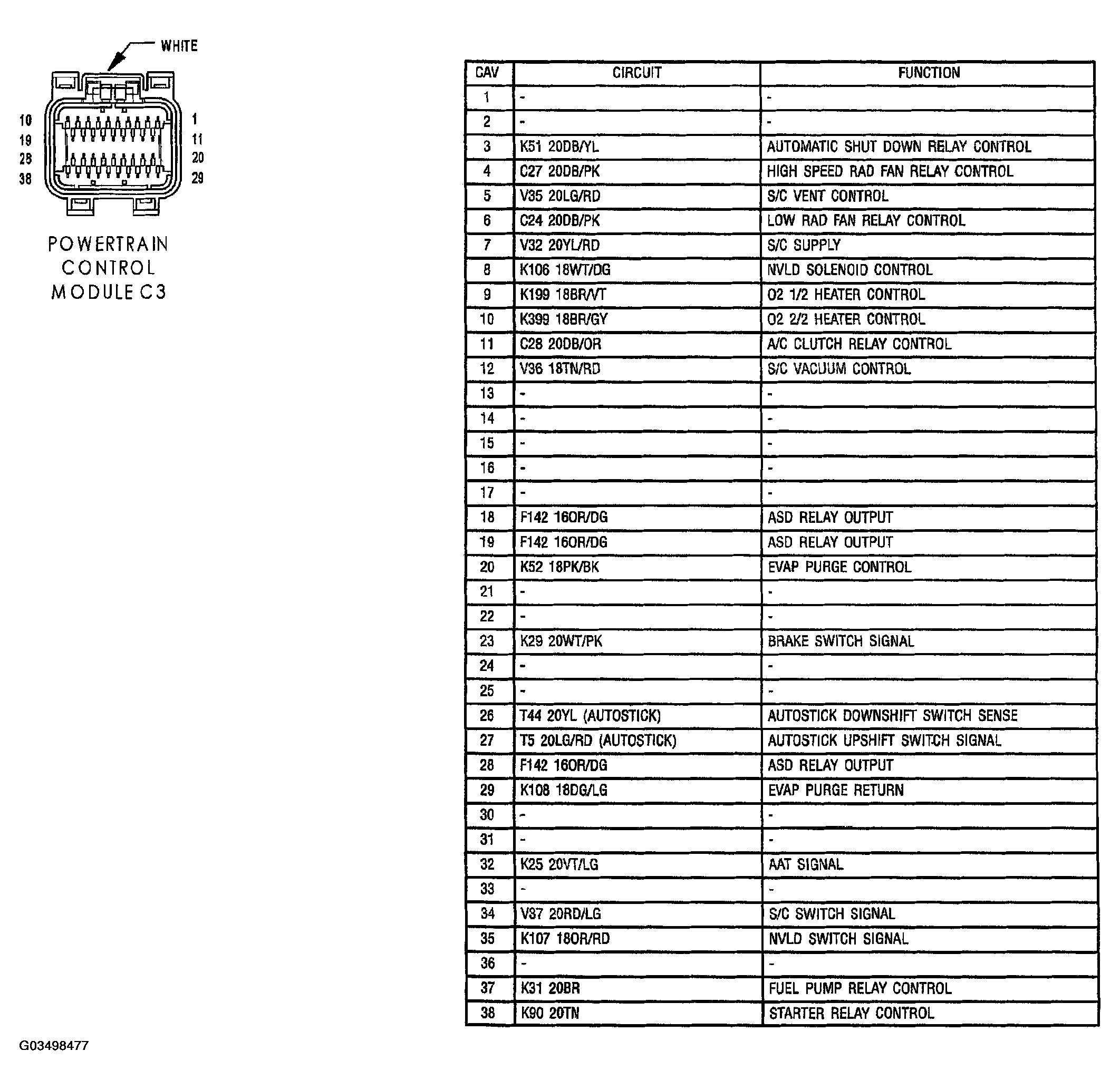

Fig 1: Powertrain Control Module Connector End View (C3)

G03498477

Courtesy of DAIMLERCHRYSLER CORP.
