Body Control Module C4 Connector End View

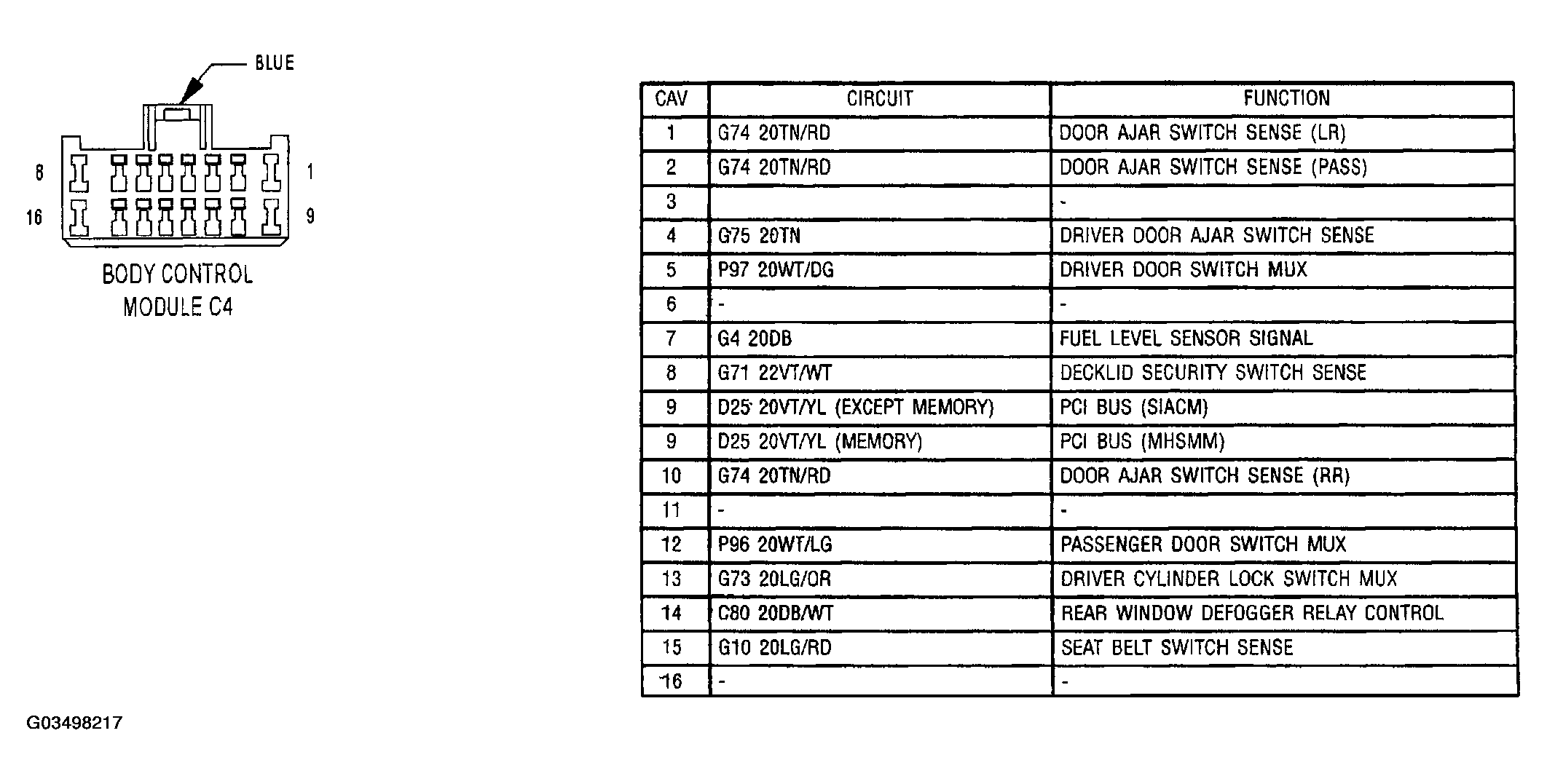

Fig 1: Body Control Module Connector End View (C4)

G03498217

Courtesy of DAIMLERCHRYSLER CORP.
