Driver Power Seat Switch Connector End View

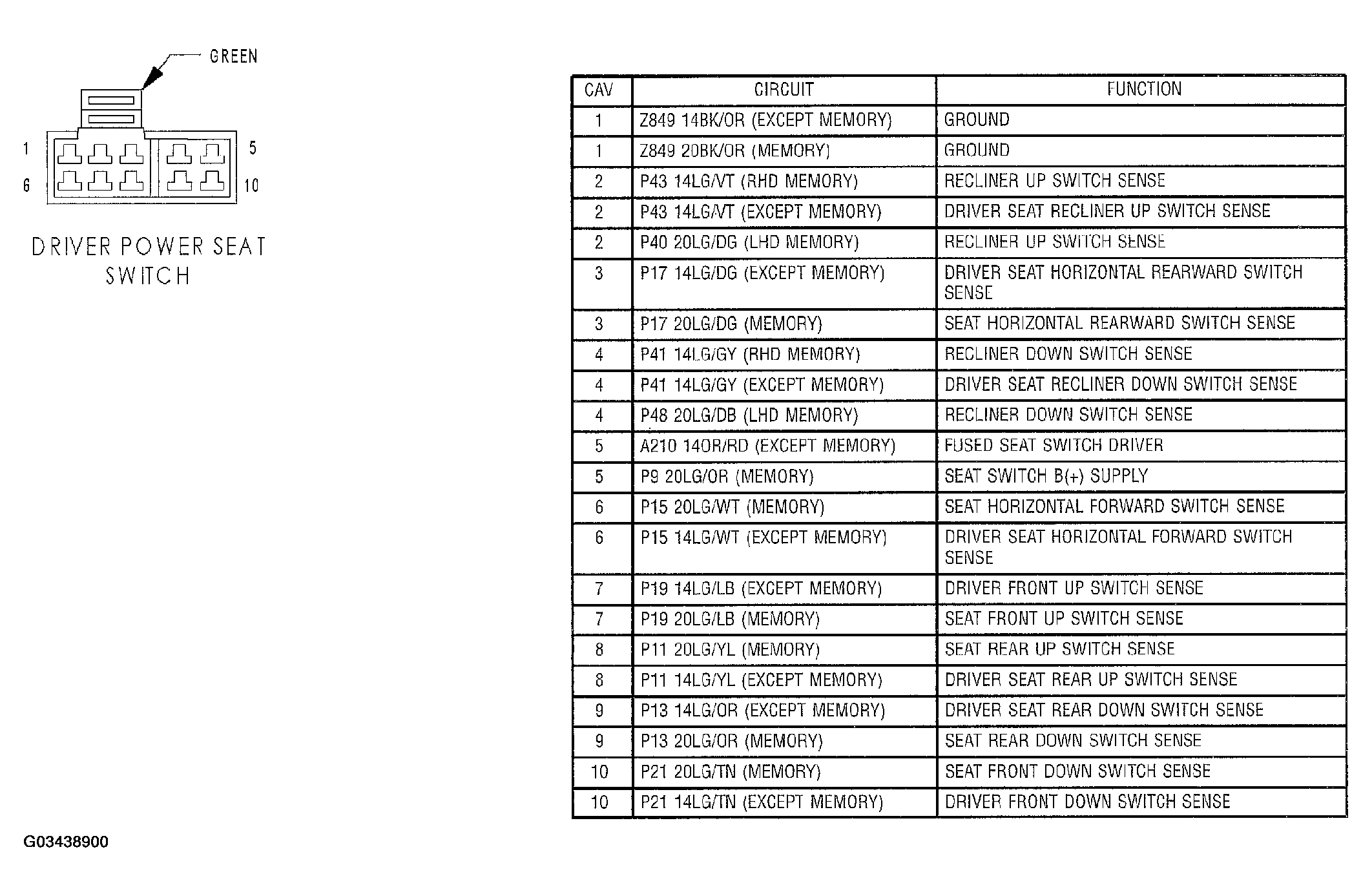

Fig 1: Driver Power Seat Switch Connector End View

G03438900

Courtesy of DAIMLERCHRYSLER CORP.
