Transverse Bracket: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the left D-pillar trim from the vehicle. Refer to BODY for the procedure.
  3. Disconnect the gear motor assembly electrical connector and disengage retaining pushpin.
  4. Loosen the gear motor assembly retaining bolts to allow room for transverse bracket to be removed.

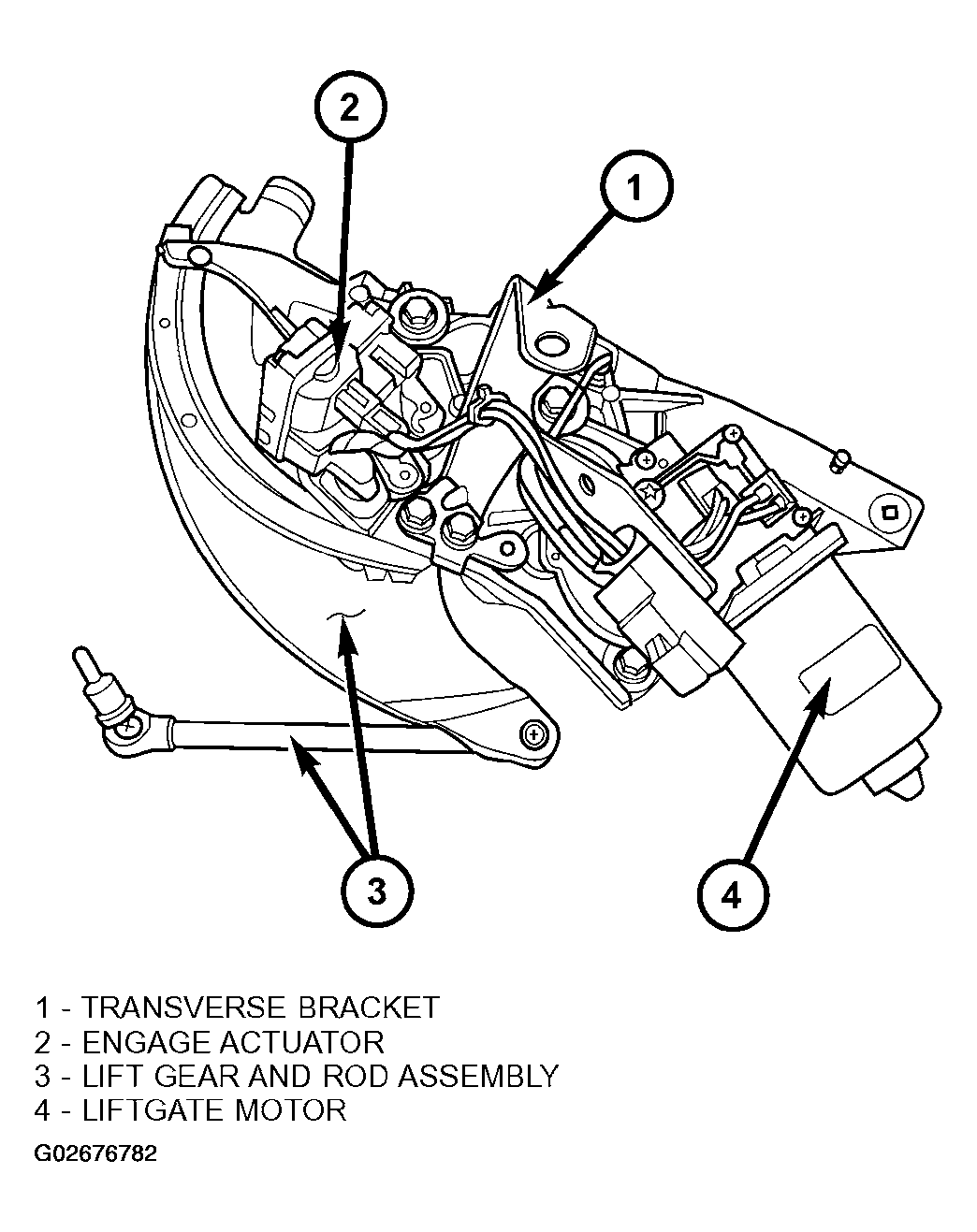

  5. Remove the transverse bracket retaining bolts (Figure ).
  6. Remove the transverse bracket from the vehicle.
