Power Liftgate System: Chime/Thermistor: Description

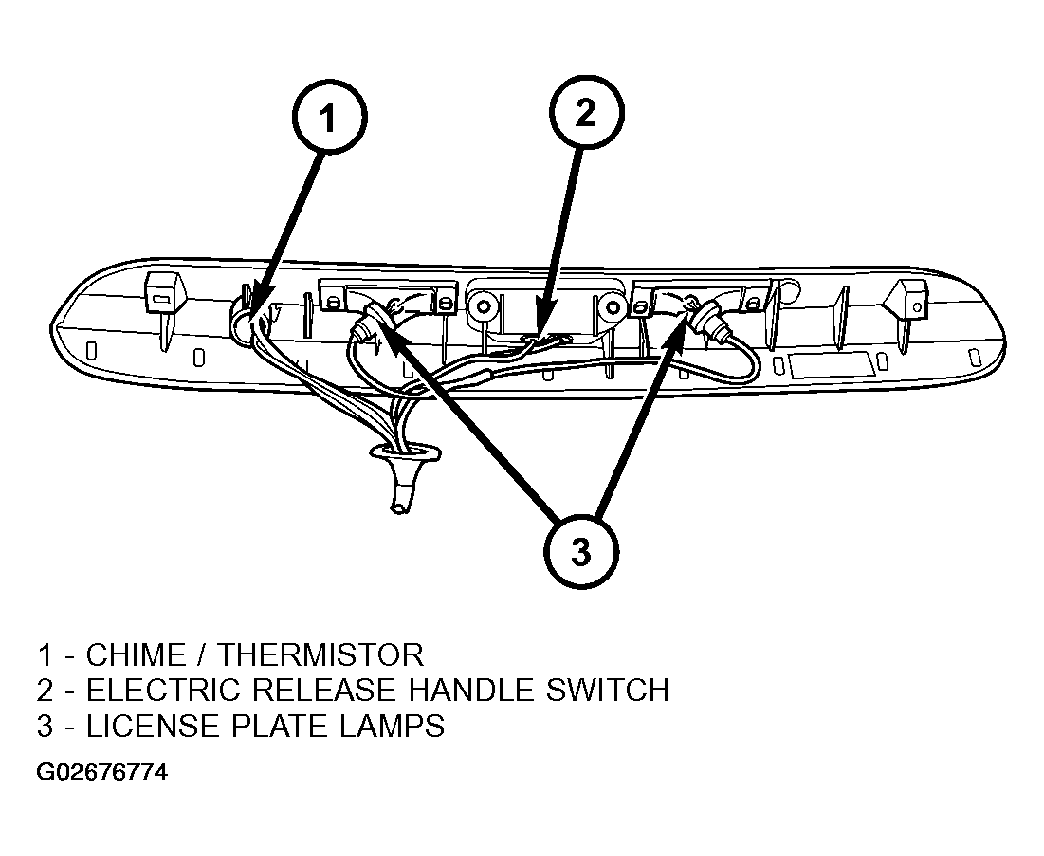

Vehicles equipped with a power liftgate utilize a chime/thermistor assembly. The chime/thermistor assembly is a small capacitor shaped electrical component mounted to the rear license plate lamp housing assembly (Fig 1 ), located just above the license plate. The chime portion of the assembly controls the audible chime sound heard at the rear of the vehicle when the power liftgate is in motion. The thermistor portion of the assembly is a temperature sensor, used by the power liftgate module.
The chime/thermistor assembly is a serviceable component. Consult your Mopar(tm) parts catalog for a specific part number.
