PCI Bus Lab Scope Pattern

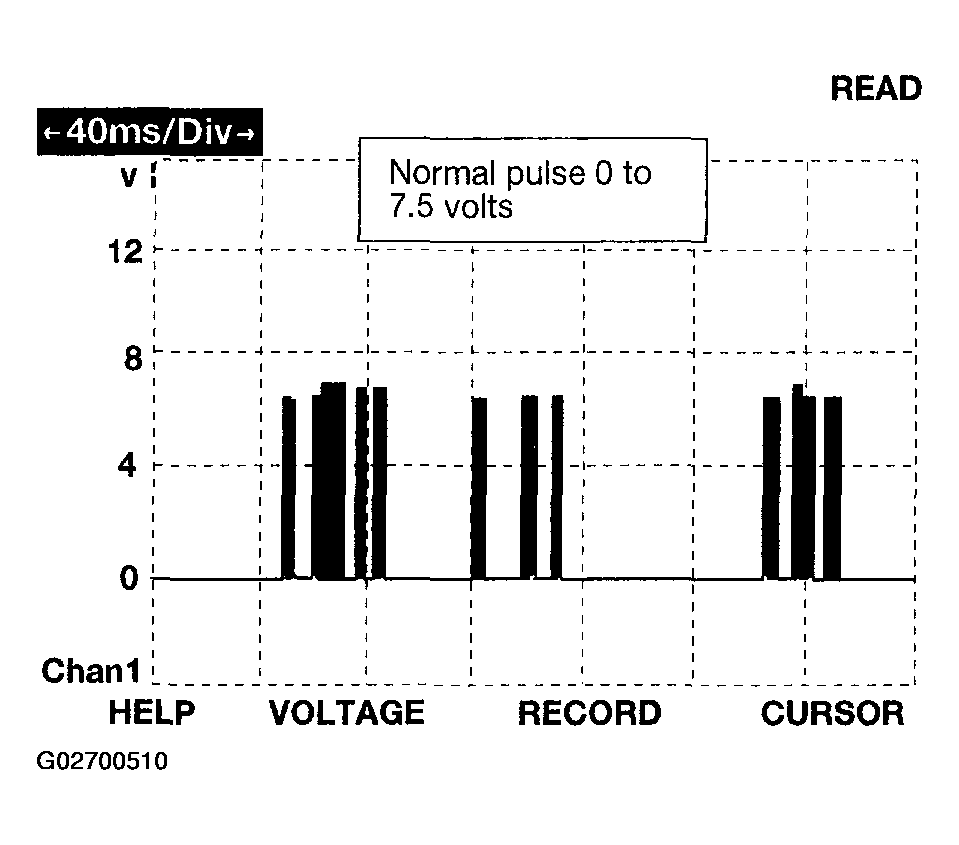

Fig 1: PCI Bus Lab Scope Pattern (1 Of 3)
G02700510Courtesy of DAIMLERCHRYSLER CORP.

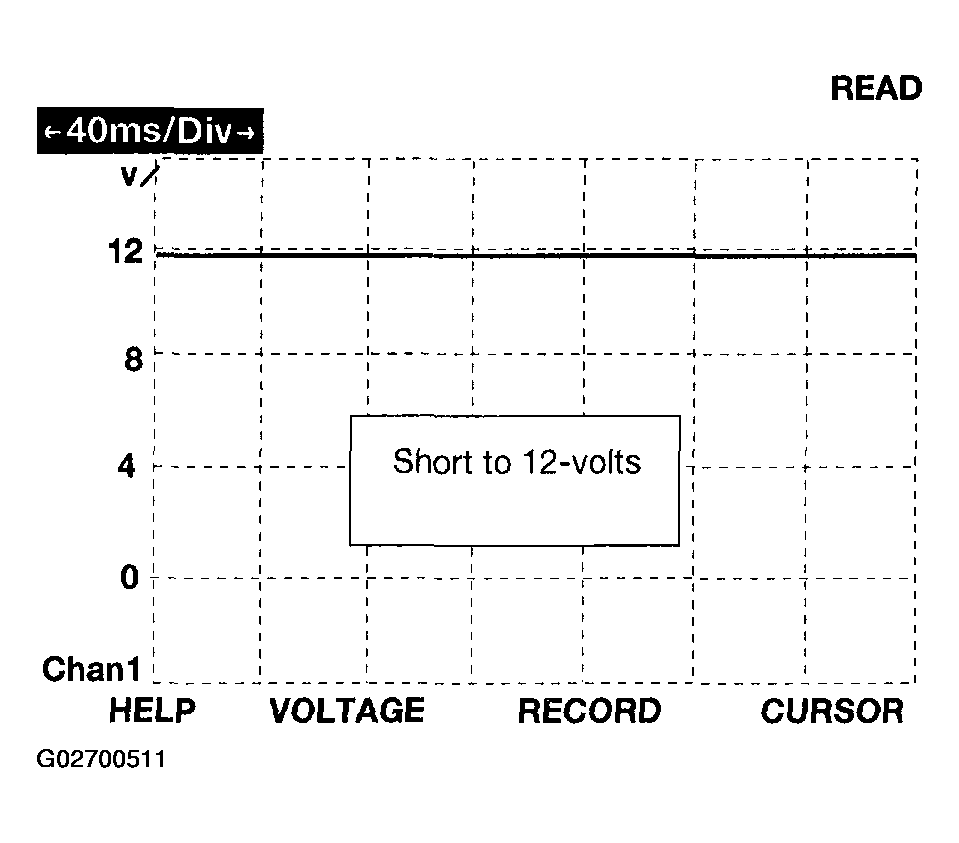

Fig 2: PCI Bus Lab Scope Pattern (2 Of 3)
G02700511Courtesy of DAIMLERCHRYSLER CORP.

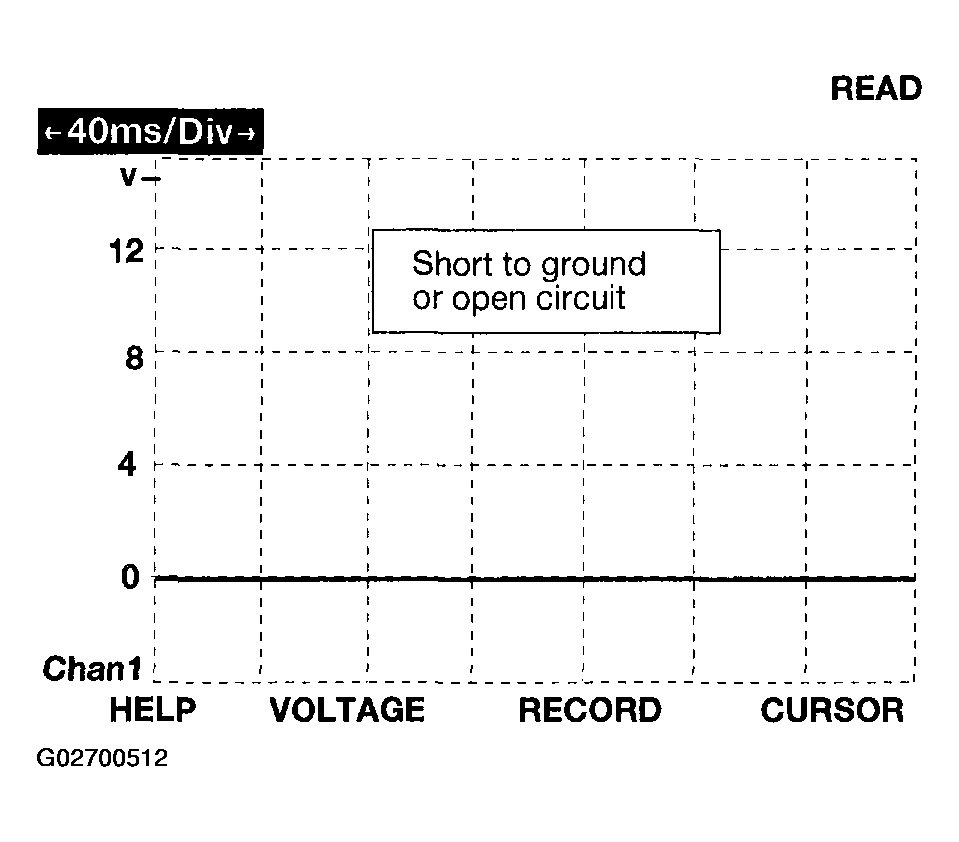

Fig 3: PCI Bus Lab Scope Pattern (3 Of 3)
G02700512Courtesy of DAIMLERCHRYSLER CORP.
