Right Power Sliding Door Control Module Connector End View (C1)

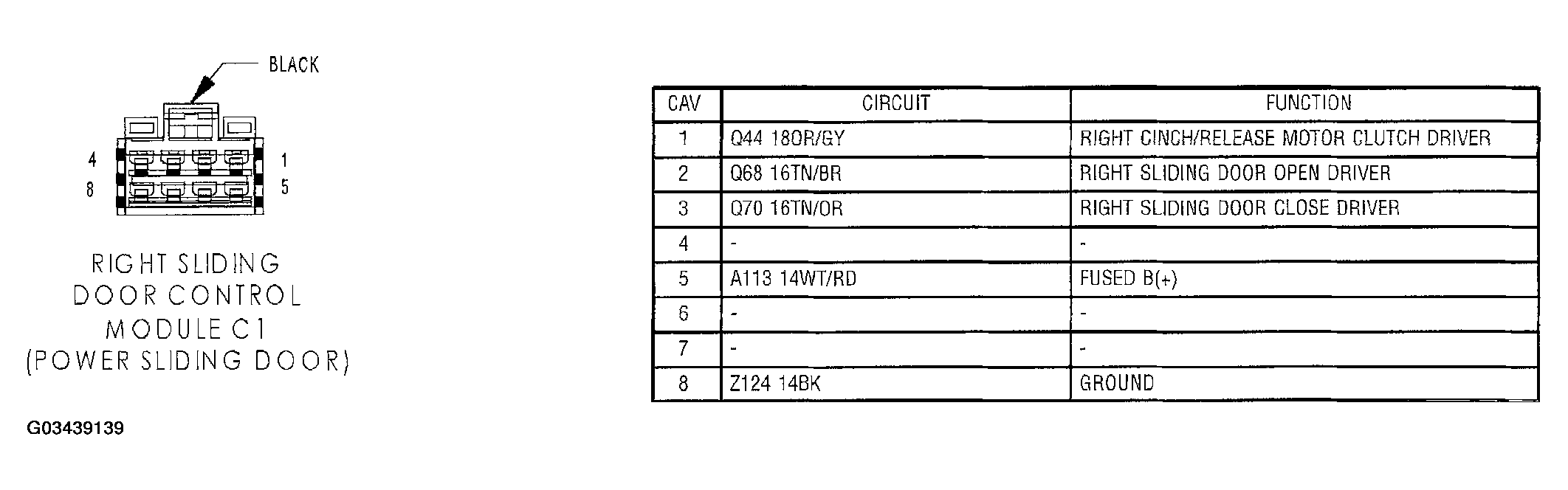

Fig 1: Right Power Sliding Door Control Module Connector End View (C1)

G03439139

Courtesy of DAIMLERCHRYSLER CORP.
