Vent Window Motor: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove D-pillar trim panel. (Refer to LEFT D-PILLAR TRIM PANEL - REMOVAL ) or (Refer to RIGHT D-PILLAR TRIM PANEL - REMOVAL ).
  3. Disconnect wire connector from power vent motor.
  4. Using a flat bladed tool, carefully lift the circular actuator link tab. Remove link from window ball socket.
  5. Remove bolts holding power vent motor to D-pillar (Fig 1).

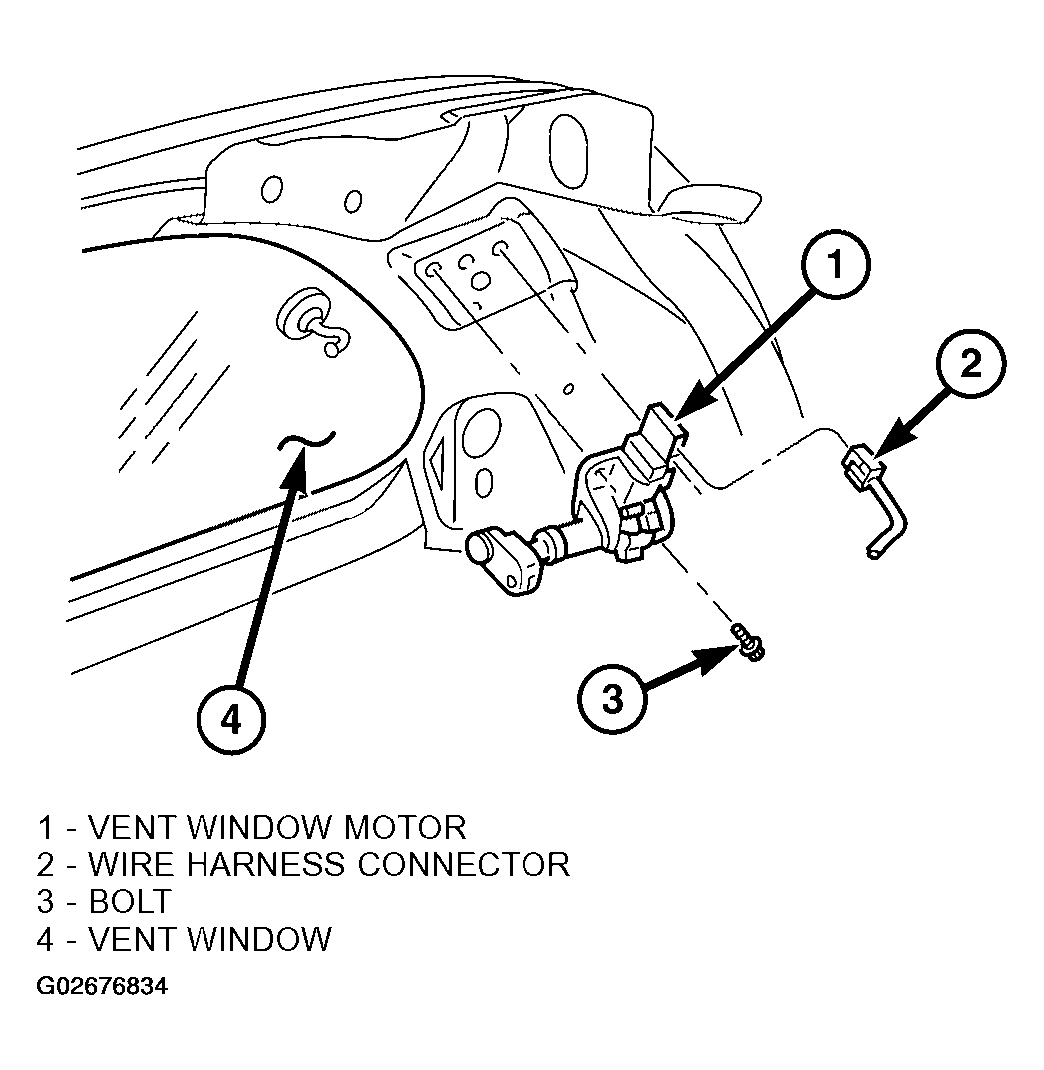

    Fig 1: Removing Vent Window Door
    G02676834Courtesy of DAIMLERCHRYSLER CORP.
