Verification Tests

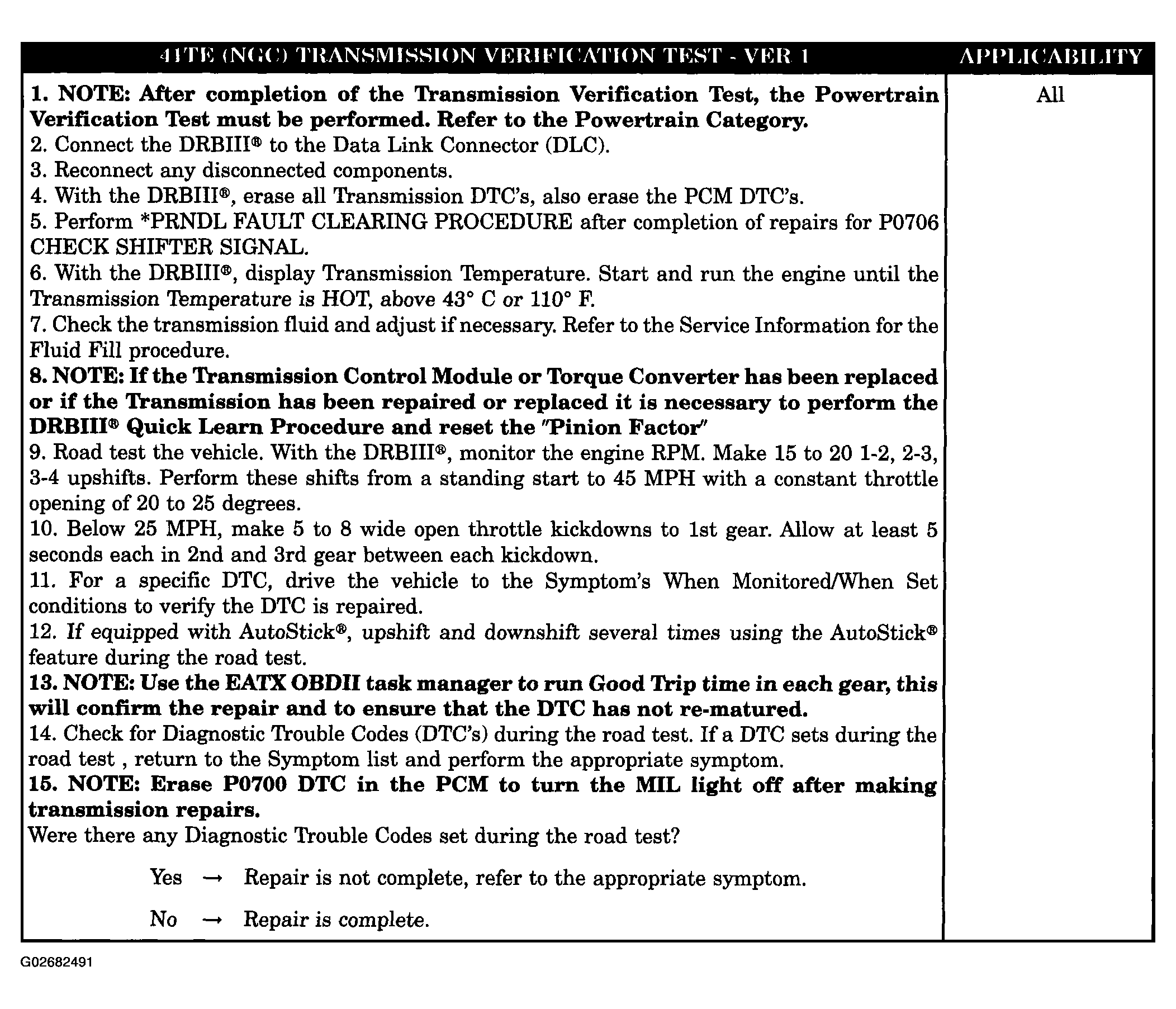

Fig 1: 41 TE (NGC) Transmission Verification Test - VER1
G02682491Courtesy of DAIMLERCHRYSLER CORP.

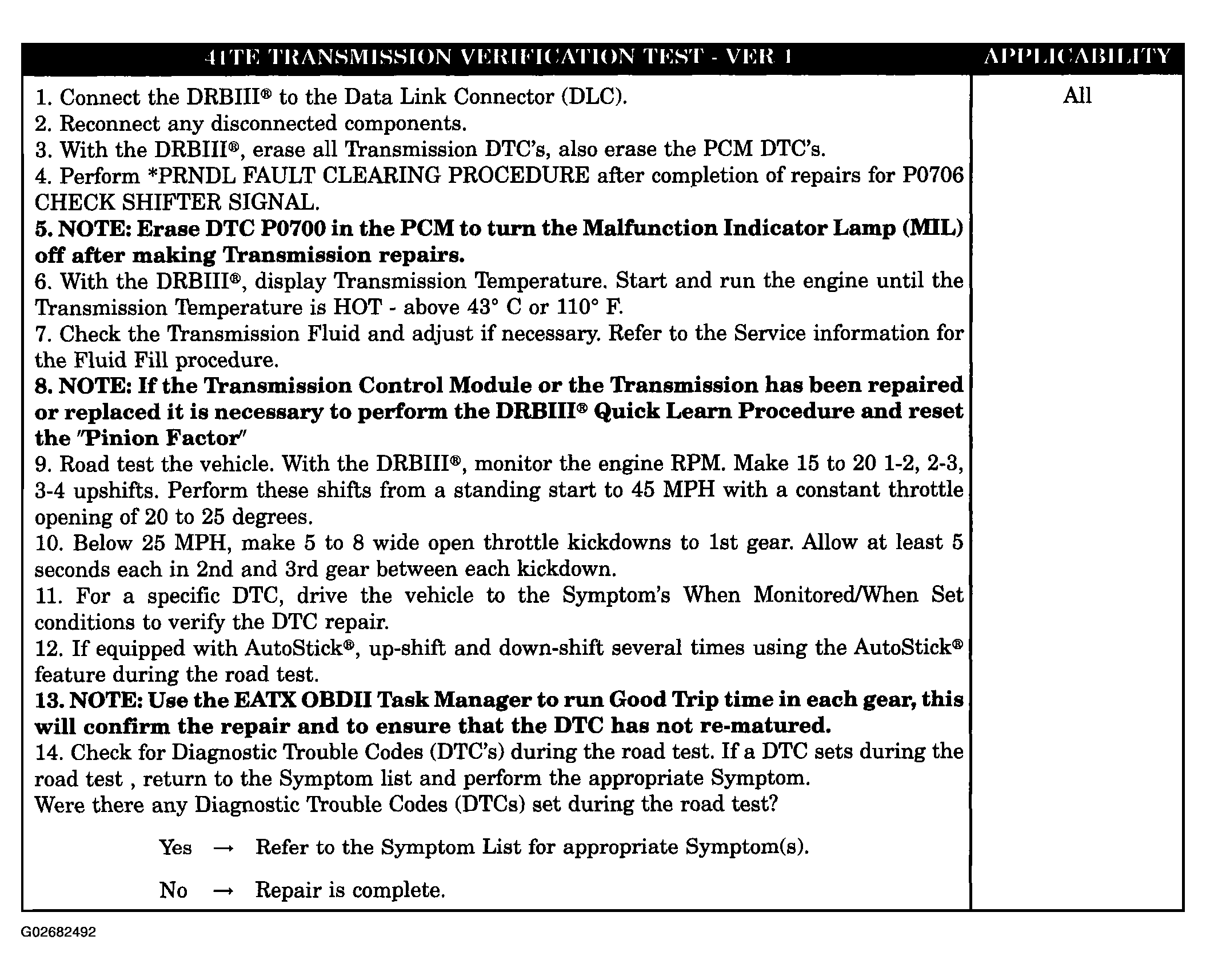

Fig 2: 41 TE Transmission Verification Test - VER1
G02682492Courtesy of DAIMLERCHRYSLER CORP.

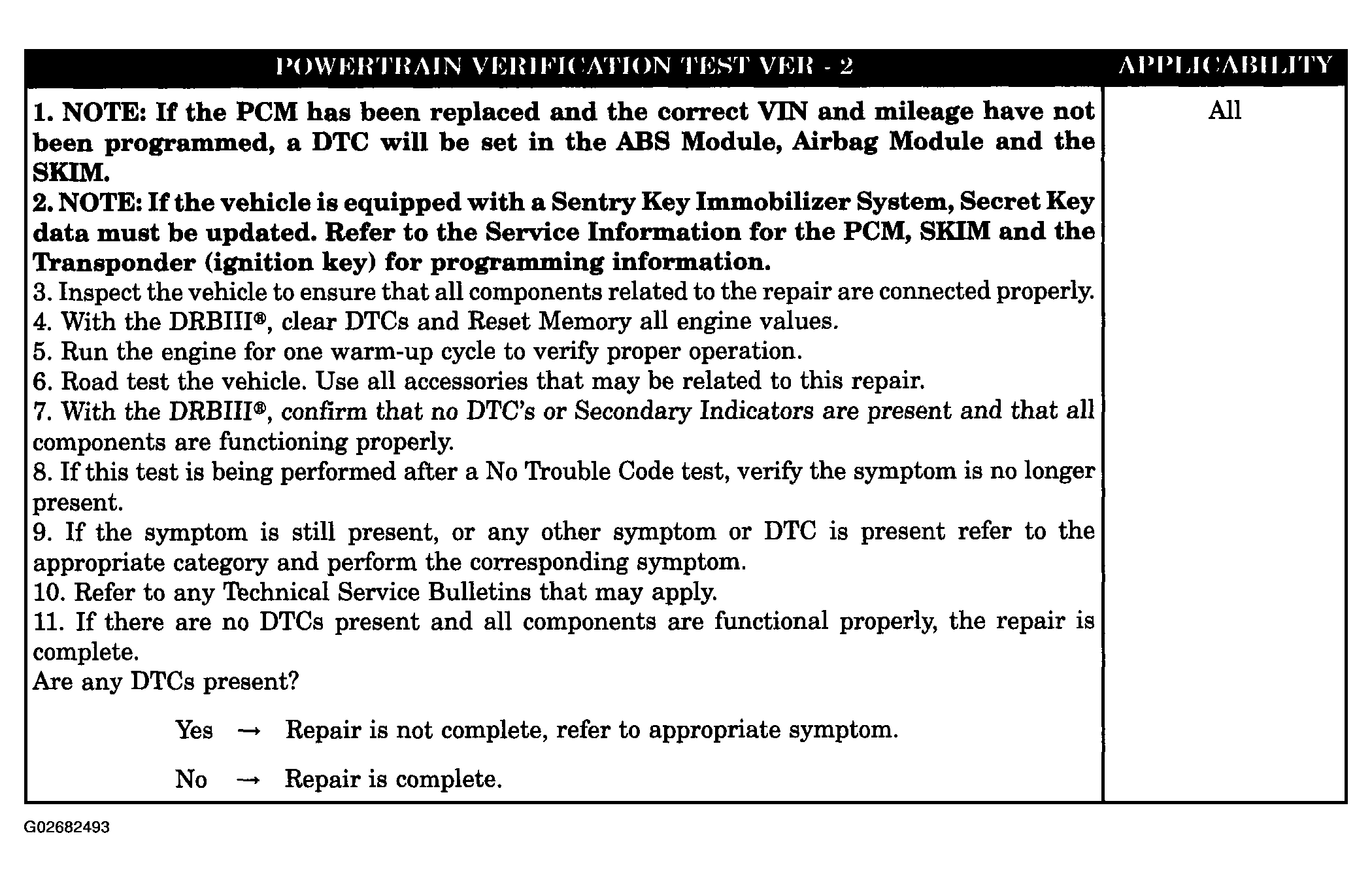

Fig 3: Powertrain Verification Test - VER2
G02682493Courtesy of DAIMLERCHRYSLER CORP.
