Integrated Power Module C9

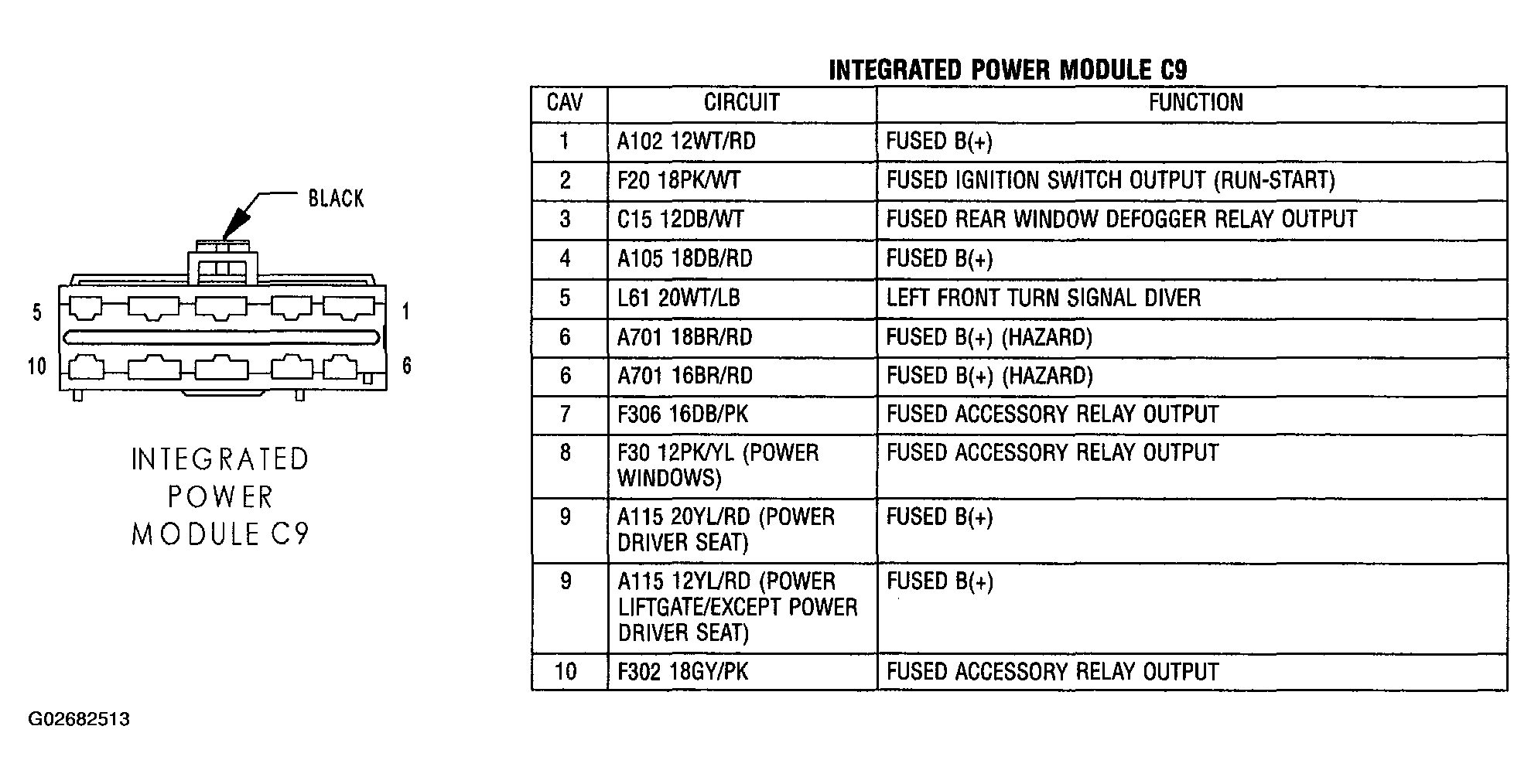

Fig 1: Identifying Integrated Power Module C9 Connector Pinouts

G02682513

Courtesy of DAIMLERCHRYSLER CORP.
