Integrated Power Module C7

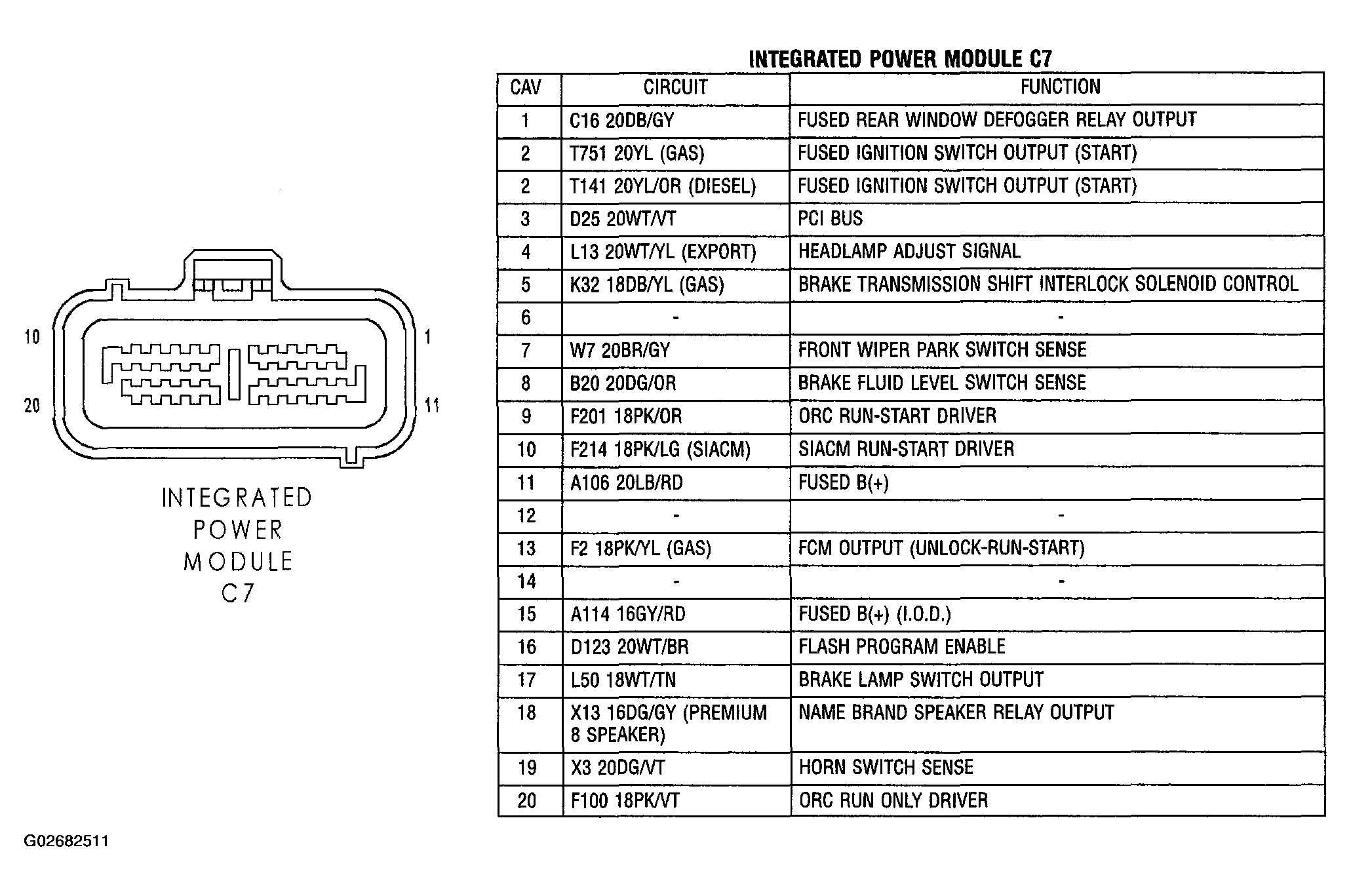

Fig 1: Identifying Integrated Power Module C7 Connector Pinouts

G02682511

Courtesy of DAIMLERCHRYSLER CORP.
