Integrated Power Module C6

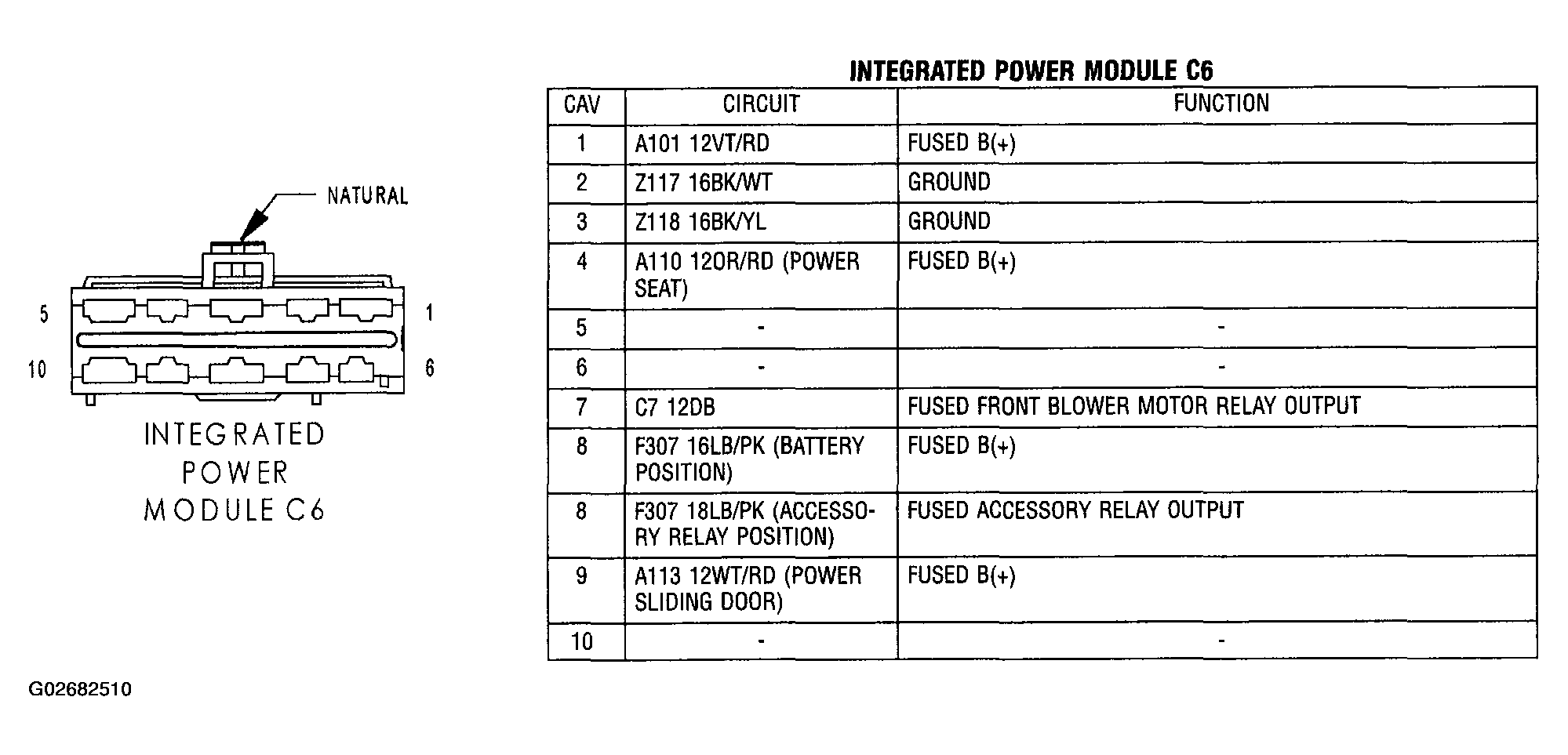

Fig 1: Identifying Integrated Power Module C6 Connector Pinouts
G02682510Courtesy of DAIMLERCHRYSLER CORP.
