Integrated Power Module C2

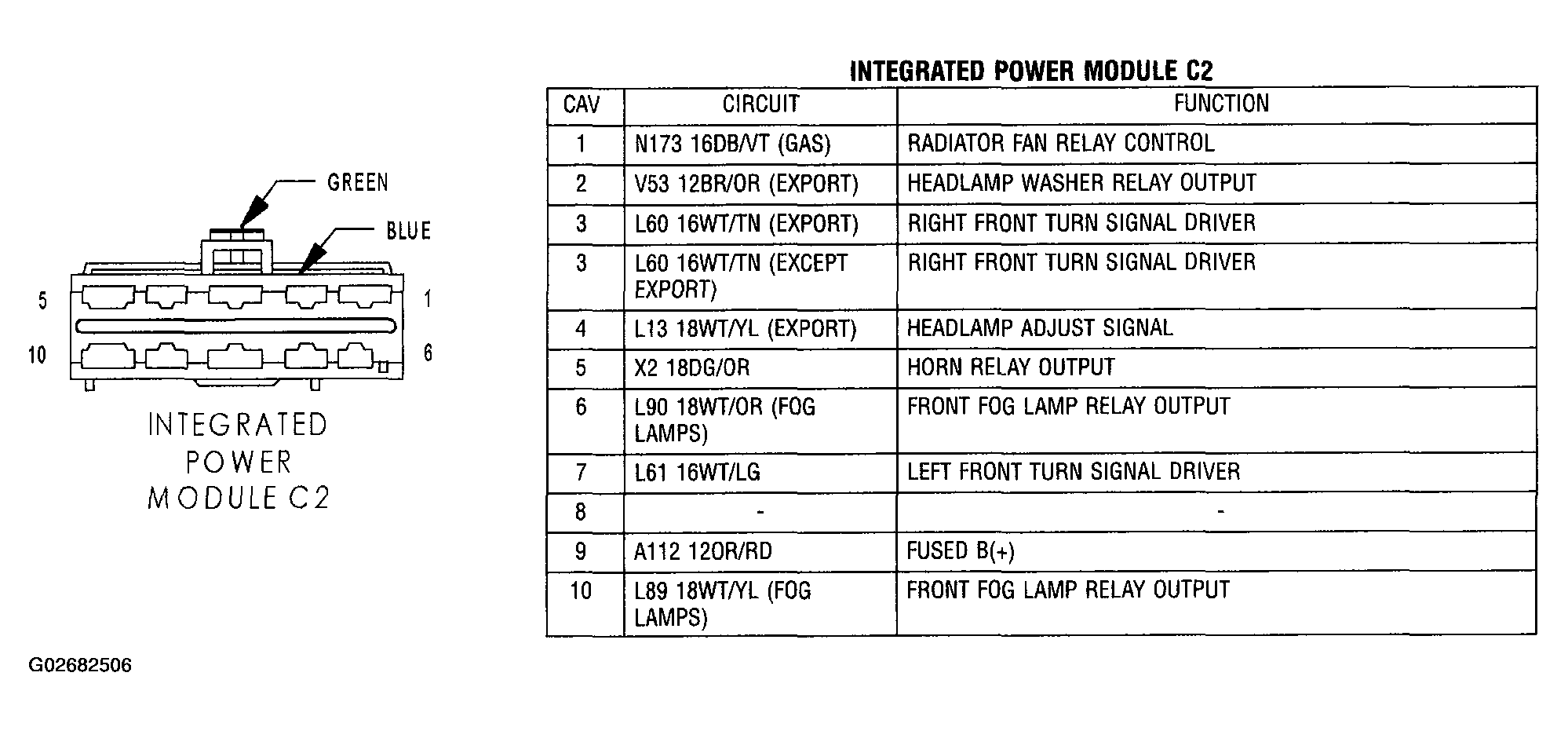

Fig 1: Identifying Integrated Power Module C2 Connector Pinouts

G02682506

Courtesy of DAIMLERCHRYSLER CORP.
