Battery Tray: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the battery from the vehicle.
  3. Remove the battery tray retaining fasteners (Fig 1 ).

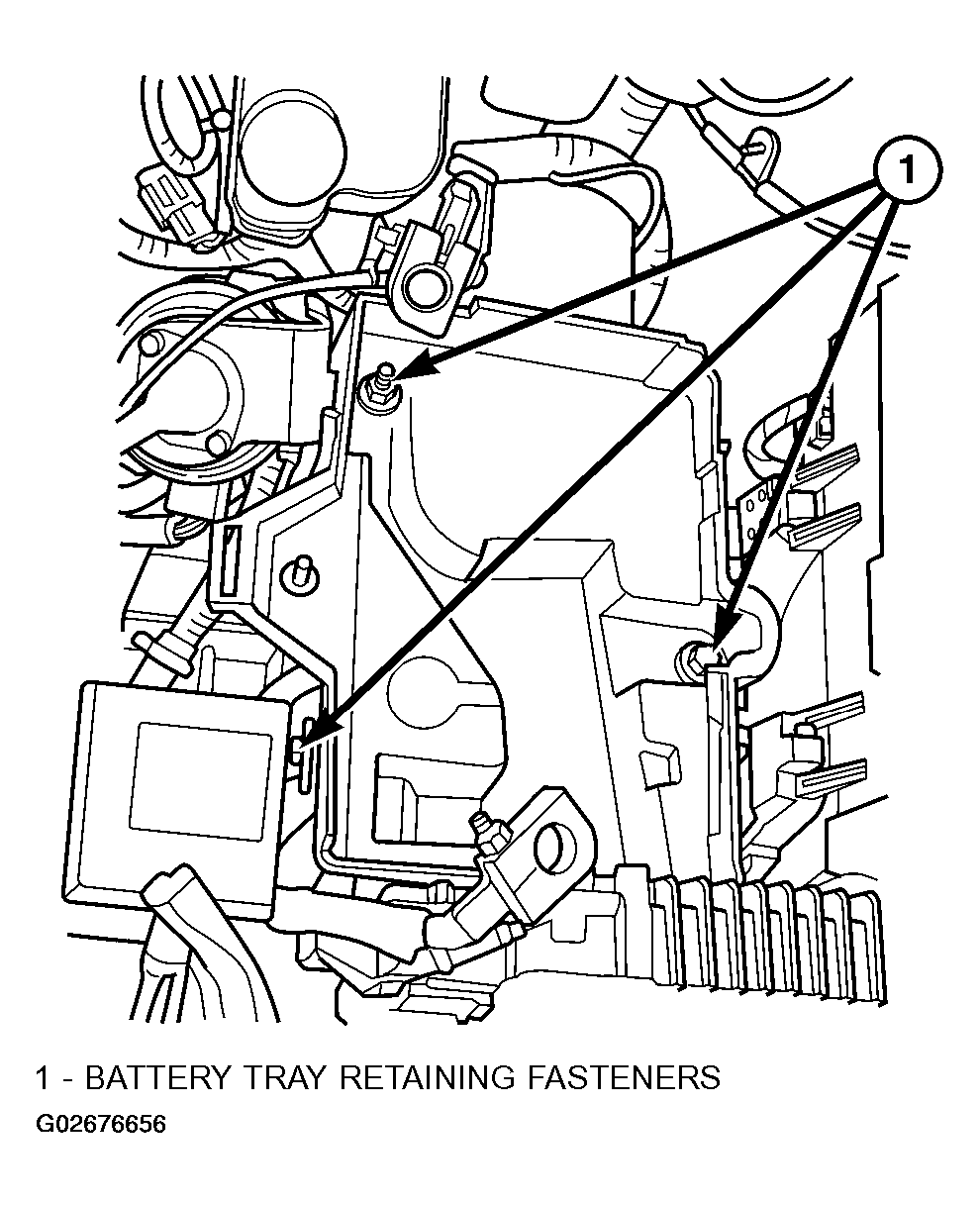

    Fig 1: Identifying Battery Tray Position And Orientation
    G02676656Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull battery tray up far enough to disconnect the engine vacuum harness hose from the battery tray mounted, vacuum reservoir.
  5. Remove the battery tray from the vehicle.
