Transmission Control Module (3.3L/3.8L) Connector End View

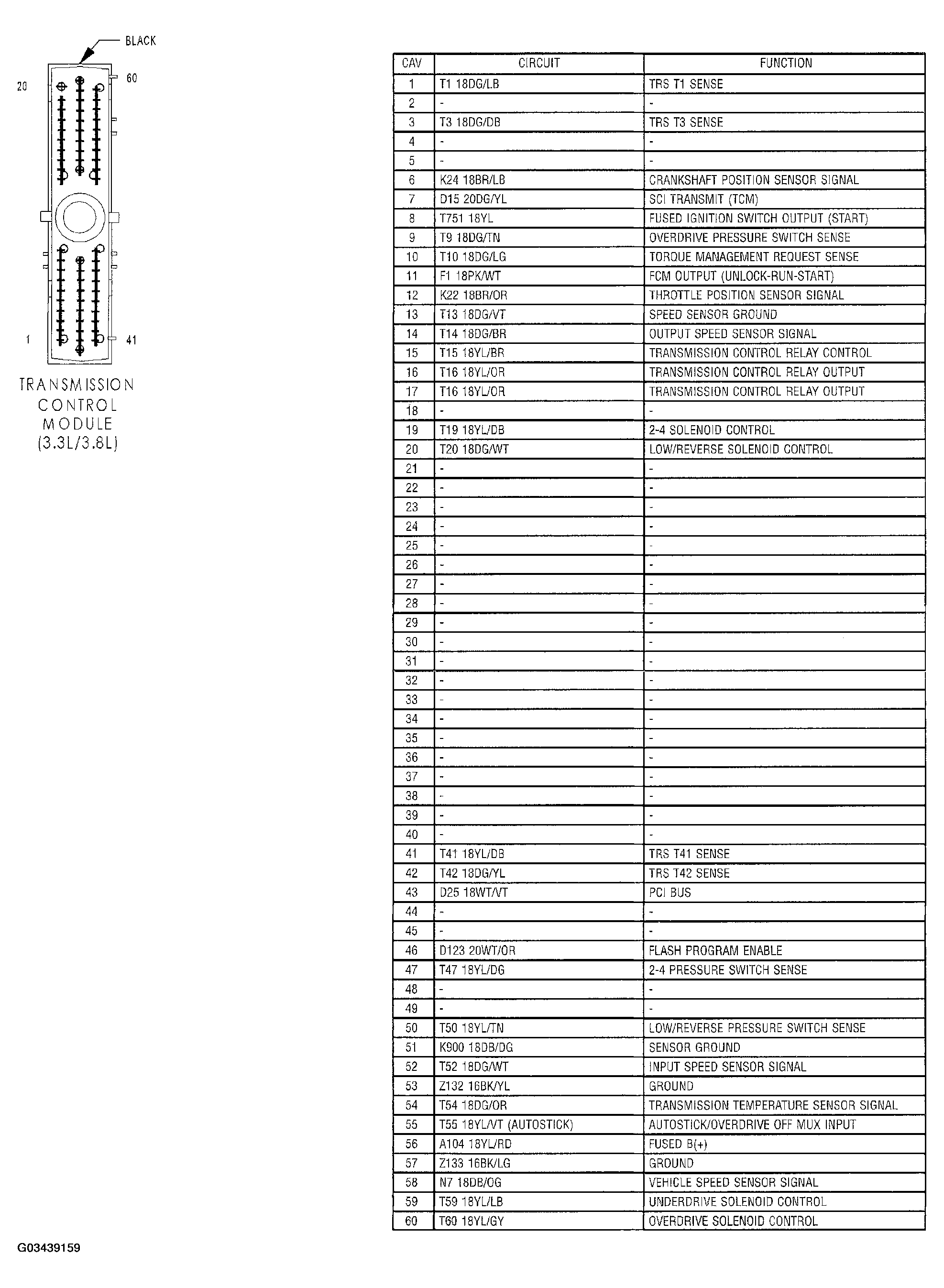

Fig 1: Transmission Control Module (3.3L/3.8L) Connector End View

G03439159

Courtesy of DAIMLERCHRYSLER CORP.
