Power Liftgate Module Connector End View (C2)

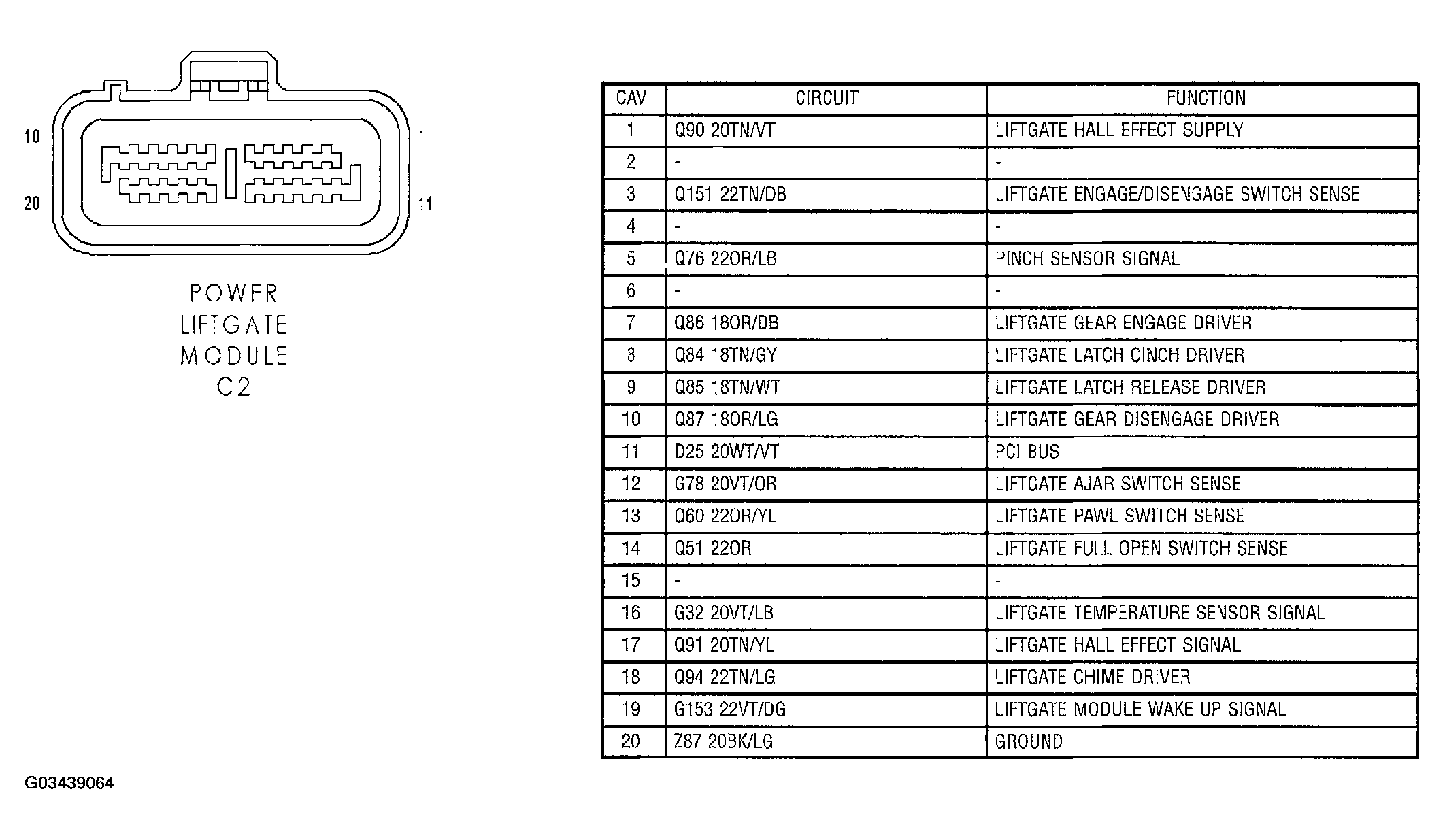

Fig 1: Power Liftgate Module Connector End View (C2)

G03439064

Courtesy of DAIMLERCHRYSLER CORP.
