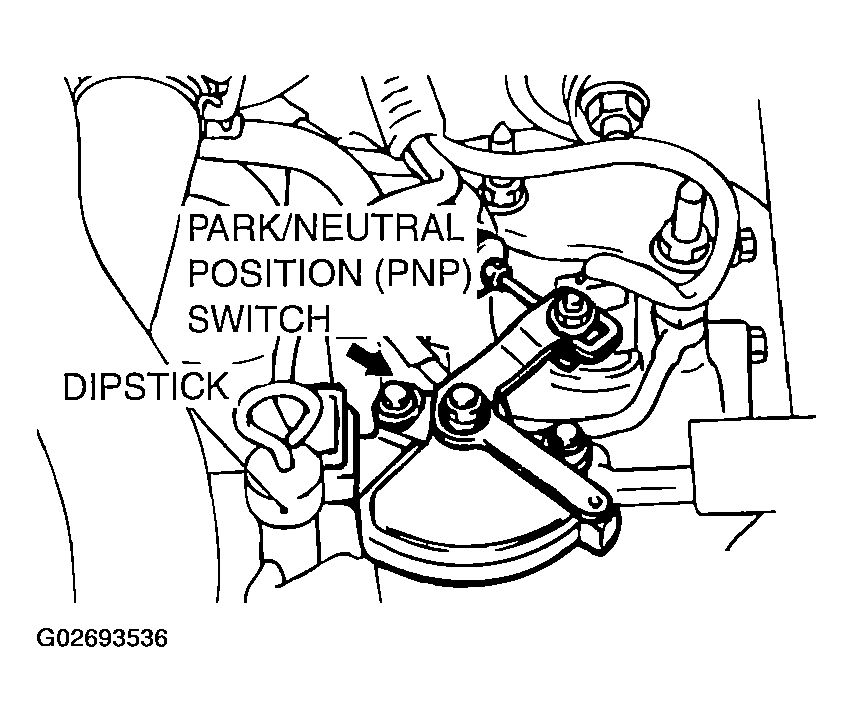

Park/Neutral Position Switch Continuity Check

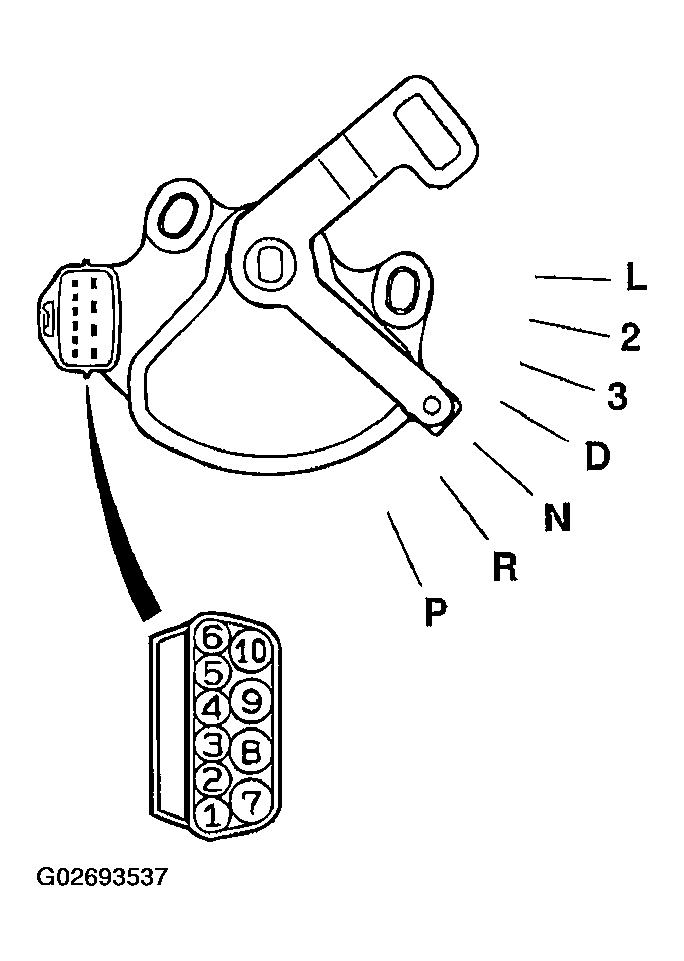

PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK
| ITEM | TERMINAL CONNECTION OF TESTER | SPECIFIED CONDITION |
|---|---|---|
| P | 3-8,9-10 | Less than 2 ohms. |
| R | 7-8 | Less than 2 ohms. |
| N | 4-8,9-10 | Less than 2 ohms. |
| D | 1-8 | Less than 2 ohms. |
| 3 | 5-8 | Less than 2 ohms. |
| 2 | 2-8 | Less than 2 ohms. |
| L | 6-8 | Less than 2 ohms. |
NOTE:
For vehicles with sport mode, four positions (P, R, N, D) are used.
