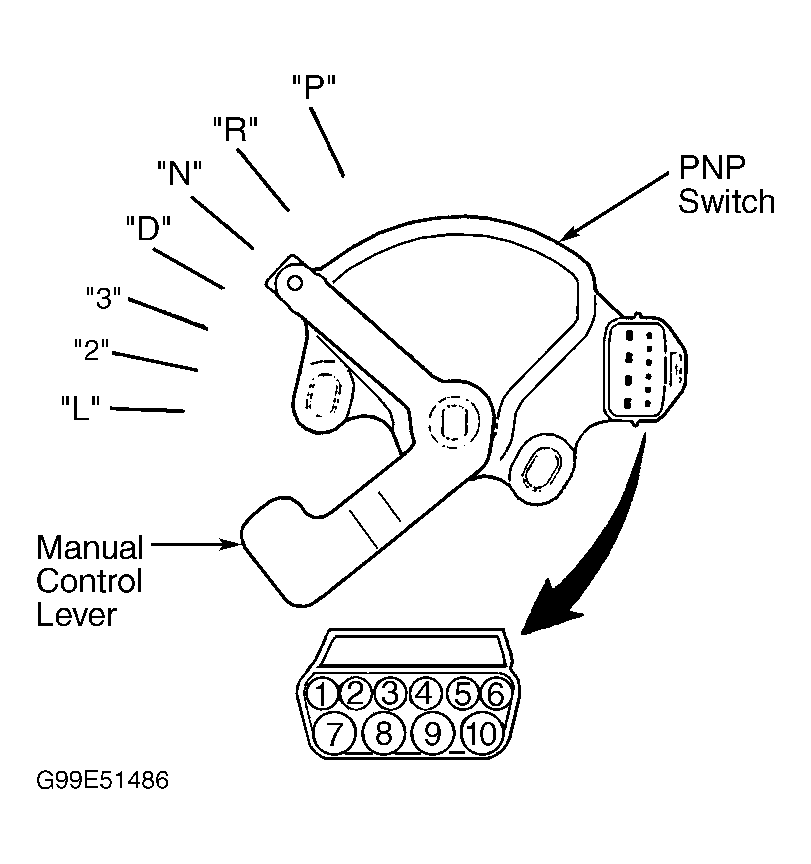

Park/Neutral Position Switch
Disconnect Park/Neutral Position (PNP) switch. Using DVOM, measure resistance between specified terminals with switch in positions specified. See PARK/NEUTRAL POSITION SWITCH TEST table. If readings are not as specified, replace PNP switch. See REMOVAL & INSTALLATION - SEBRING COUPE & STRATUS COUPE article.
PARK/NEUTRAL POSITION SWITCH TEST
| Switch Position | (1) Less Than 2 Ohms Between Terminals No. | ||
|---|---|---|---|
| P | 3 & 8; 9 & 10 | ||
| R | 7 & 8 | ||
| N | 4 & 8; 9 & 10 | ||
| D | 1 & 8 | ||
| 3 | 5 & 8 | ||
| 2 | 2 & 8 | ||
| L | 6 & 8 | ||
|
|||
