Construction Diagram: Notes

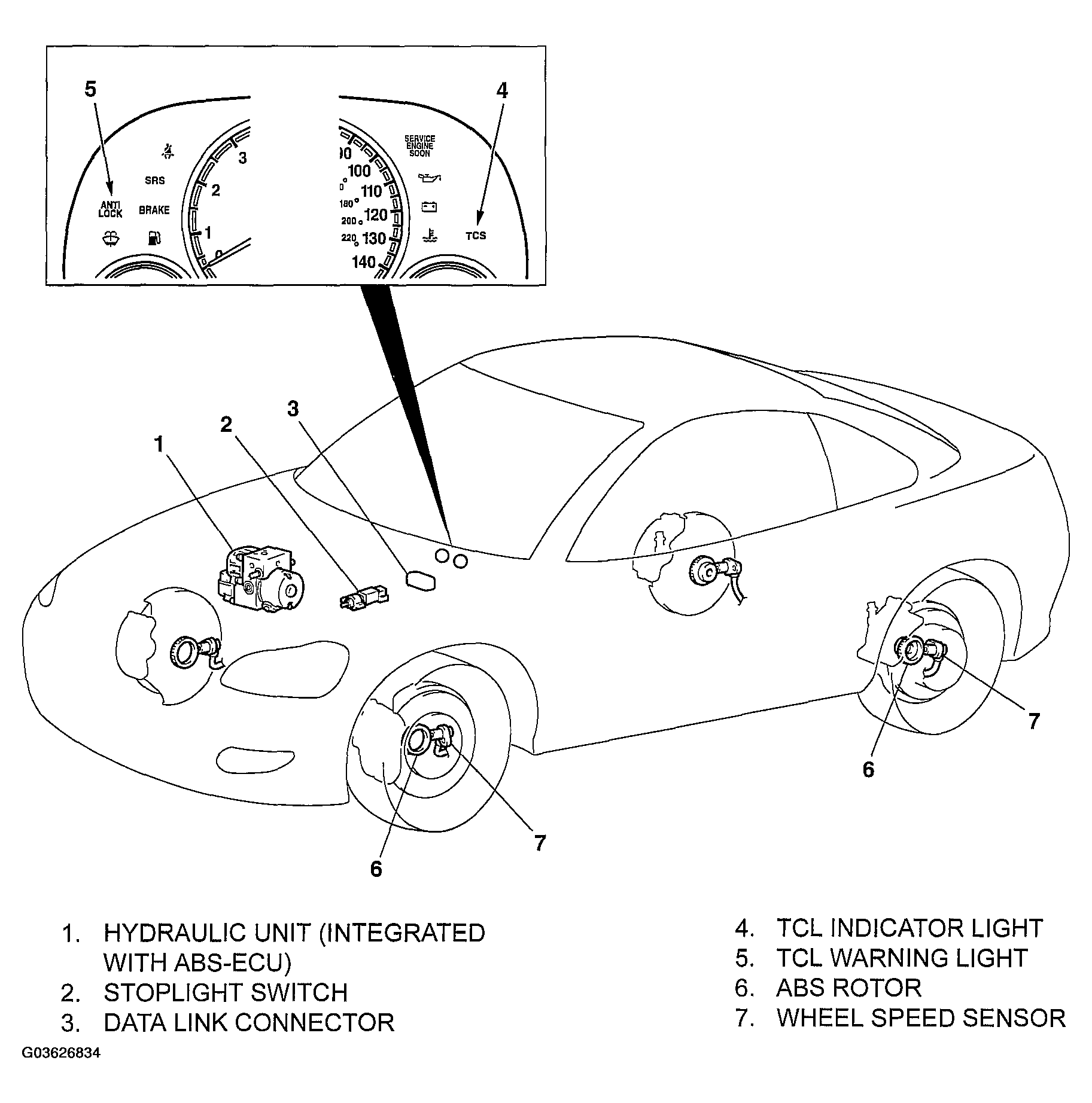

Fig 1: Identifying Traction Control System (TCL) Components

G03626834

Courtesy of DAIMLERCHRYSLER CORP.
