Removal And Installation: Notes

WARNING: Before removing the steering gear box, refer to AIR BAG RESTRAINT SYSTEMS - COUPE article. Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

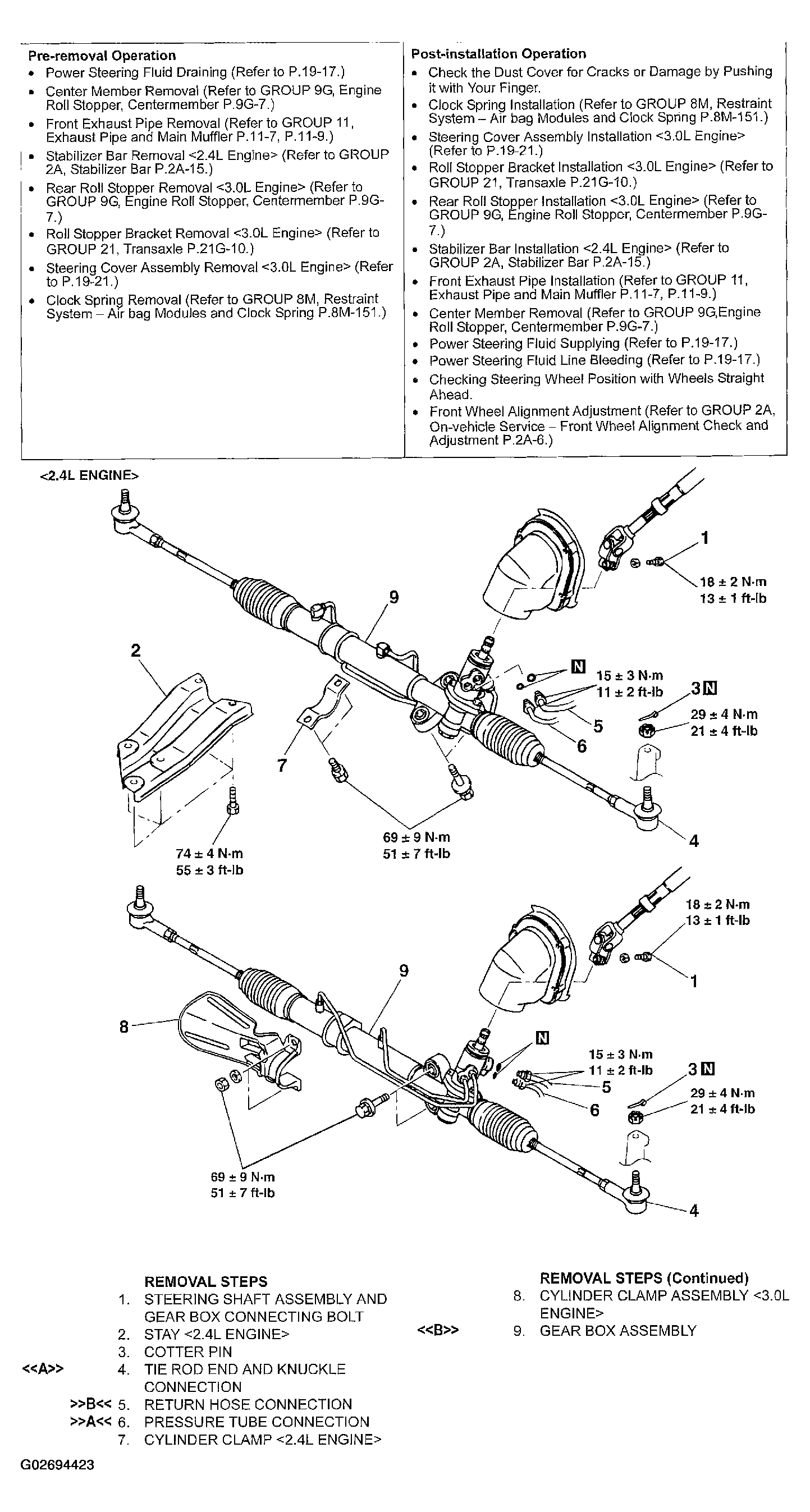

Fig 1: Removing & Installing Power Steering Gear Box Assembly

Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tools:

MB990228 or MB991006: Preload Socket
MB991113 or MB990635: Steering Linkage Puller
