Removal And Installation: Notes
CAUTION:
*: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.
Pre-removal Operation
- Transmission Fluid Draining (Refer to MAINTENANCE SERVICE - AUTOMATIC TRANSMISSION FLUID .)
- Under Cover Removal
- Battery and Battery Tray Removal
- Air Cleaner Assembly Removal (Refer to AIR CLEANER .)
Post-installation Operation
- Air Cleaner Assembly Installation (Refer to AIR CLEANER .)
- Battery and Battery Tray Installation
- Under Cover Installation
- Transmission Fluid Supplying (Refer to MAINTENANCE SERVICE - AUTOMATIC TRANSMISSION FLUID .)
- Selector Lever Operation Check (Refer to SELECTOR LEVER OPERATION CHECK .)
- Speedometer Operation Check (Refer to Combination Meter - On-Vehicle Service - Speedometer Check ON-VEHICLE SERVICE .)

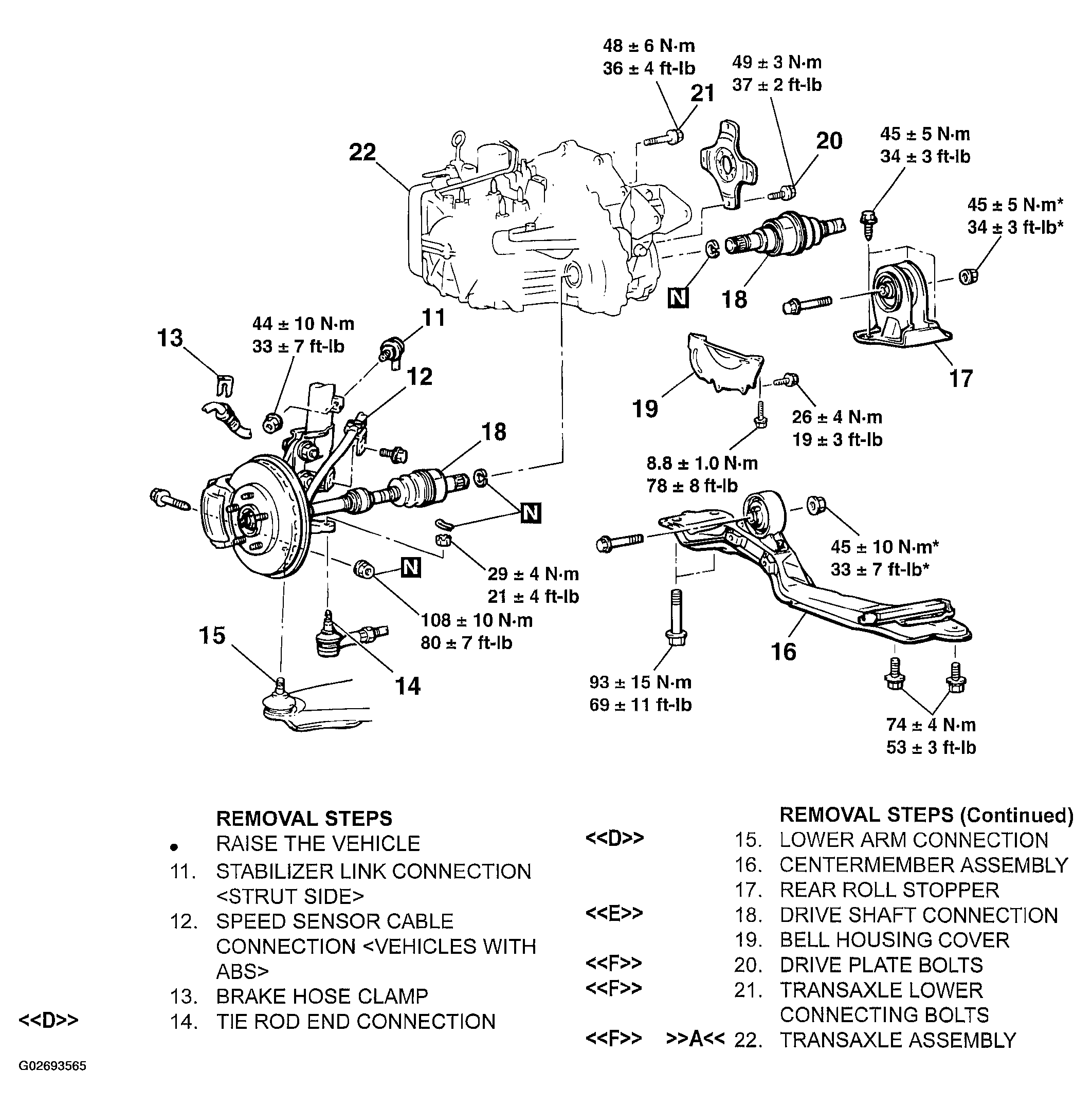

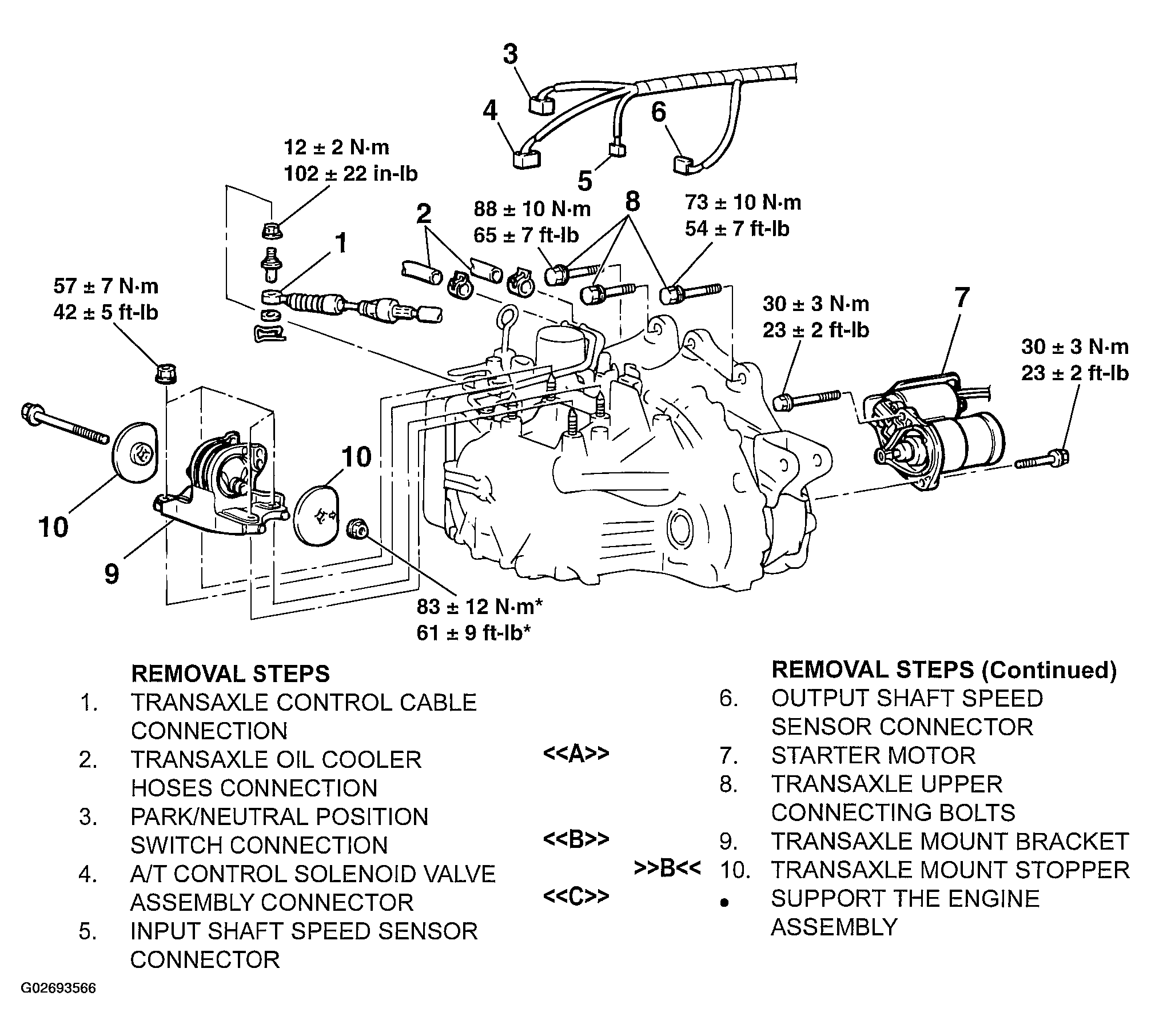

< 2.4L ENGINE >
CAUTION:
*: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.
Required Special Tools:
- MB991113: Steering Linkage puller
- MB991453: Engine Hanger Assembly
- MB991454: Engine Hanger Balancer (a part of MB991453 Engine Hanger Assembly)
- MB991895: Engine Hanger
- MZ203827: Engine Lifter
CAUTION:
*: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

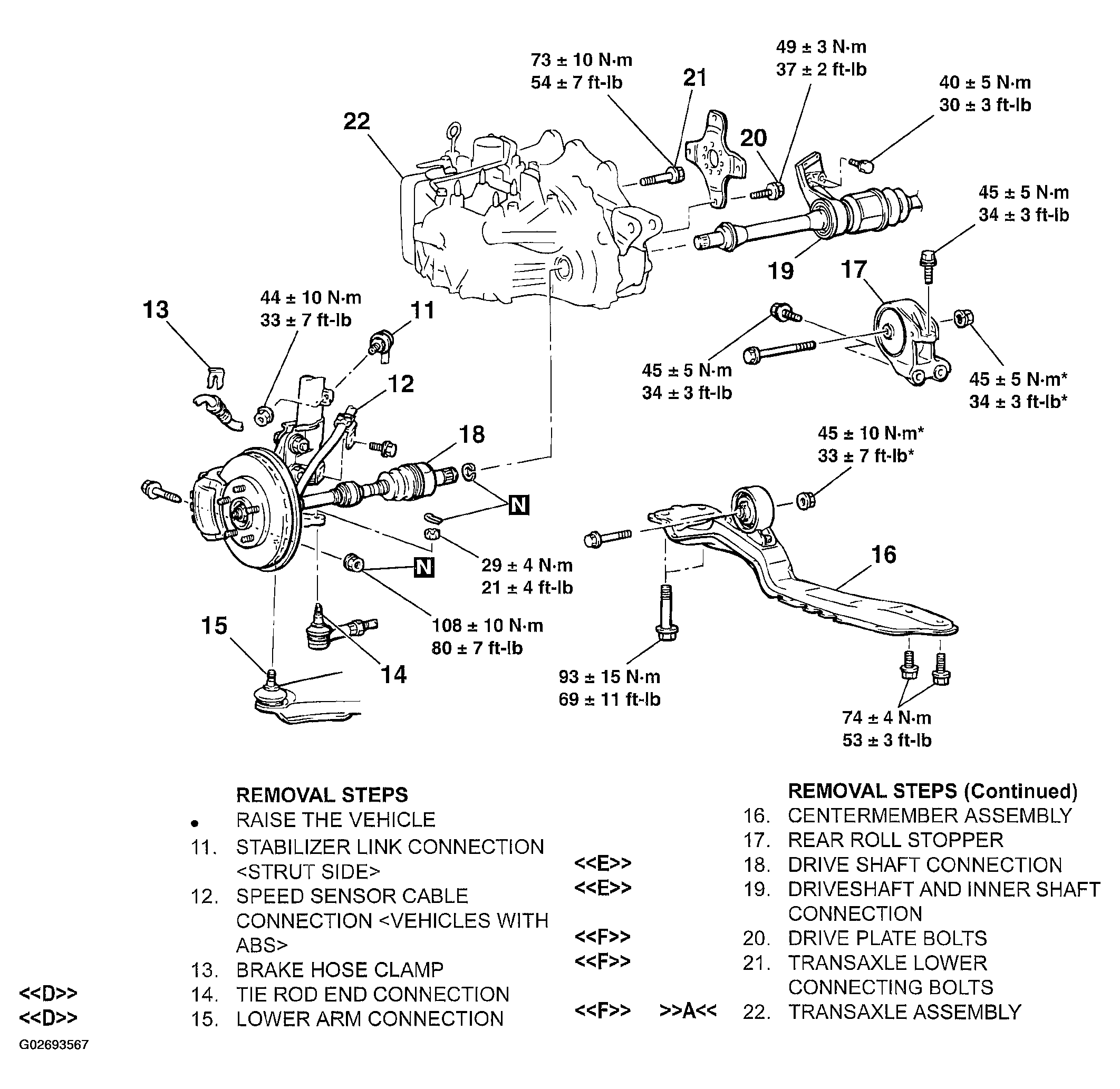

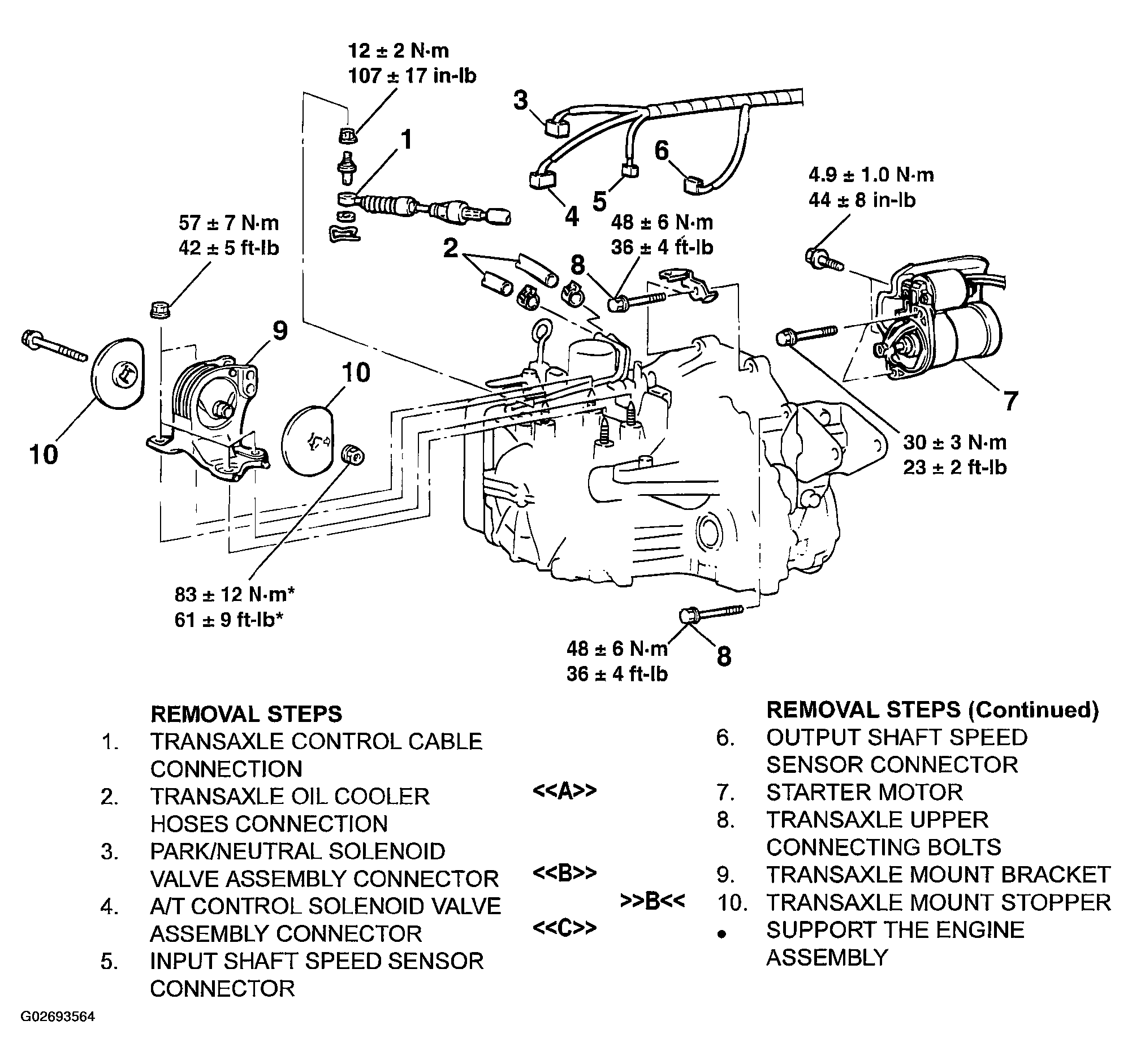

< 3.0L ENGINE >
CAUTION:
*: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.
Required Special Tools:
- MB991113: Steering Linkage puller
- MB991453: Engine Hanger Assembly
- MB991454: Engine Hanger Balancer (a part of MB991453 Engine Hanger Assembly)
- MB991895: Engine Hanger
- MZ203827: Engine Lifter
