Transaxle Control Cable Adjustment
- Remove the battery and battery tray.
- Move the selector lever to the "N" position.

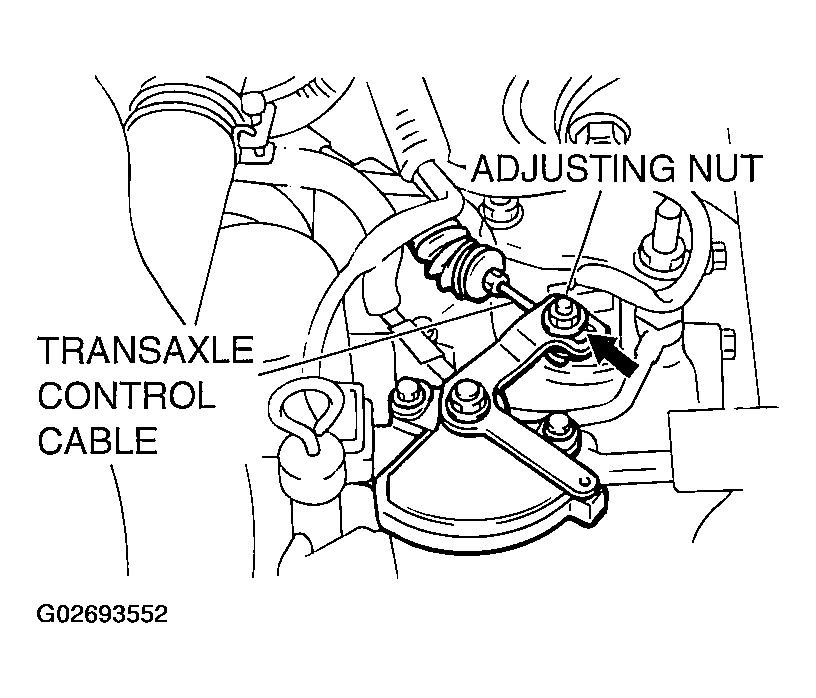

- Loosen the upper control lever adjusting nut.
- Gently push the transaxle control cable in the direction of the arrow, and then tighten the adjusting nut.
Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
- Check that the transaxle shifts to the correct range corresponding to the position of the selector lever, and that it functions correctly in that range.
- Install the battery and battery tray.
