Key Interlock Mechanism Check

Perform the following inspection.

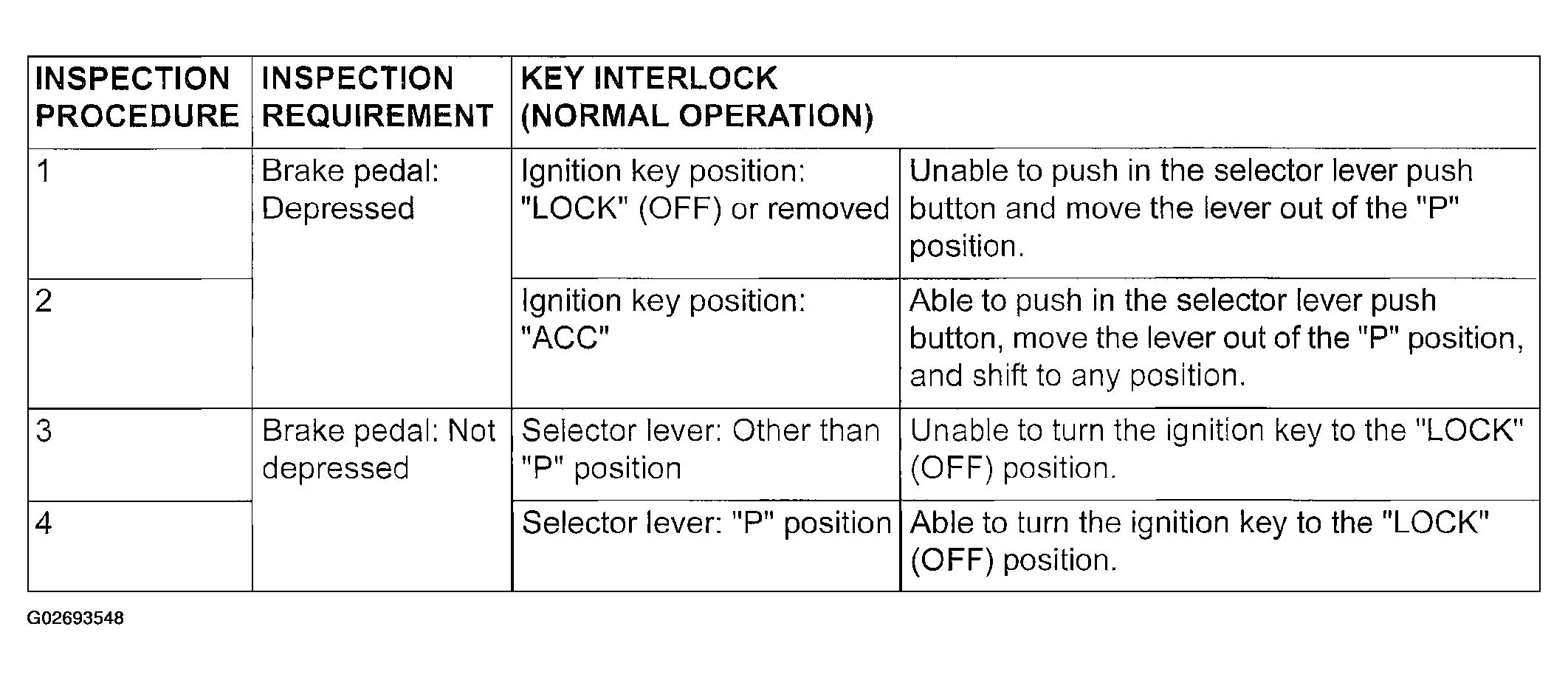

Fig 1: Key Interlock Mechanism Inspection Procedure
Courtesy of DAIMLERCHRYSLER CORP.
When any of the above checks are not normal, adjust the key interlock cable by following procedure.
1. Remove the floor console. (Refer to FLOOR CONSOLE ASSEMBLY .)
2. Shift the selector lever to "P" position.
3. Turn the ignition key to the "LOCK" (OFF) position.
4. Loosen the locking nut of the key interlock cable.
5. Push the cable joint on the lock cam gently toward the arrow until the cable stops. Tighten the locking nut.
  Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)

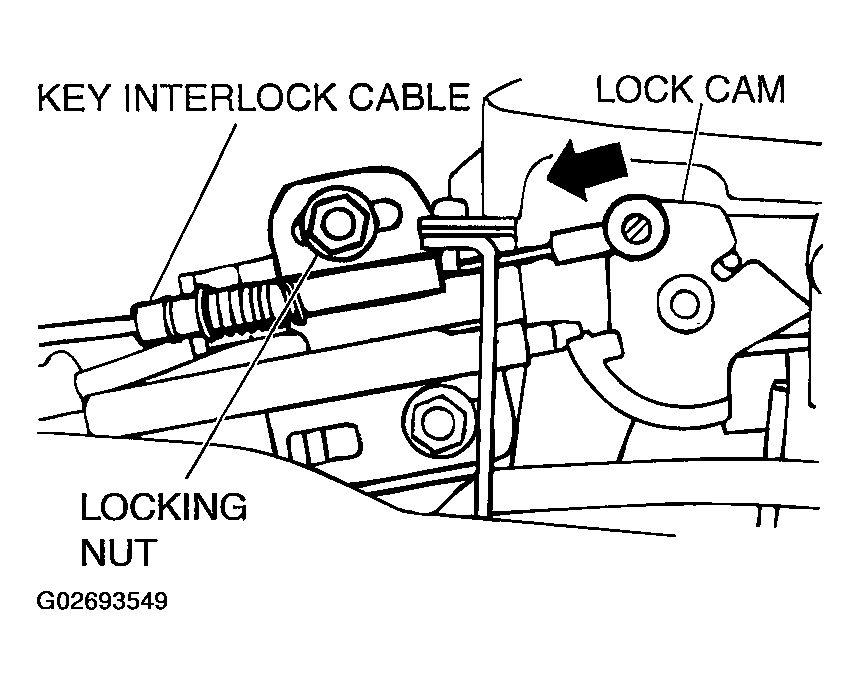

  Fig 2: Identifying Key Interlock Mechanism
  Courtesy of DAIMLERCHRYSLER CORP.
6. Install the floor console. (Refer to FLOOR CONSOLE ASSEMBLY .)
After adjusting, check the operation once more. If the operation is still incorrect, replace the key interlock cable. (Refer to A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS .)
