A/T Control Component Layout
A/T Control Component Layout

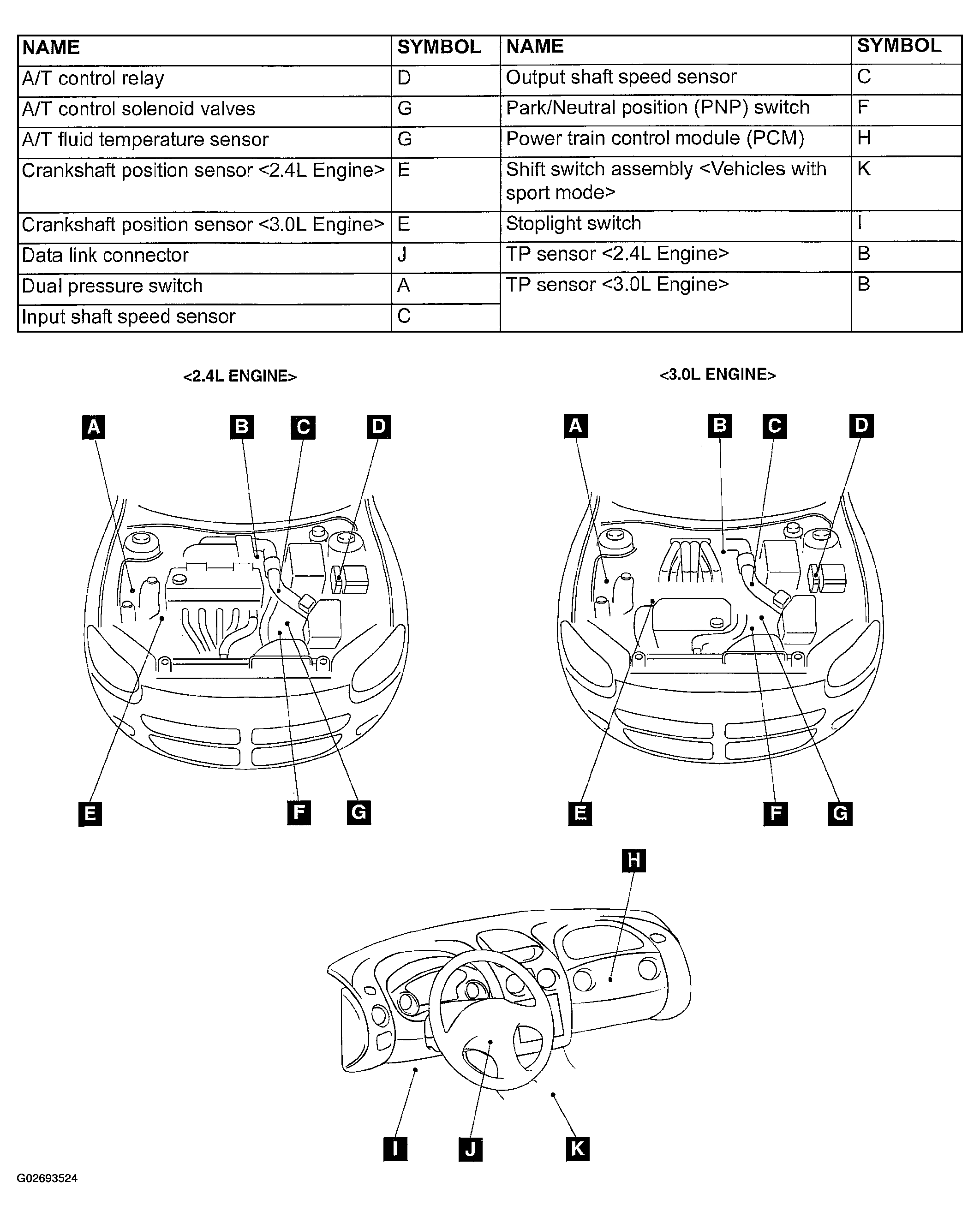

Fig 1: Locating Automatic Transaxle Control Components (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

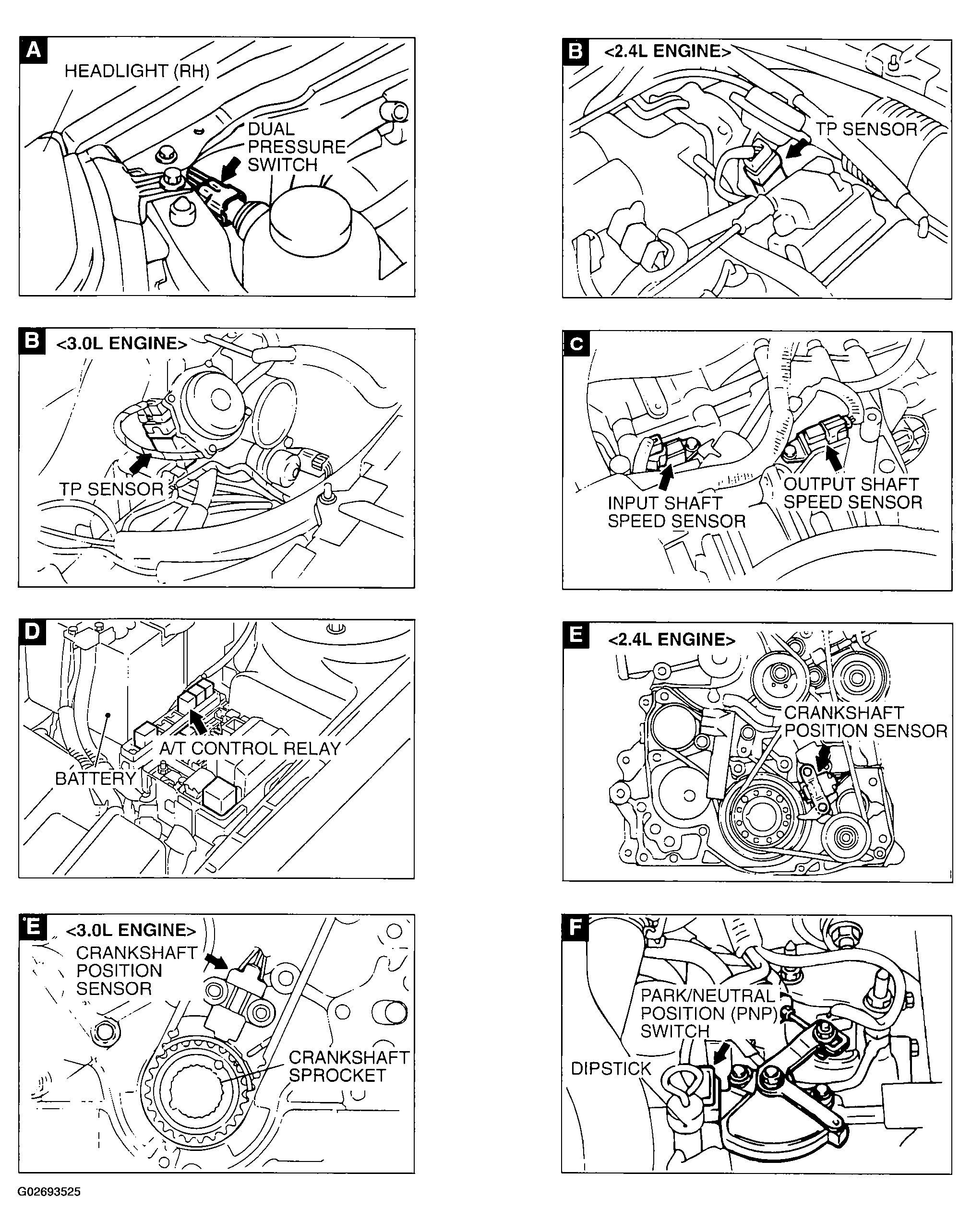

Fig 2: Locating Automatic Transaxle Control Components (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

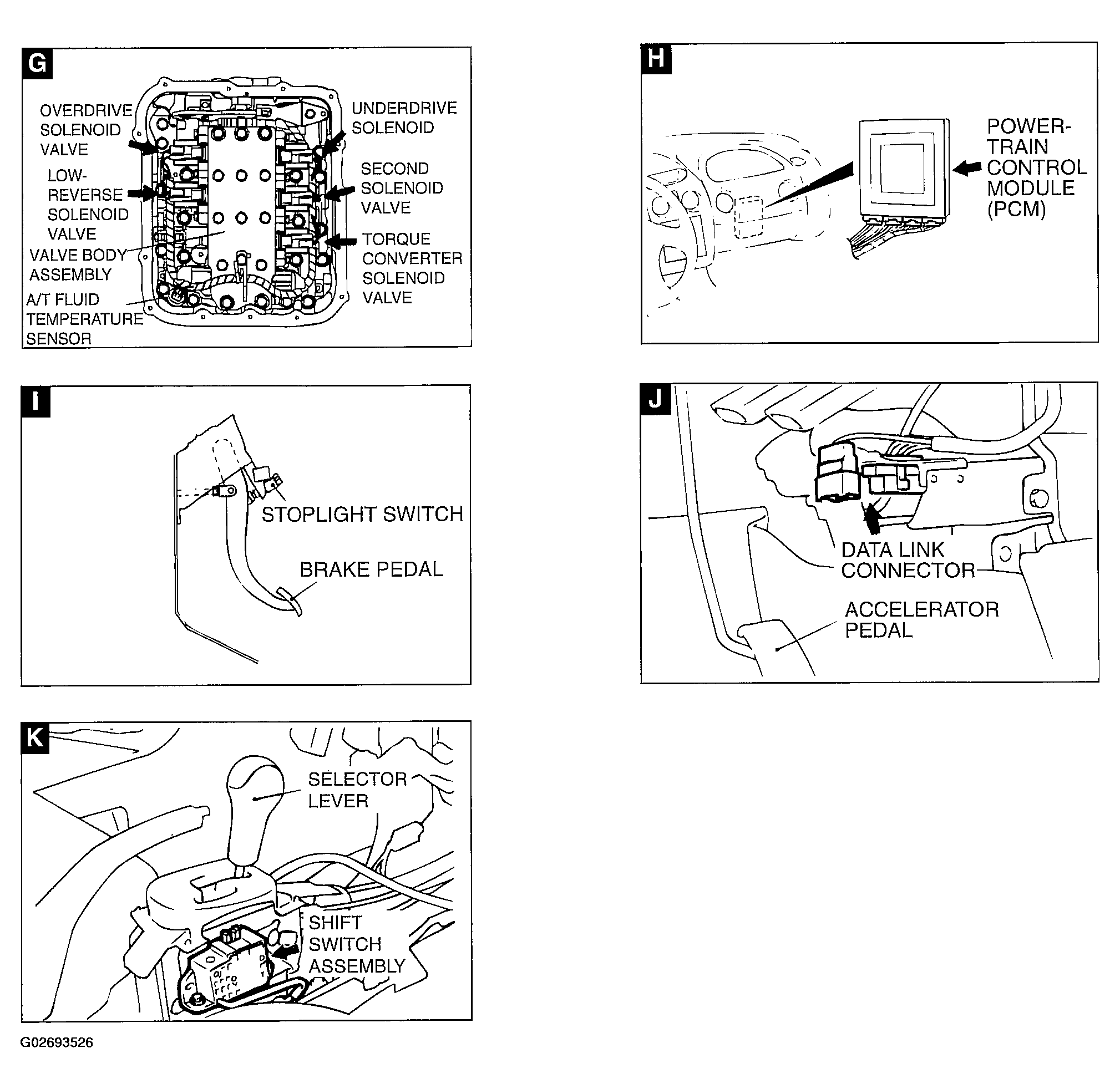

Fig 3: Locating Automatic Transaxle Control Components (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
