< 3.0L Engine > Downshift Pattern

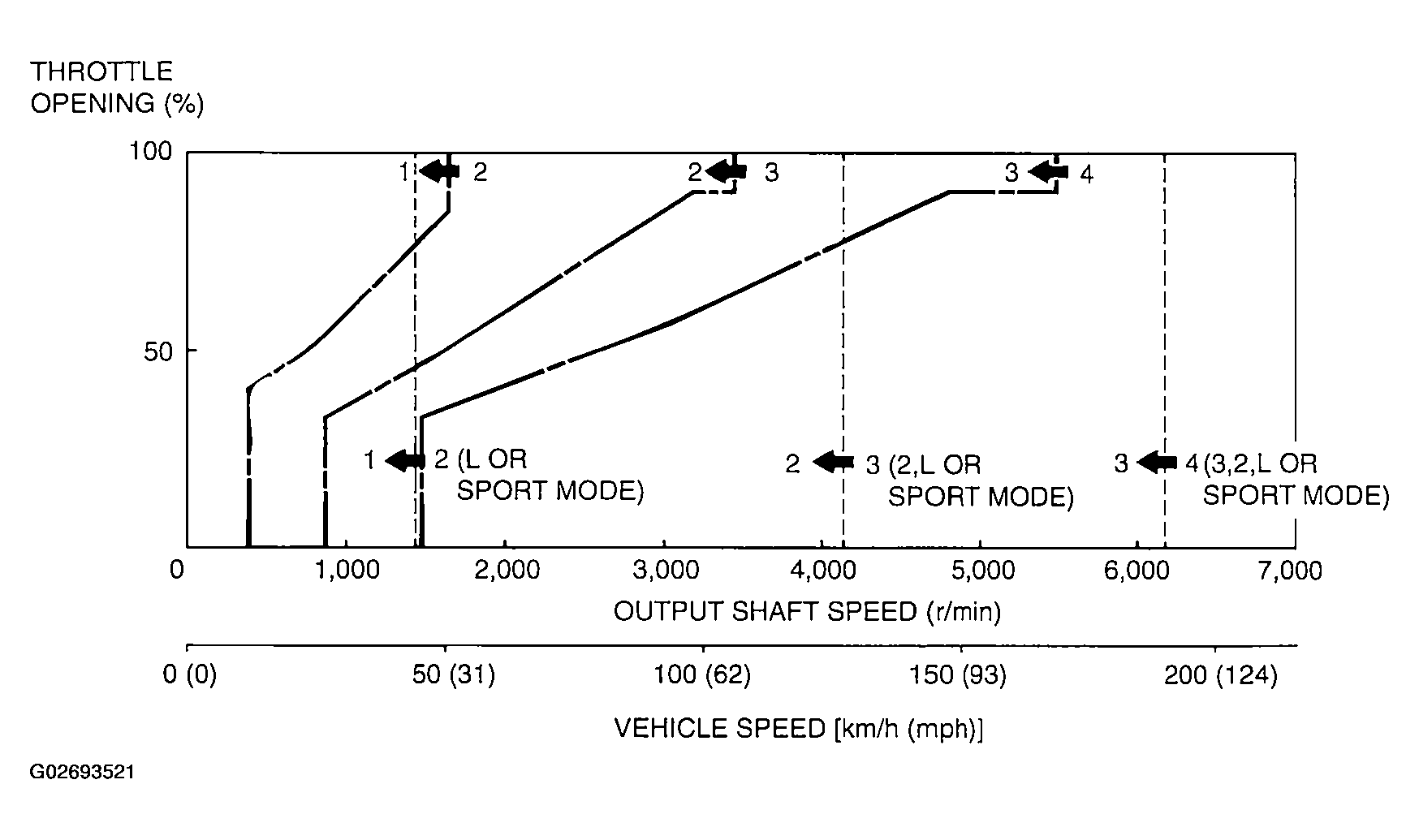

Fig 1: Downshift Pattern Graph (3.0L Engine)
G02693521Courtesy of DAIMLERCHRYSLER CORP.
