< 2.4L Engine > Downshift Pattern

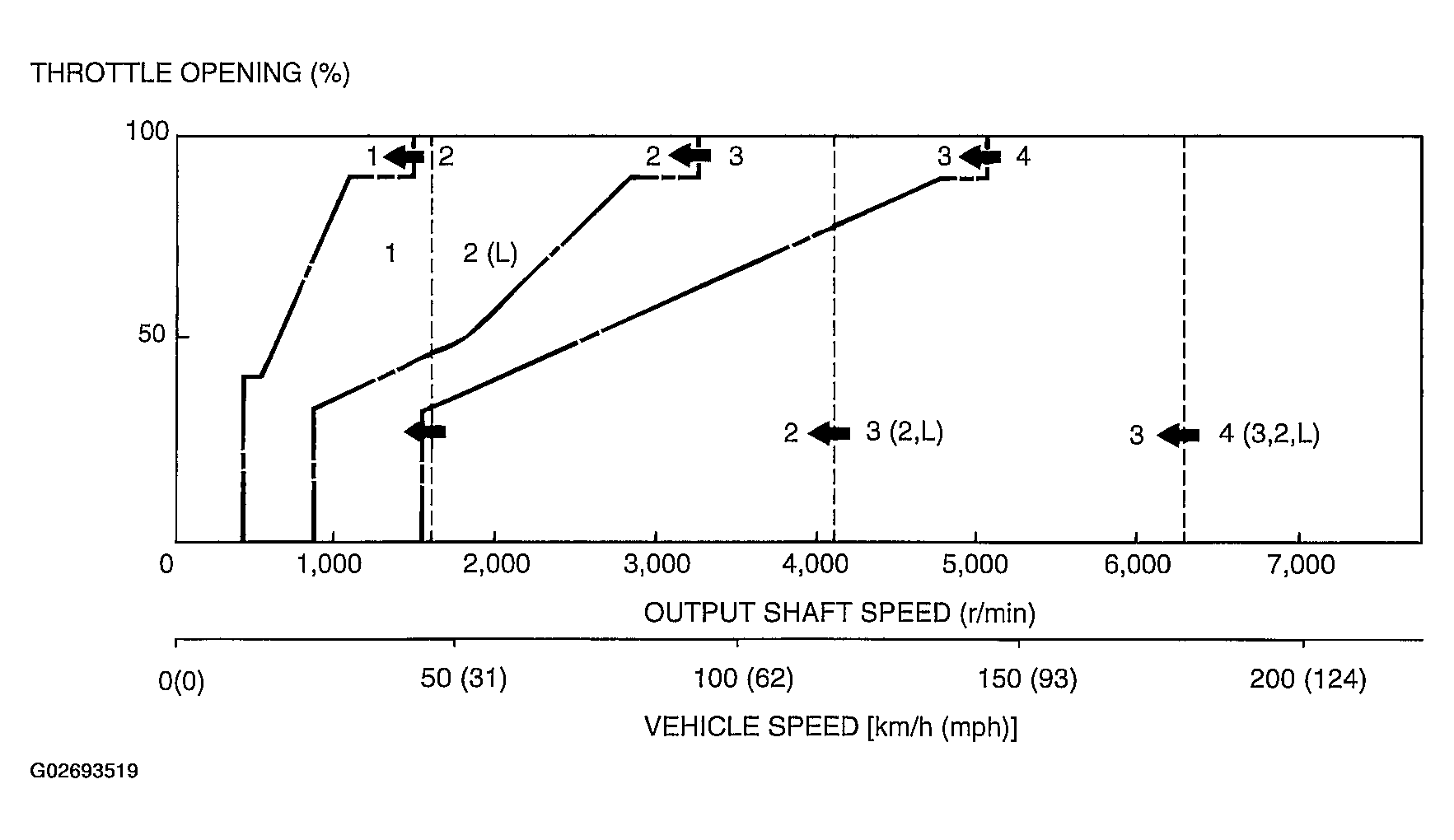

Fig 1: Downshift Pattern Graph (2.4L Engine)
G02693519Courtesy of DAIMLERCHRYSLER CORP.
