Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service & Removal And Installation >> A/T Key Interlock And Shift Lock Mechanisms >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

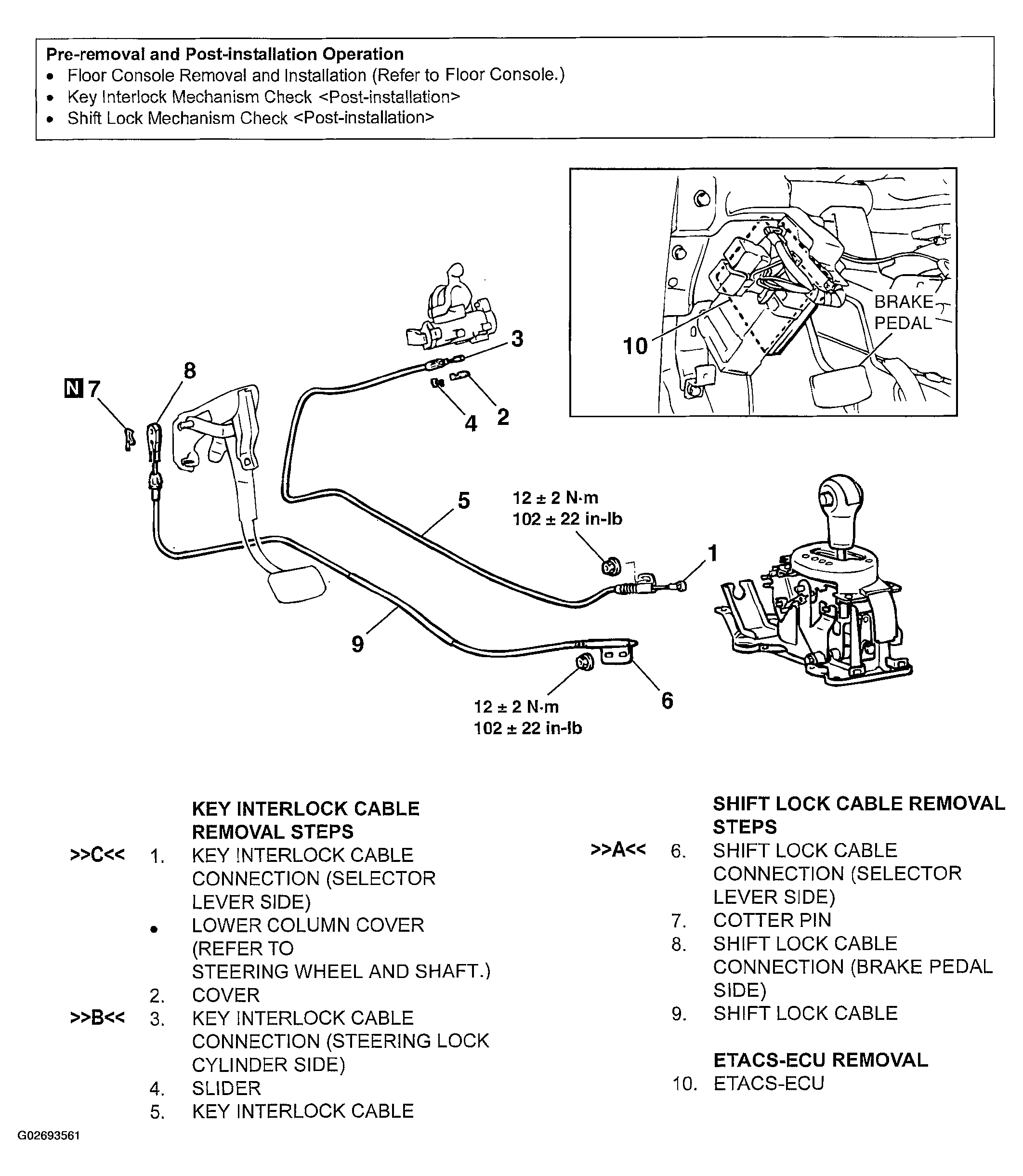

Fig 1: Removing & Installing A/T Key Interlock And Shift Lock Mechanisms
G02693561Courtesy of DAIMLERCHRYSLER CORP.
