Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

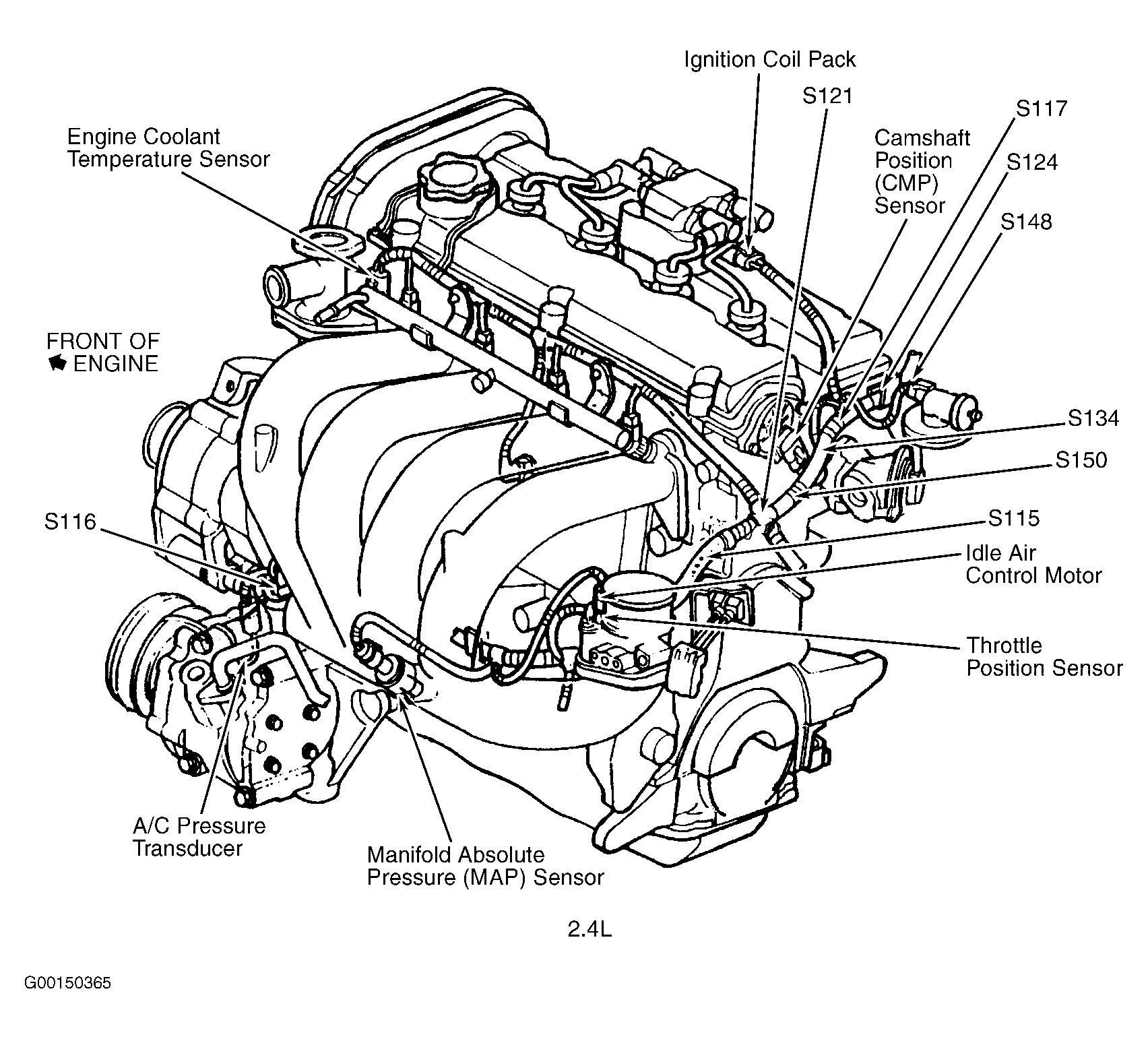

Fig 1: Engine (2.4L)

Courtesy of DAIMLERCHRYSLER CORP.

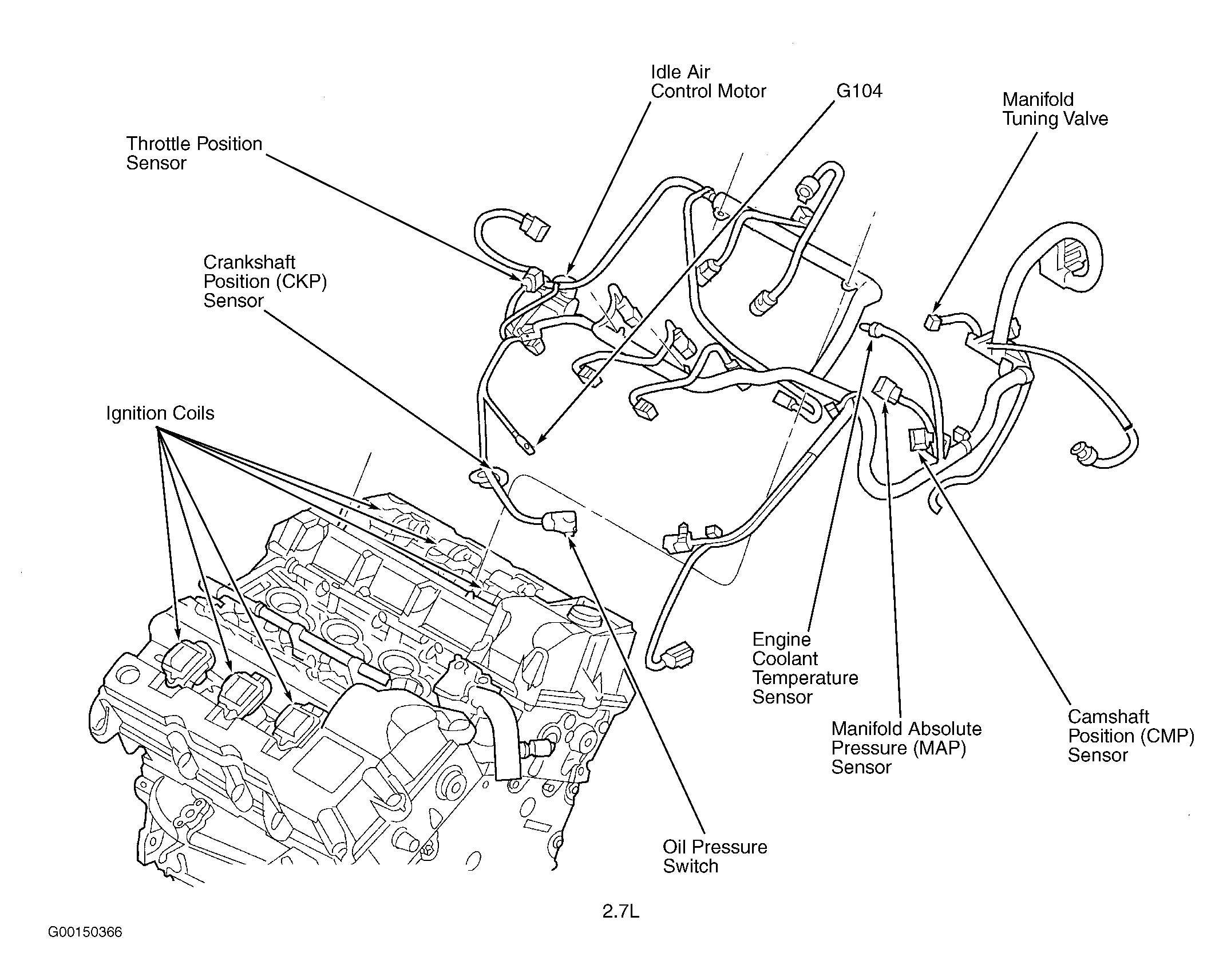

Fig 2: Engine (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

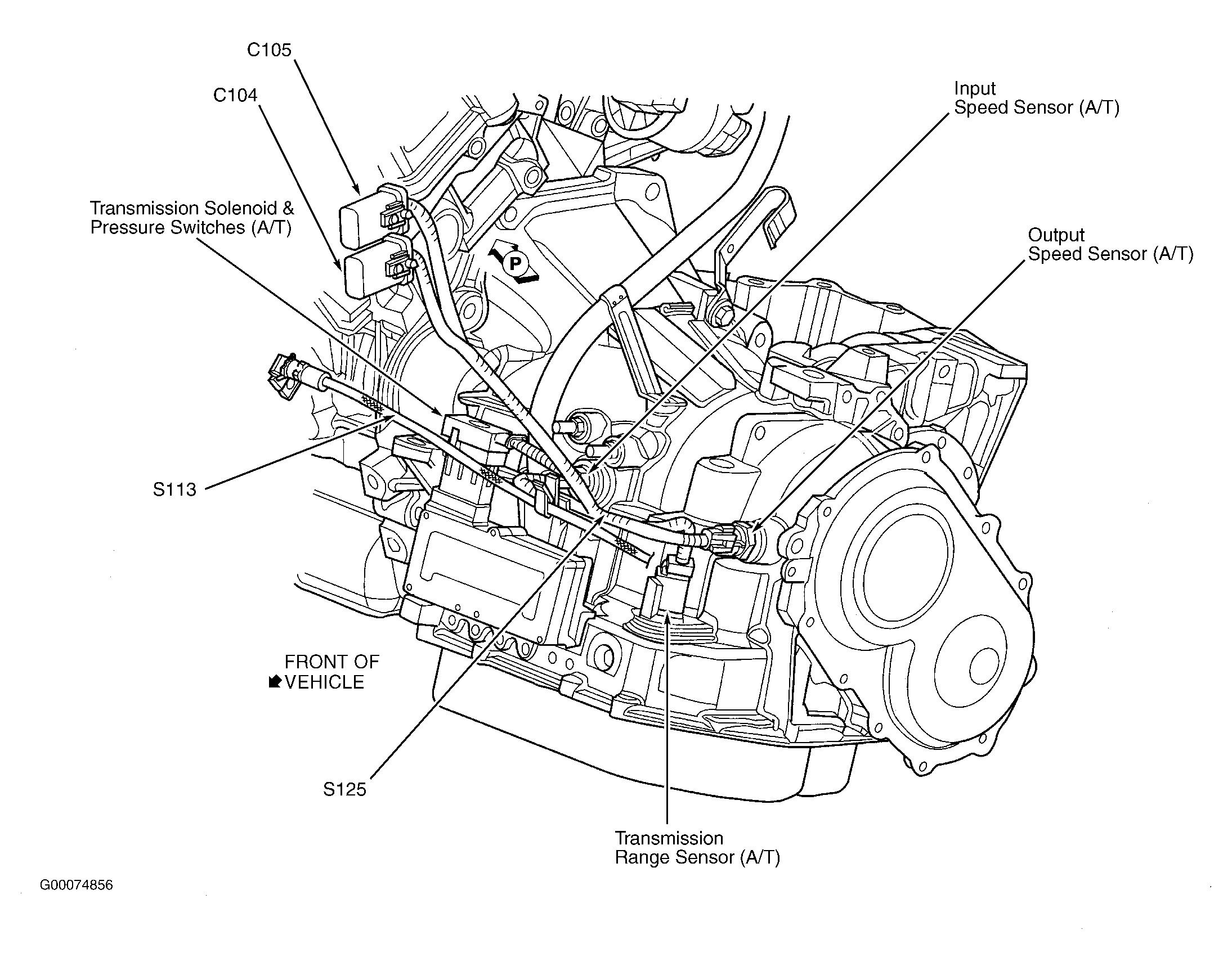

Fig 5: Left Side Of Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Fuse And Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
