Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System - Front >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

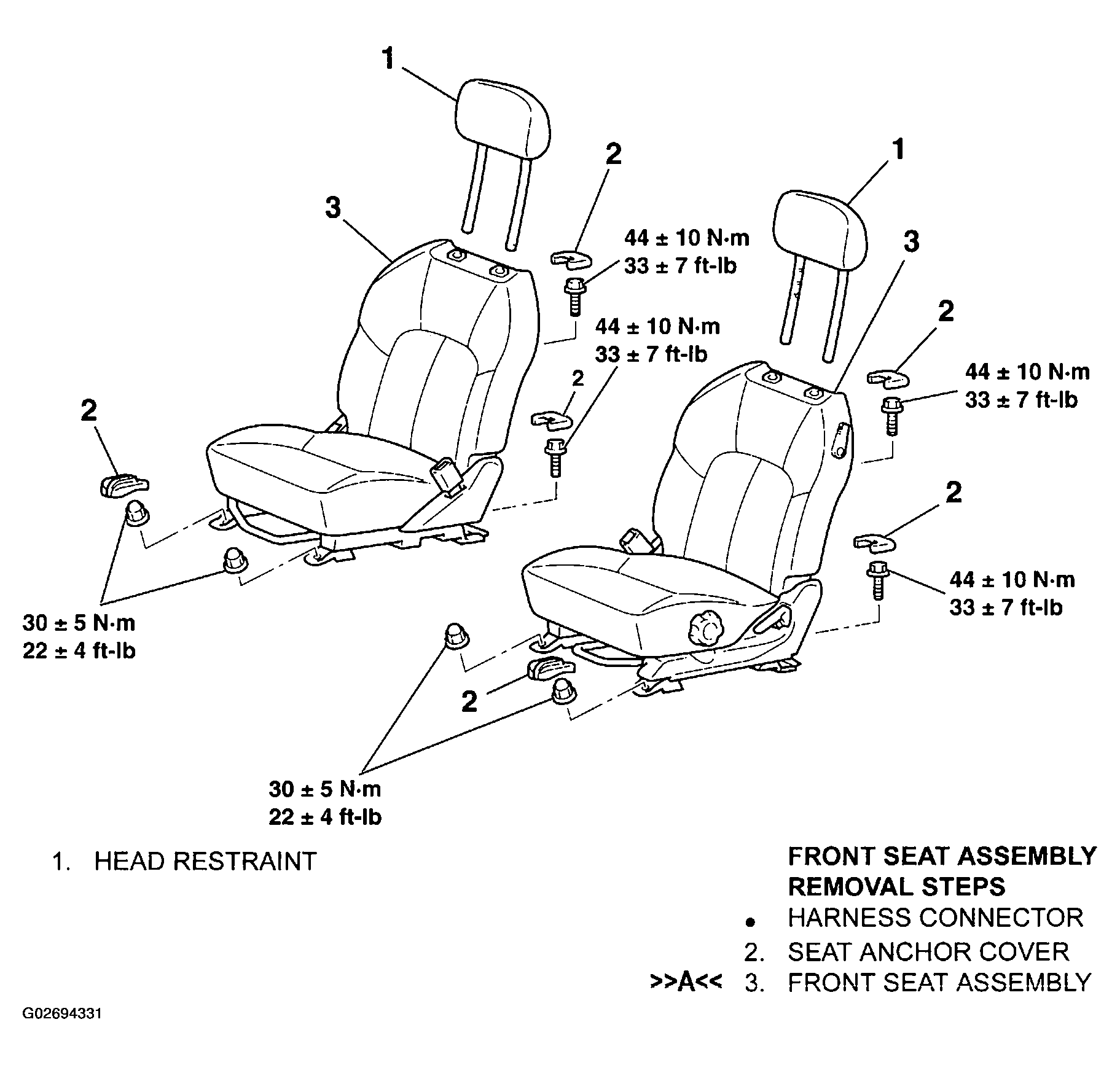

Fig 1: Removing And Installing Of Front Seat Assembly

G02694331

Courtesy of DAIMLERCHRYSLER CORP.
