Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System - Front >> Front Seat Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

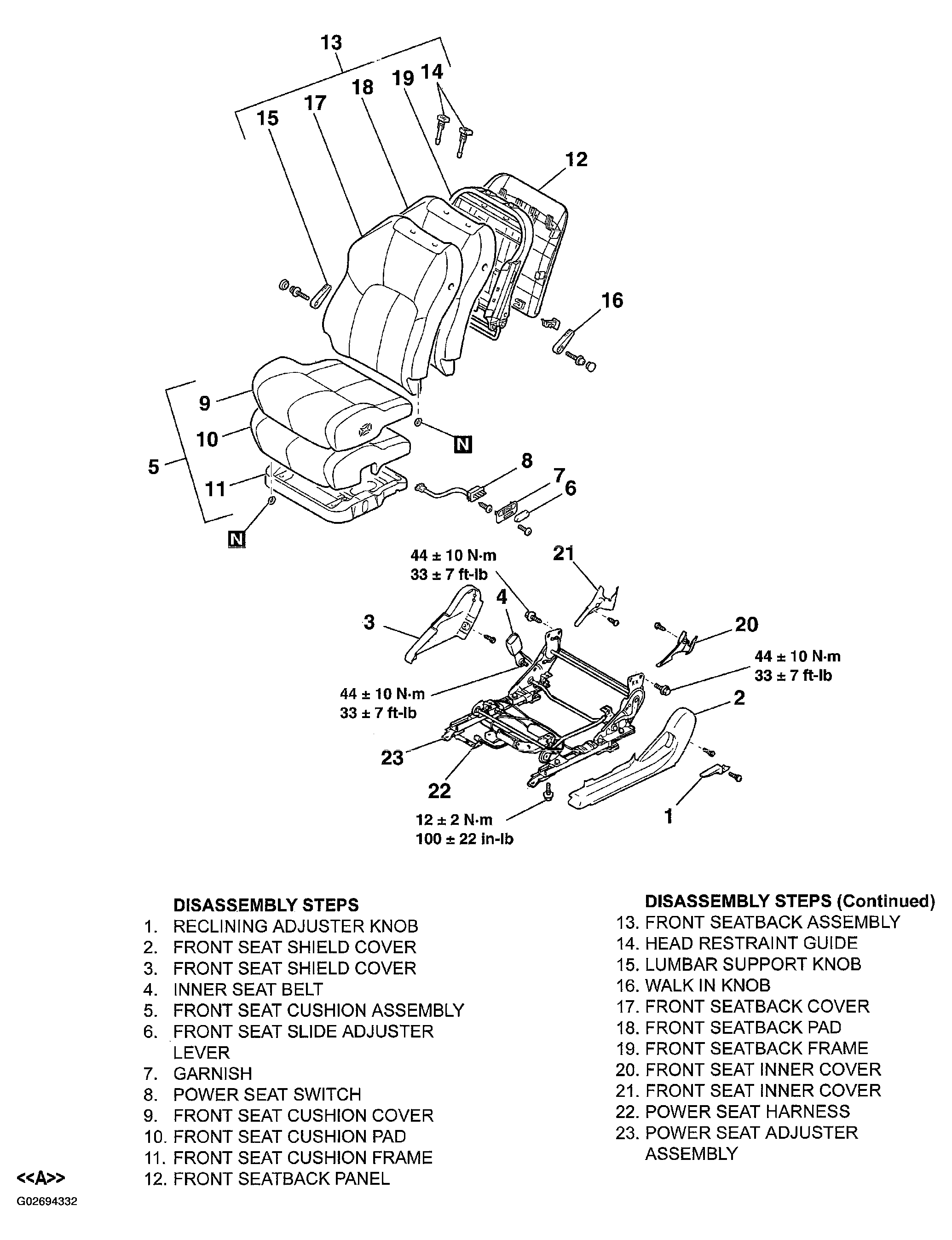

Fig 1: Disassembly And Assembly Of Front Seat Assembly

G02694332

Courtesy of DAIMLERCHRYSLER CORP.
