Removal And Installation: Notes

Pre-removal and Post-installation Operation

• Front Deck Garnish Removal and Installation (Refer to WINDSHIELD WIPER AND WASHER .)
• Roof Drip Molding Removal and Installation (Refer to MOLDINGS .)
• Headlining Removal and Installation (Refer to HEADLINING .)
• Inside Rear View Mirror Removal and Installation (Refer to INSIDE REAR VIEW MIRROR .)

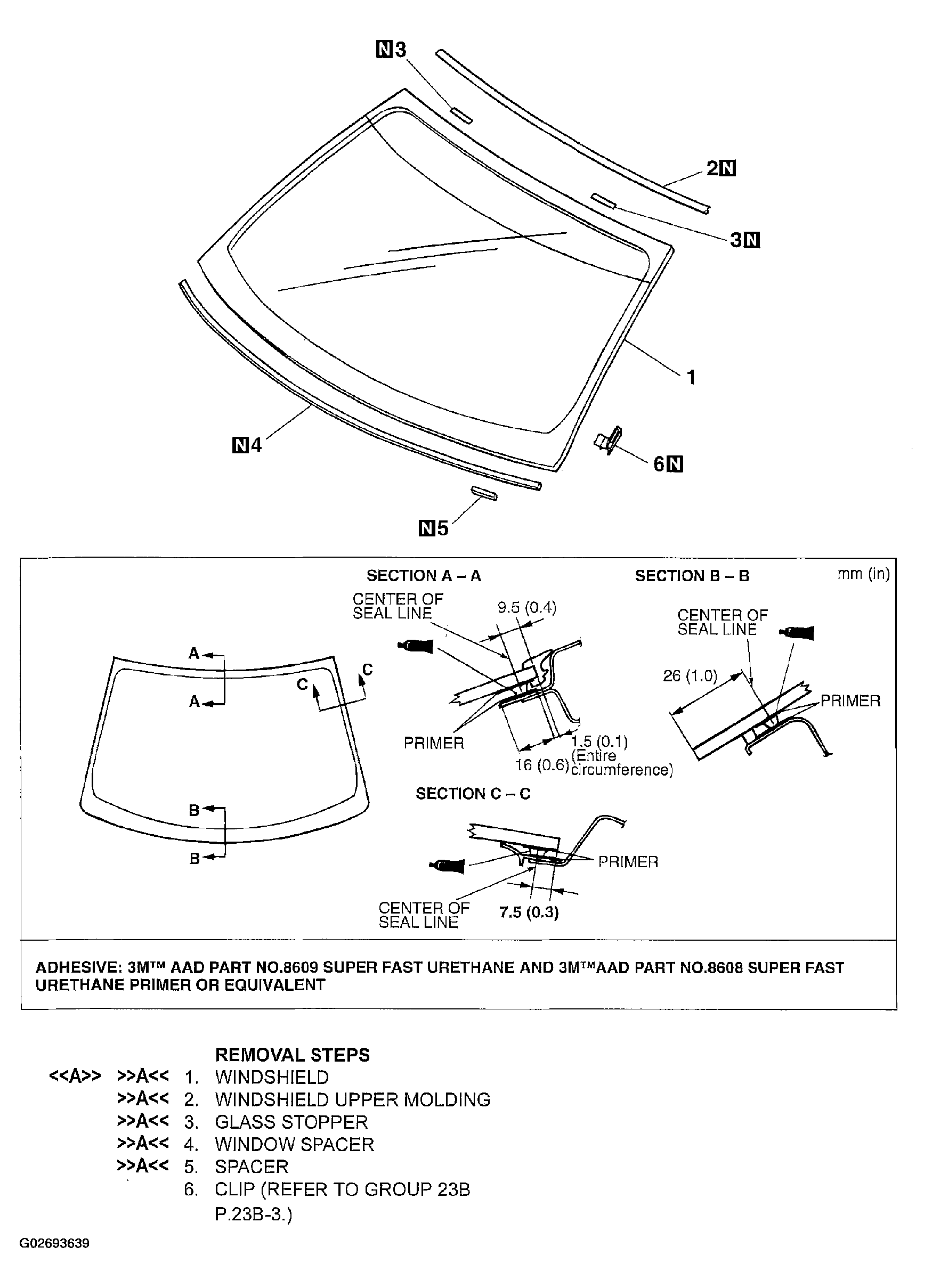

  Fig 1: Removing & Installing Windshield

  Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tool:

• MB990480: Glass Holder
