Removal And Installation: Notes

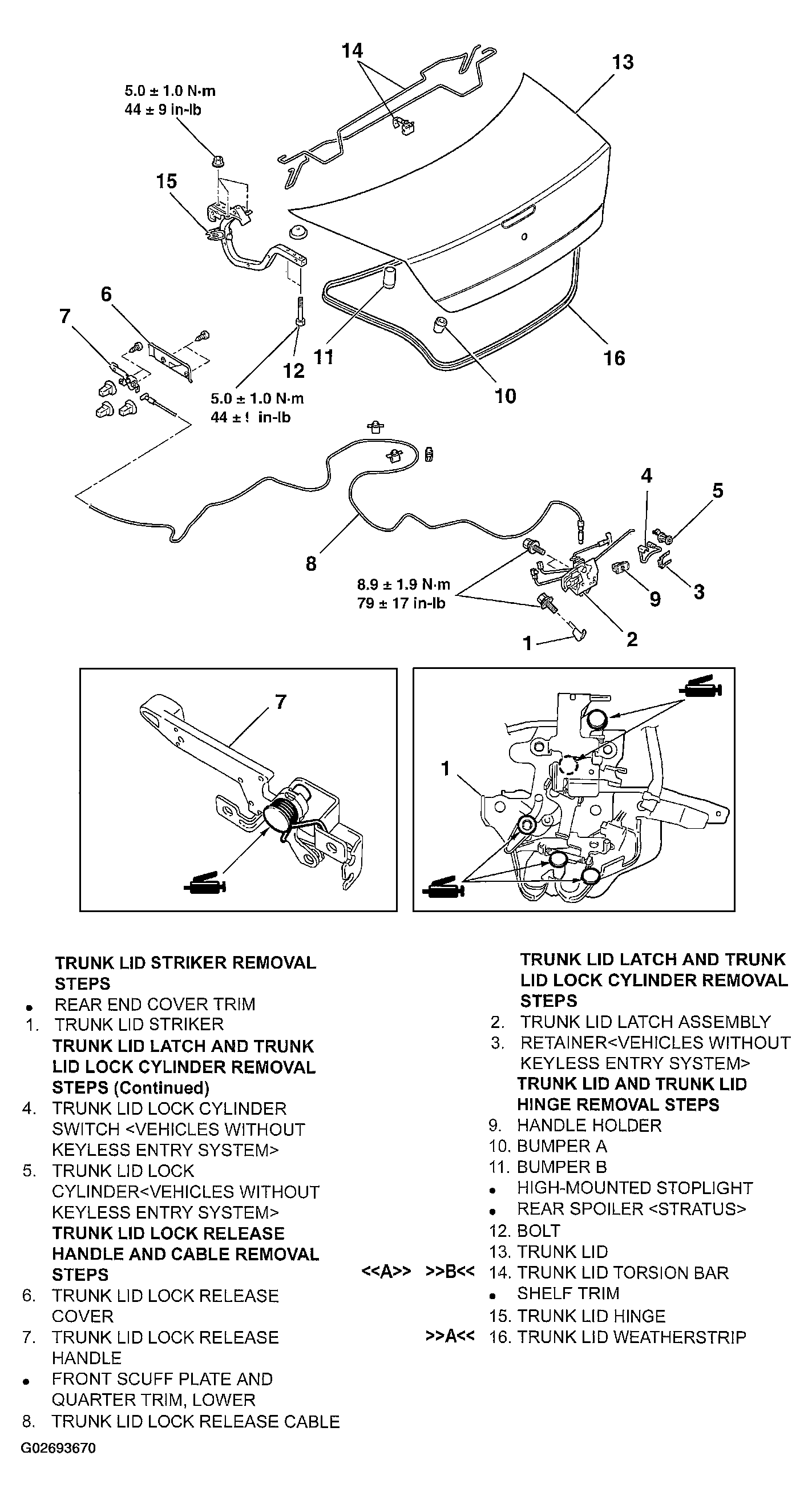

Fig 1: Removing & Installing Trunk Lid (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tool:

• MB991244: Torsion Bar Remover and Installer

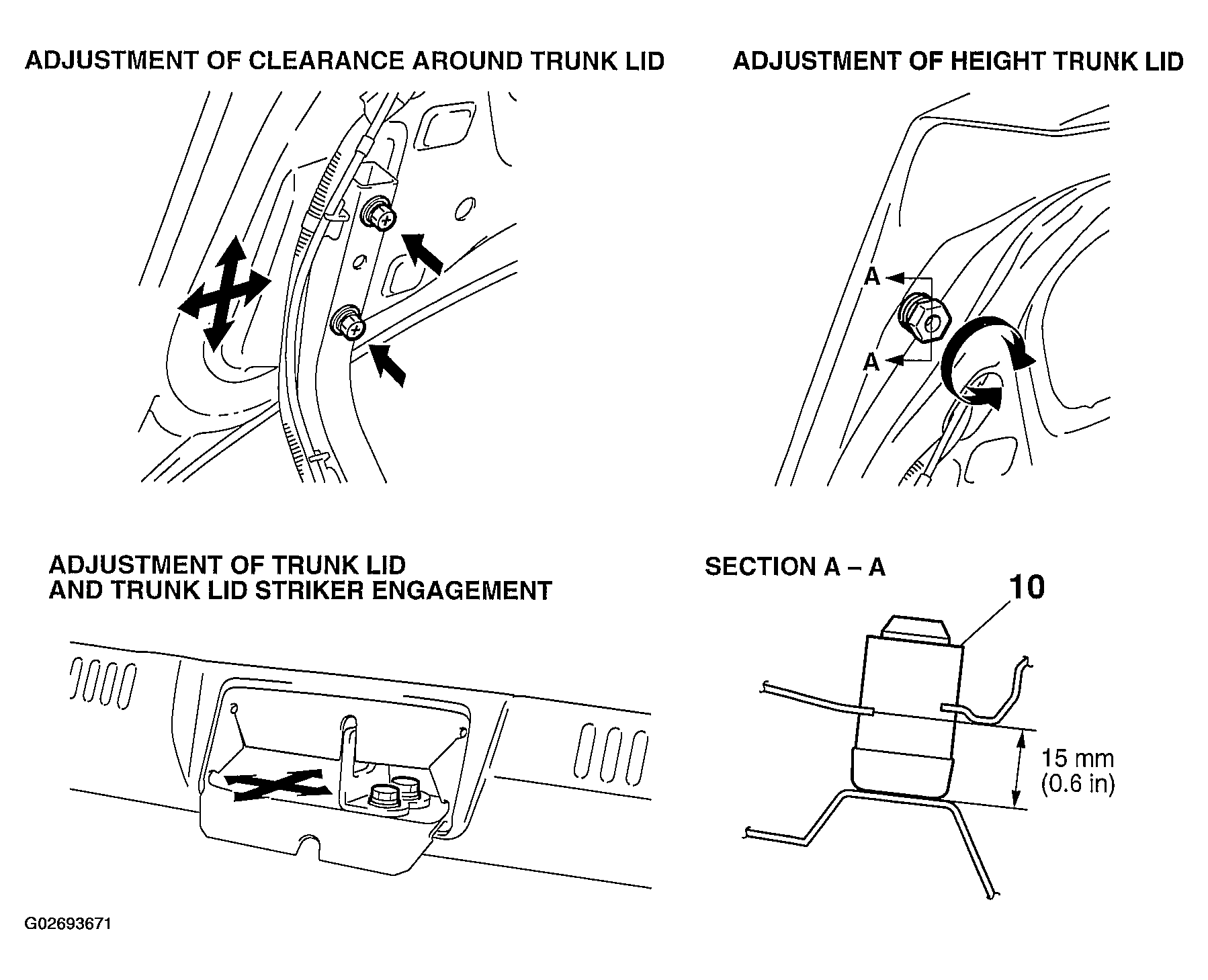

  Fig 2: Removing & Installing Trunk Lid (2 Of 2)

  Courtesy of DAIMLERCHRYSLER CORP.
