Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Body >> Sunroof Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

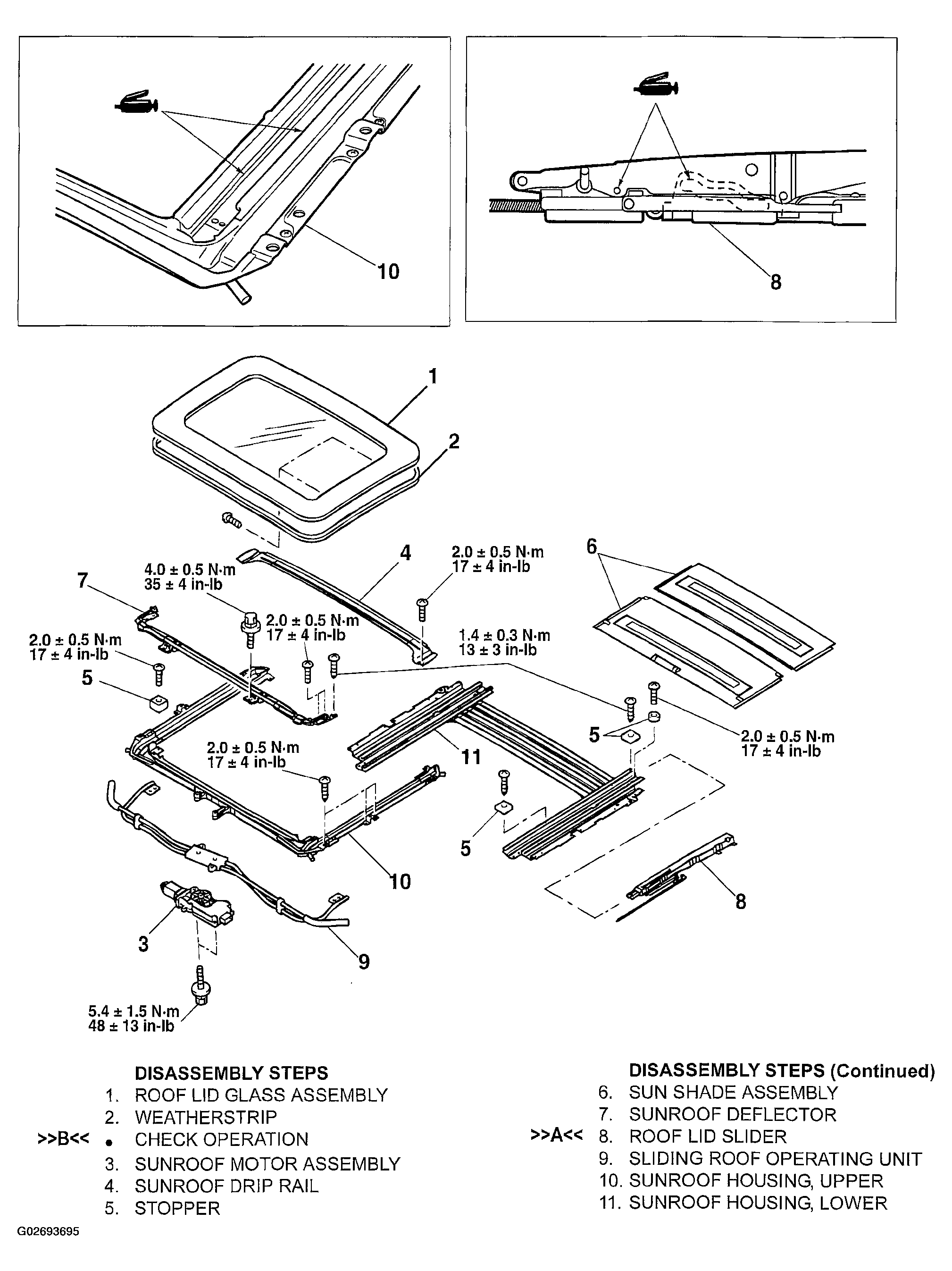

Fig 1: Disassembling & Assembling Sunroof Assembly

G02693695

Courtesy of DAIMLERCHRYSLER CORP.
