Home >> Chrysler >> 2003 >> Sebring GTC, 2.7 T, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Axle >> Special Tools

Special Tools

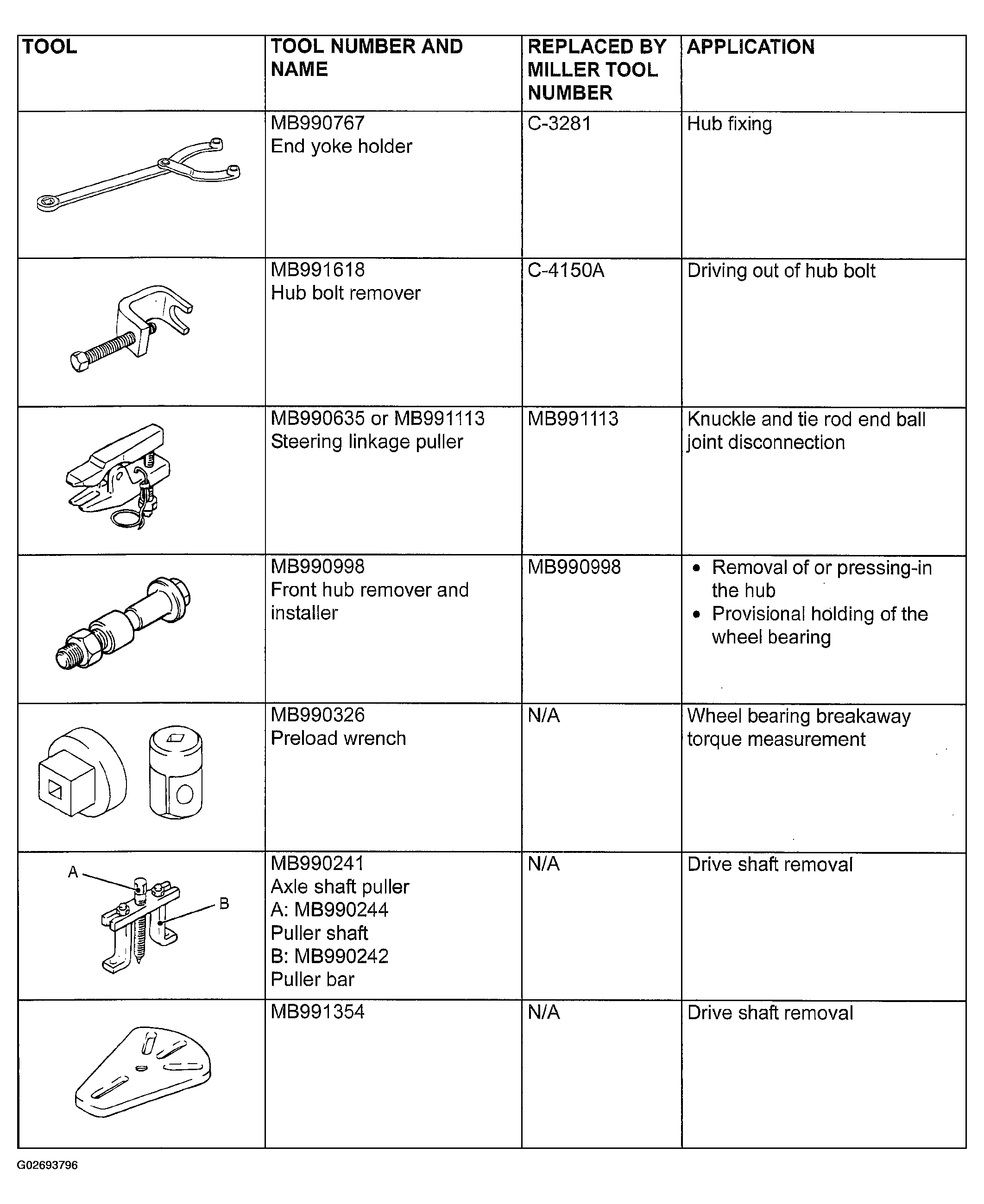

Fig 1: Identifying Special Tools (1 Of 3)
G02693796Courtesy of DAIMLERCHRYSLER CORP.

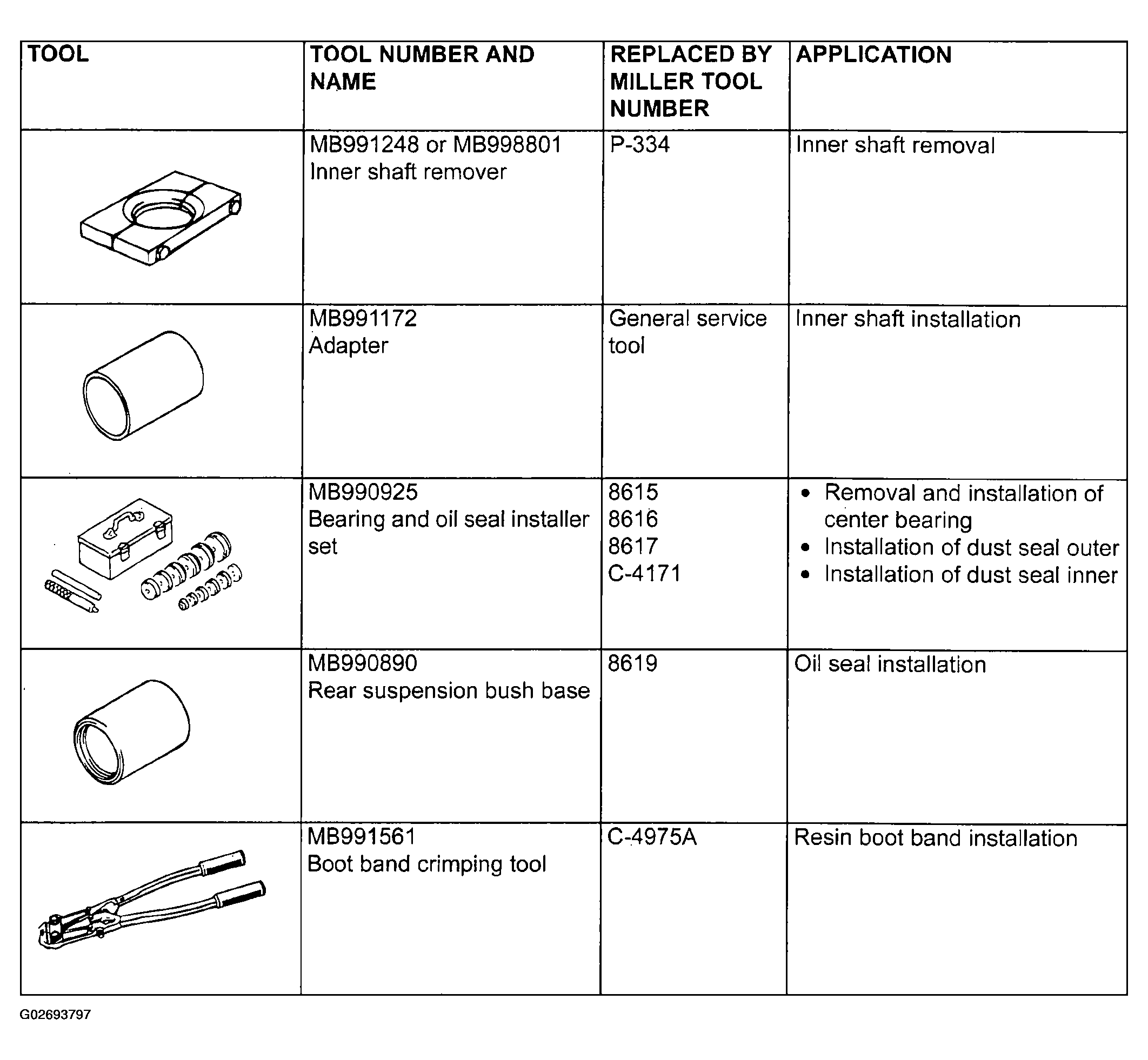

Fig 2: Identifying Special Tools (2 Of 3)
G02693797Courtesy of DAIMLERCHRYSLER CORP.

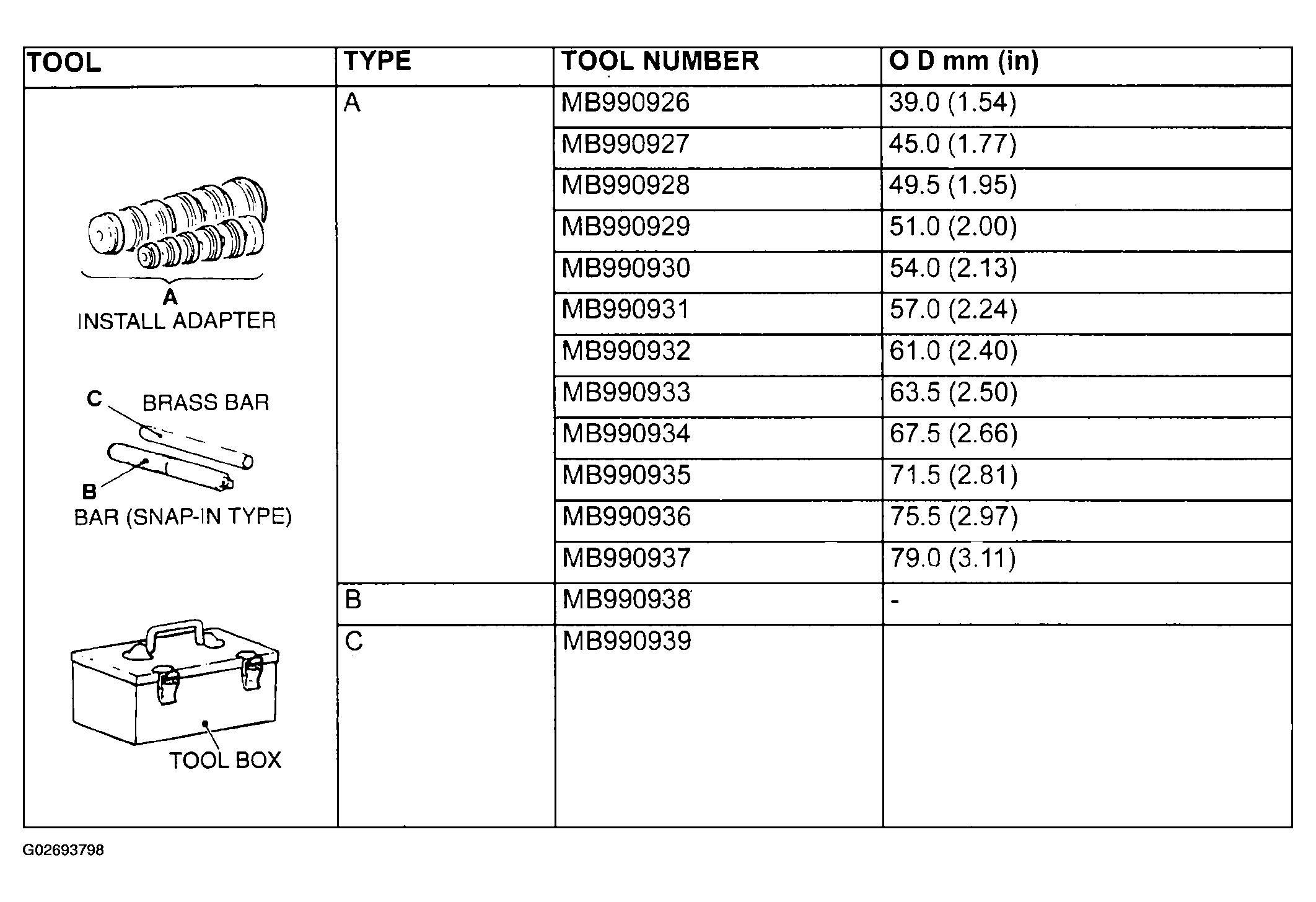

Fig 3: Identifying Special Tools (3 Of 3)
G02693798Courtesy of DAIMLERCHRYSLER CORP.
