Hub Bolt Replacement

Required Special Tool:

• MB990767: End Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the caliper assembly and suspend it with wire so that it does not fall.
2. Remove the brake disc.

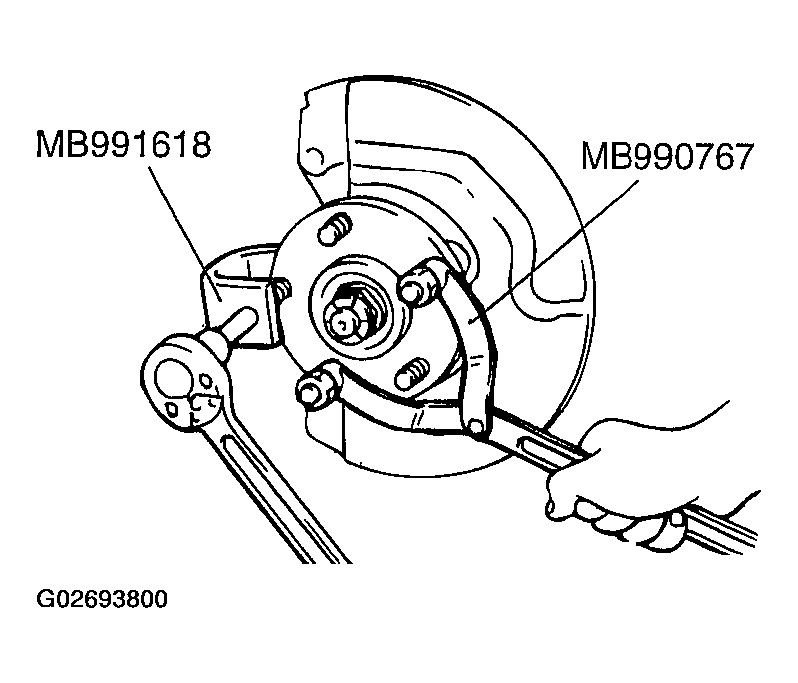

3. Use special tools MB990767 and MB991618 to remove the hub bolts.
   Fig 1: Removing Hub Bolts

   Courtesy of DAIMLERCHRYSLER CORP.

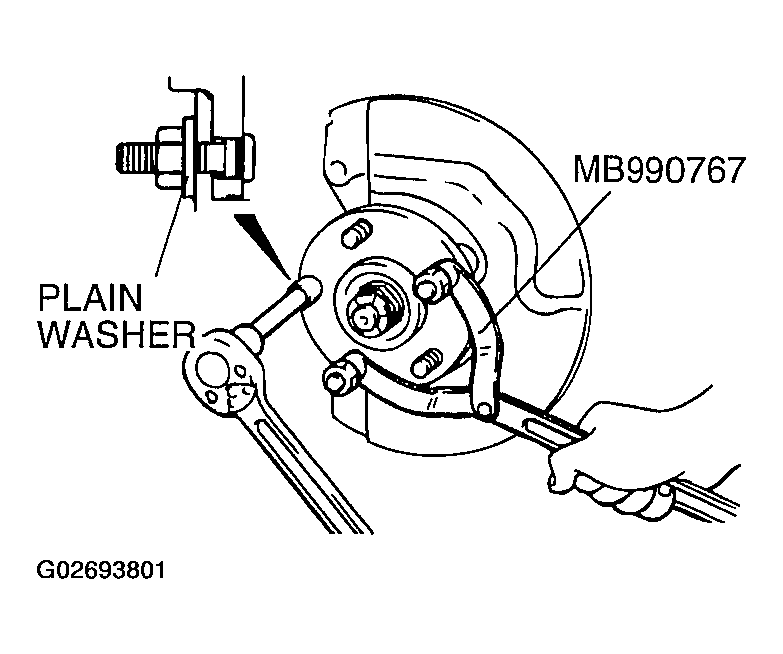

4. Install the plain washer to a new hub bolt, and install the bolt with a nut.
   Fig 2: Installing Bolt With A Nut

   Courtesy of DAIMLERCHRYSLER CORP.
