Removal And Installation: Notes

CAUTION: For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so as not to damage it by striking against other parts.

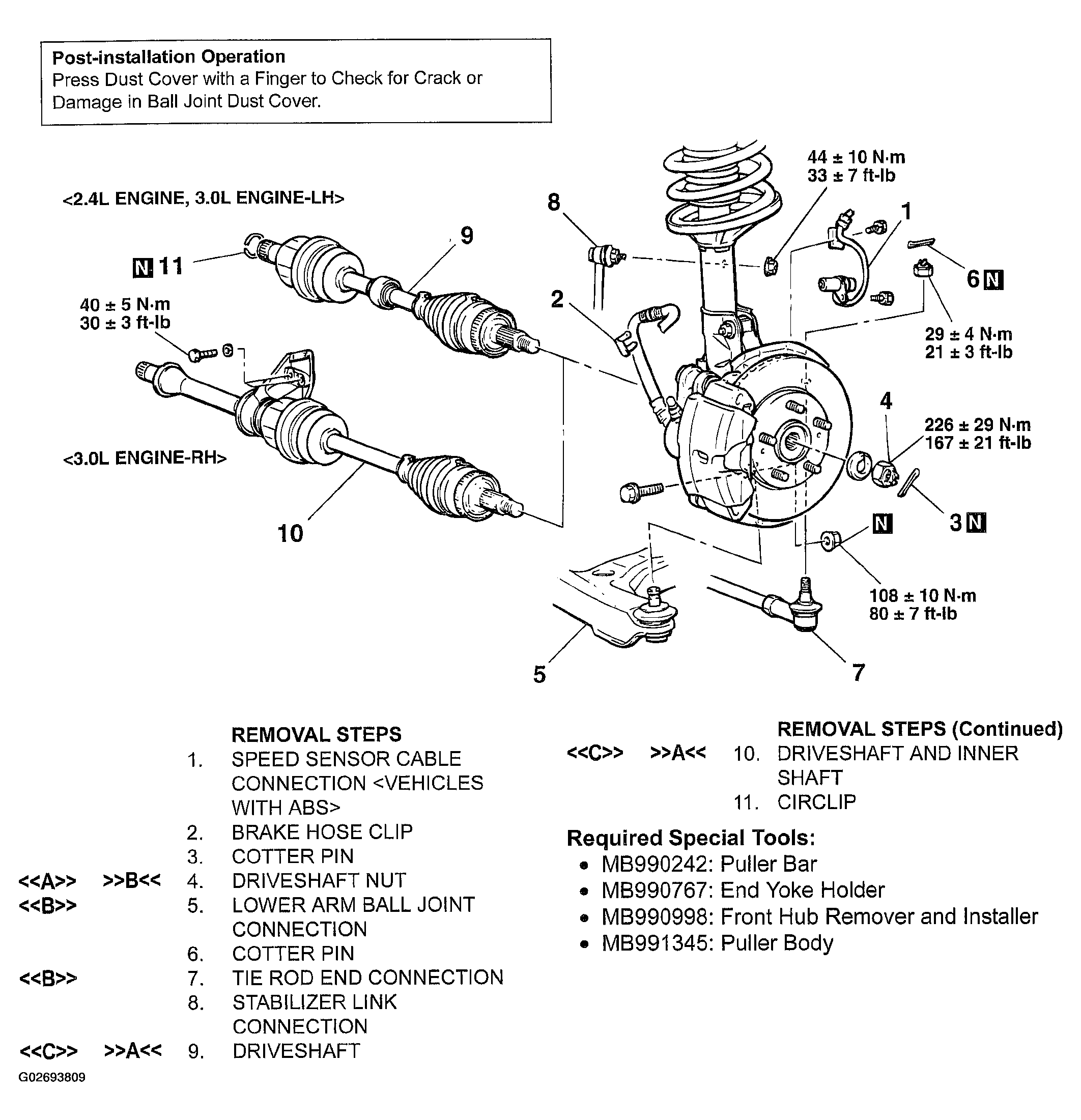

Fig 1: Removing & Installing Drive Shaft Assembly
G02693809Courtesy of DAIMLERCHRYSLER CORP.
