Verification Tests

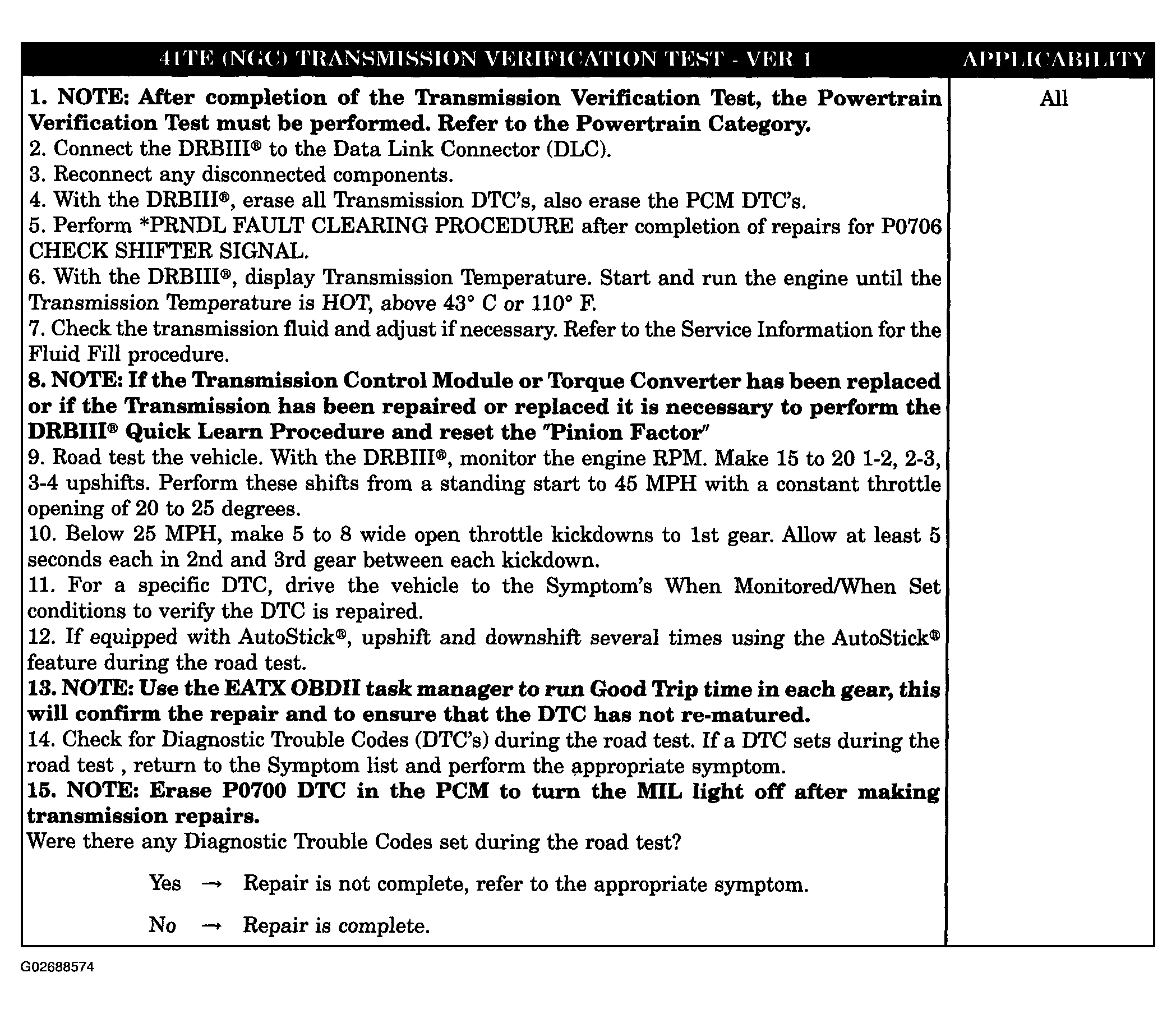

Fig 1: 41TE (NGC) Transmission Verification Test - VER 1
G02688574Courtesy of DAIMLERCHRYSLER CORP.

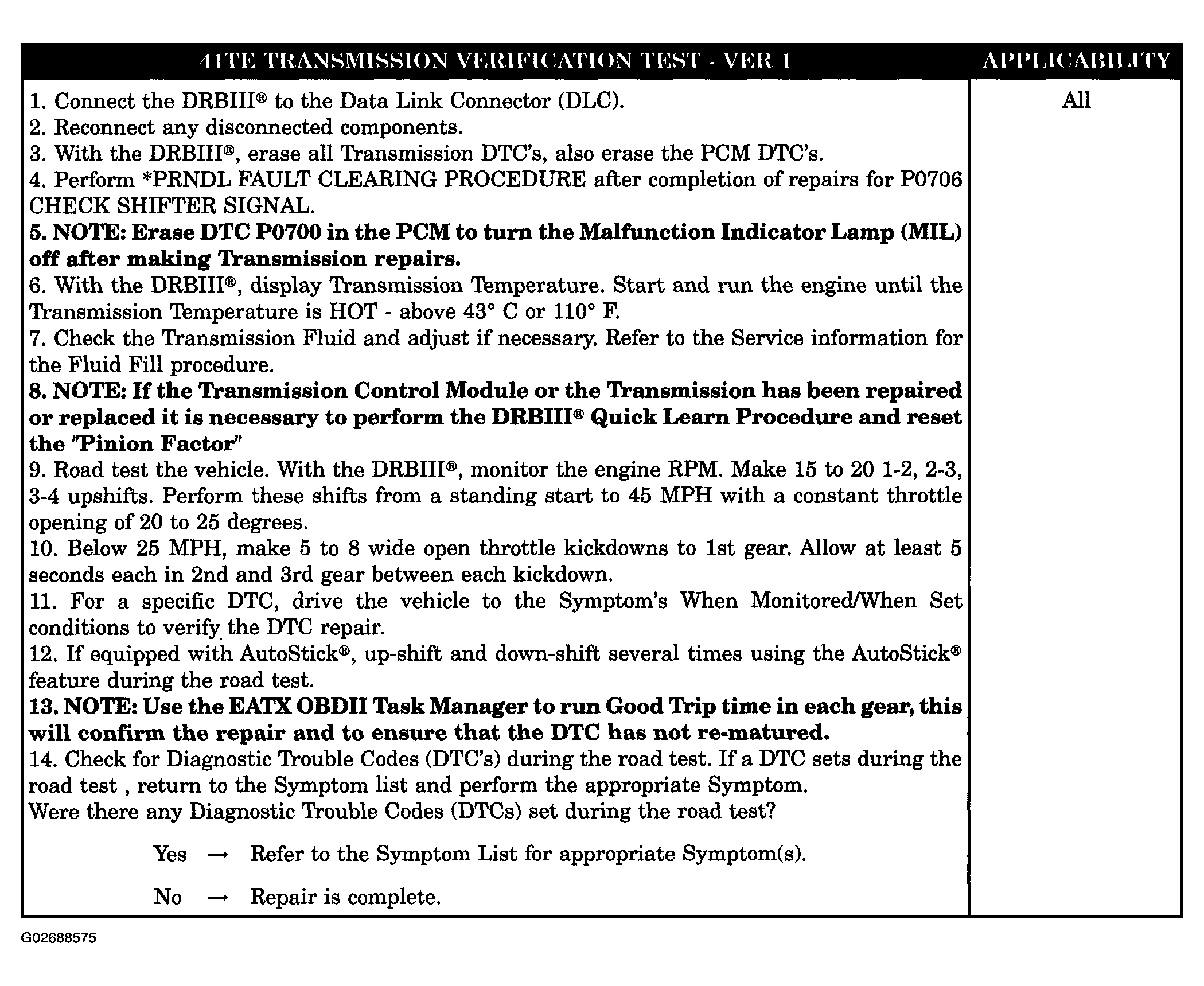

Fig 2: 41TE Transmission Verification Test - VER 1
G02688575Courtesy of DAIMLERCHRYSLER CORP.

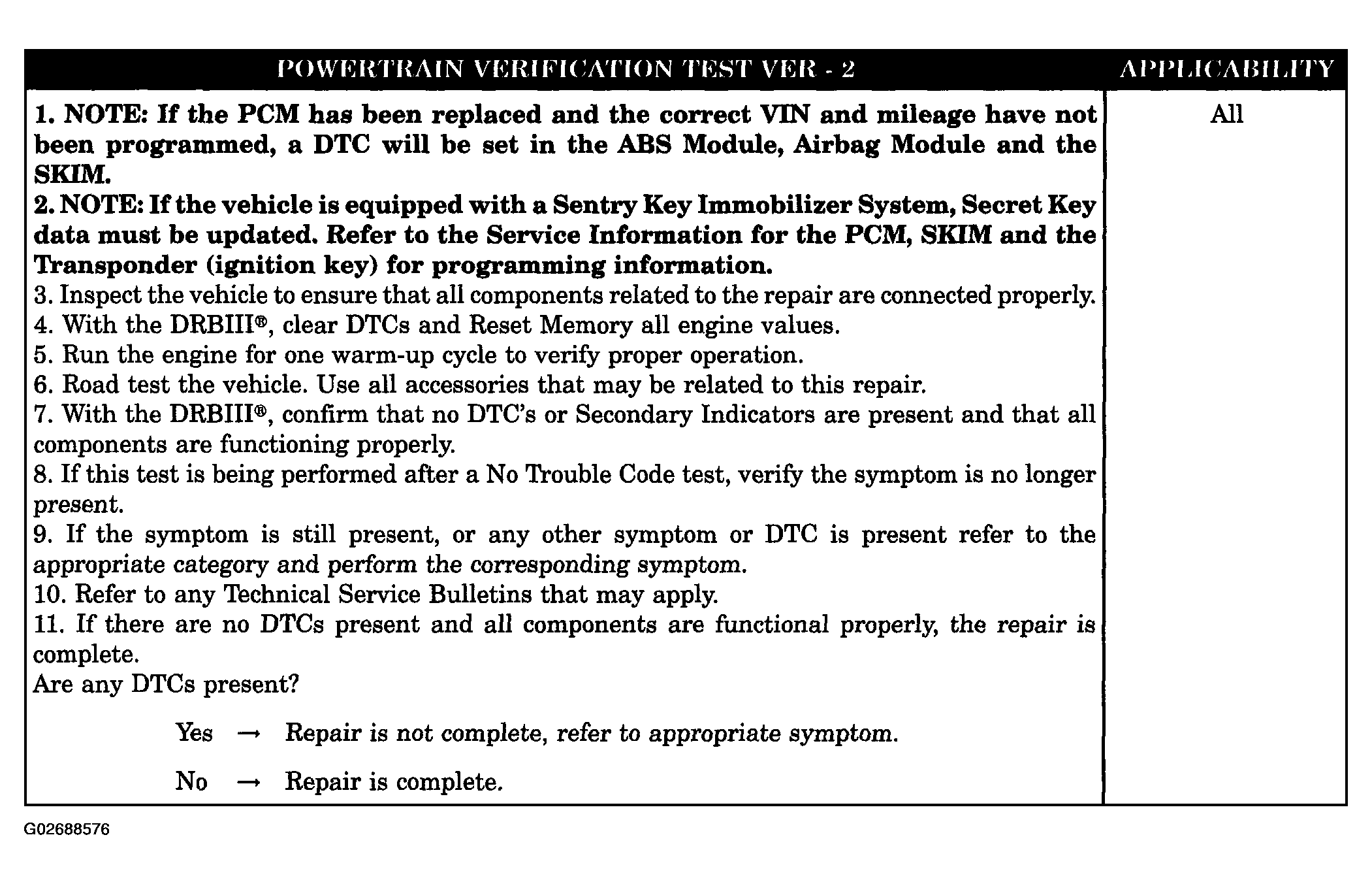

Fig 3: Powertrain Verification Test - VER 2
G02688576Courtesy of DAIMLERCHRYSLER CORP.
