Transmission Control Module (2.7L)

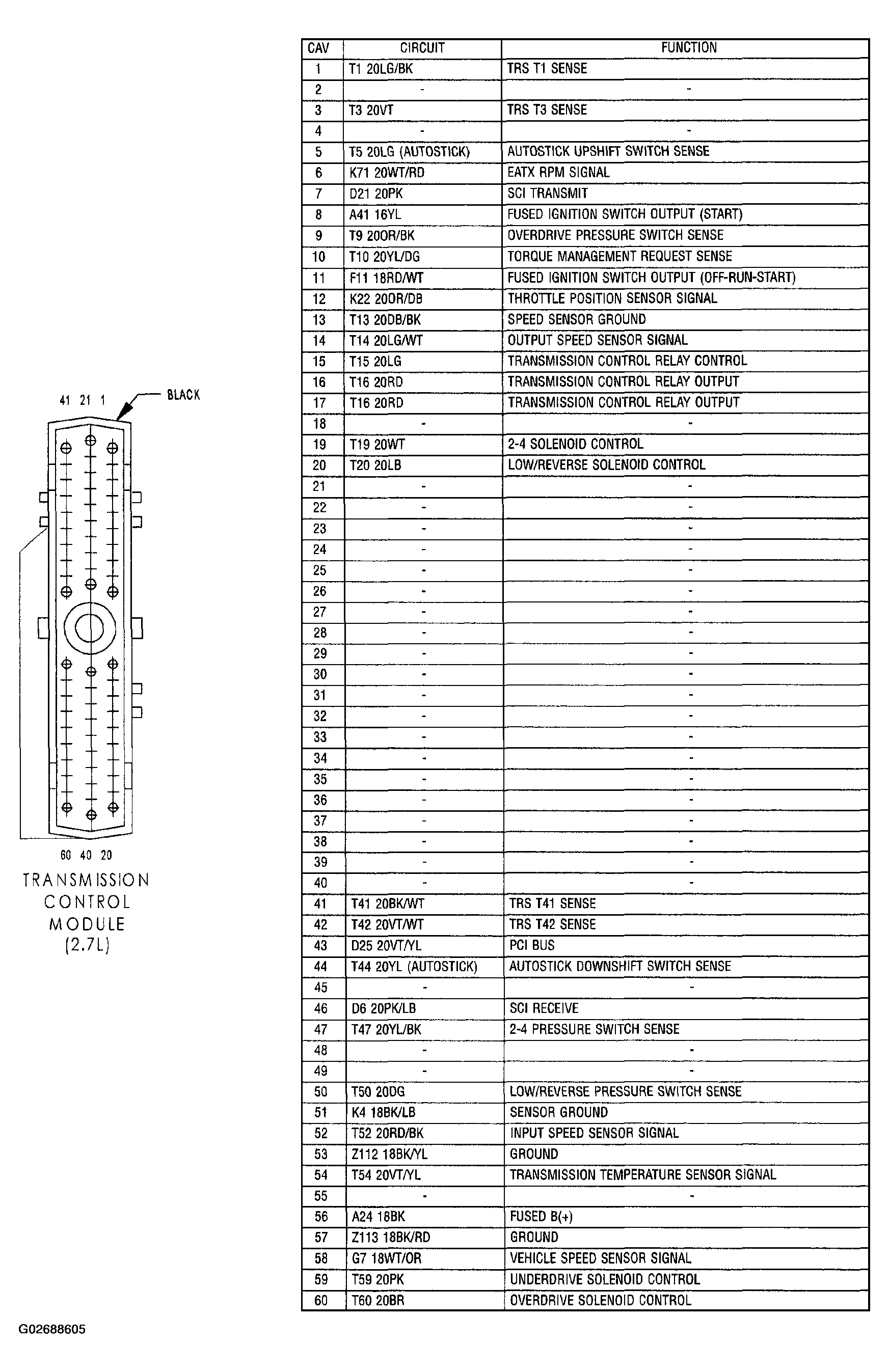

Fig 1: Identifying Transmission Control Module (2.7L) Connector Pinouts
G02688605Courtesy of DAIMLERCHRYSLER CORP.
