Control Module Locations: NGC

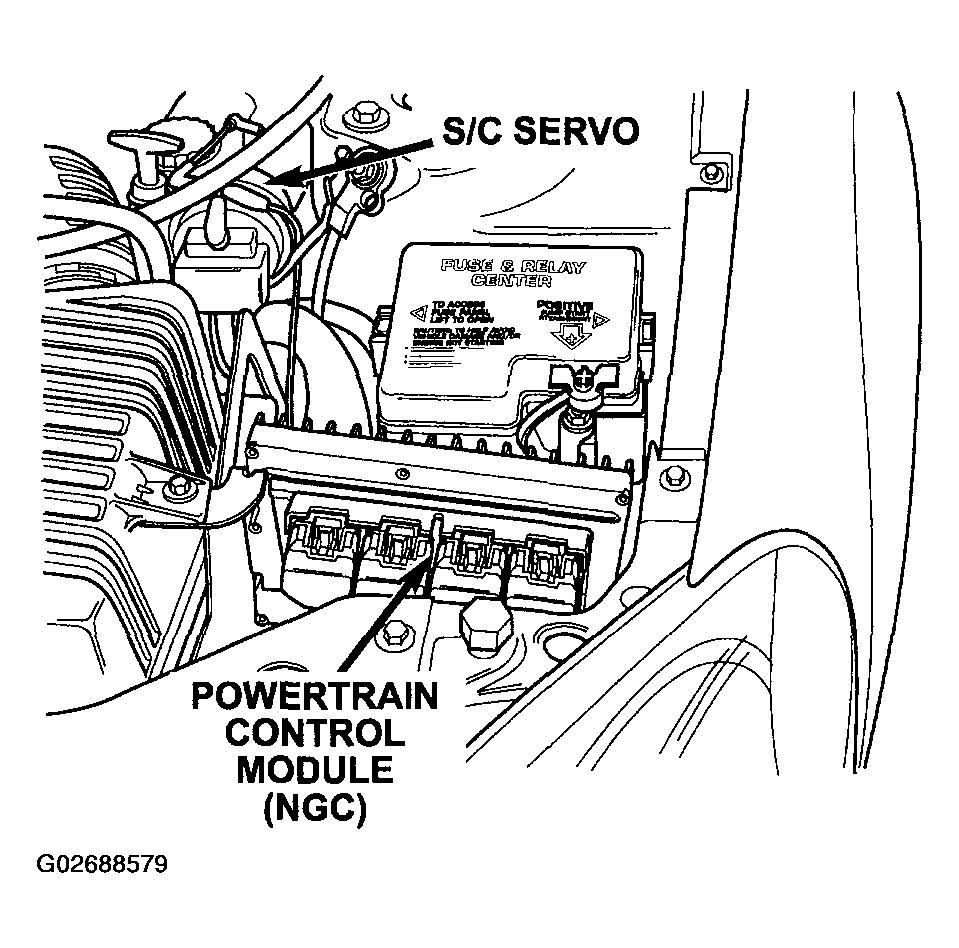

Fig 1: Identifying Speed And Powertrain Control Module Locations (NGC)
G02688579Courtesy of DAIMLERCHRYSLER CORP.
