Rear Seat: Installation

  1. Place rear seat back into position in vehicle (Fig 1 ).
  2. Push seat downward to engage hooks.

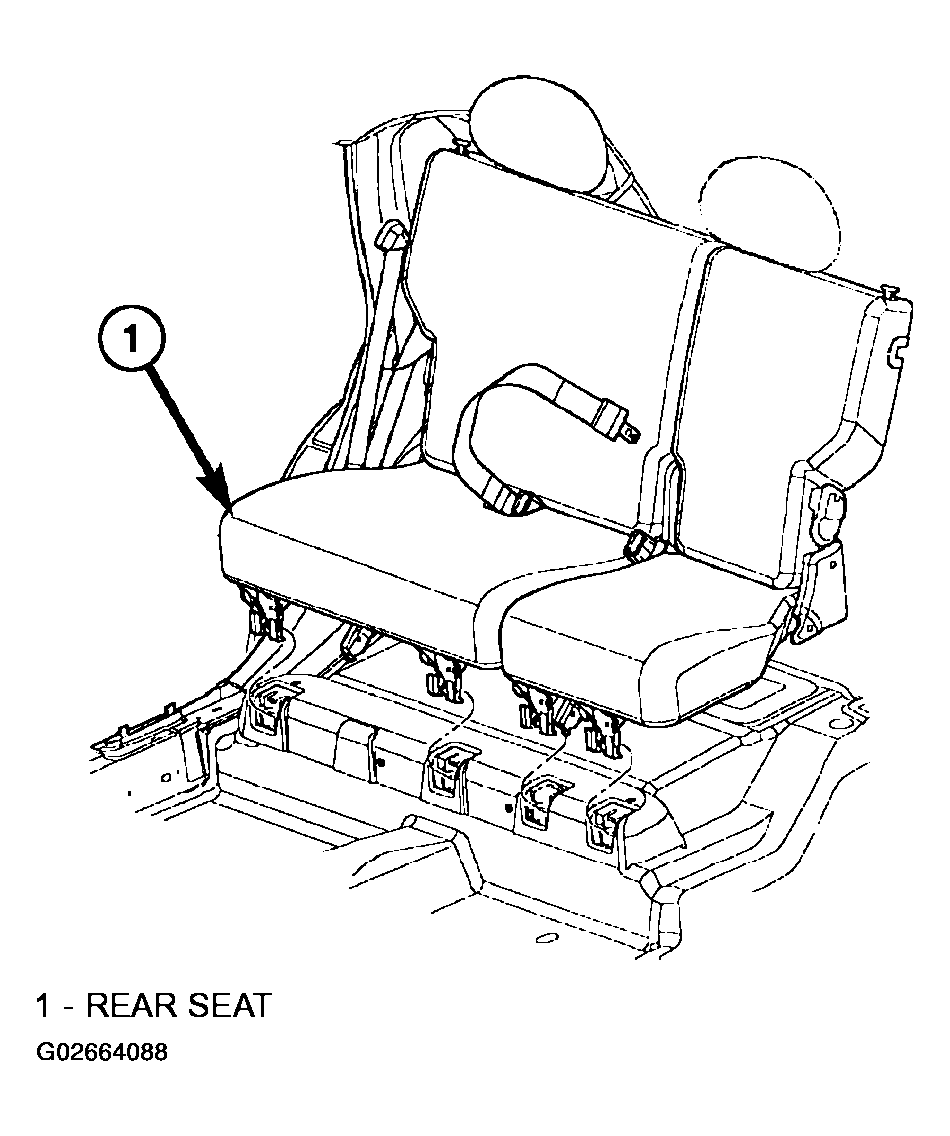

Fig 1: Removing Rear Seat
G02664088Courtesy of DAIMLERCHRYSLER CORP.
