Manifold Absolute Pressure Sensor Harness Connector End View

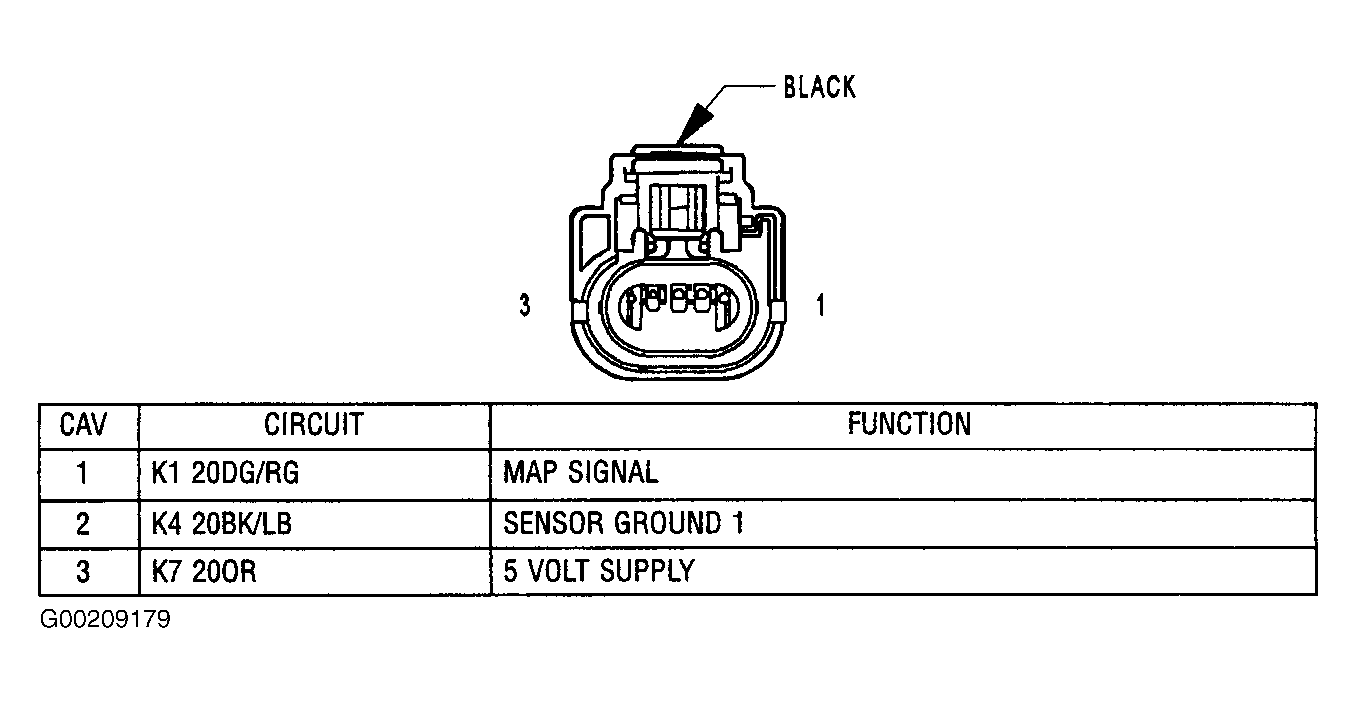

Fig 1: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals

G00209179

Courtesy of CHRYSLER CORP.
