Ignition Coil Harness Connector End View

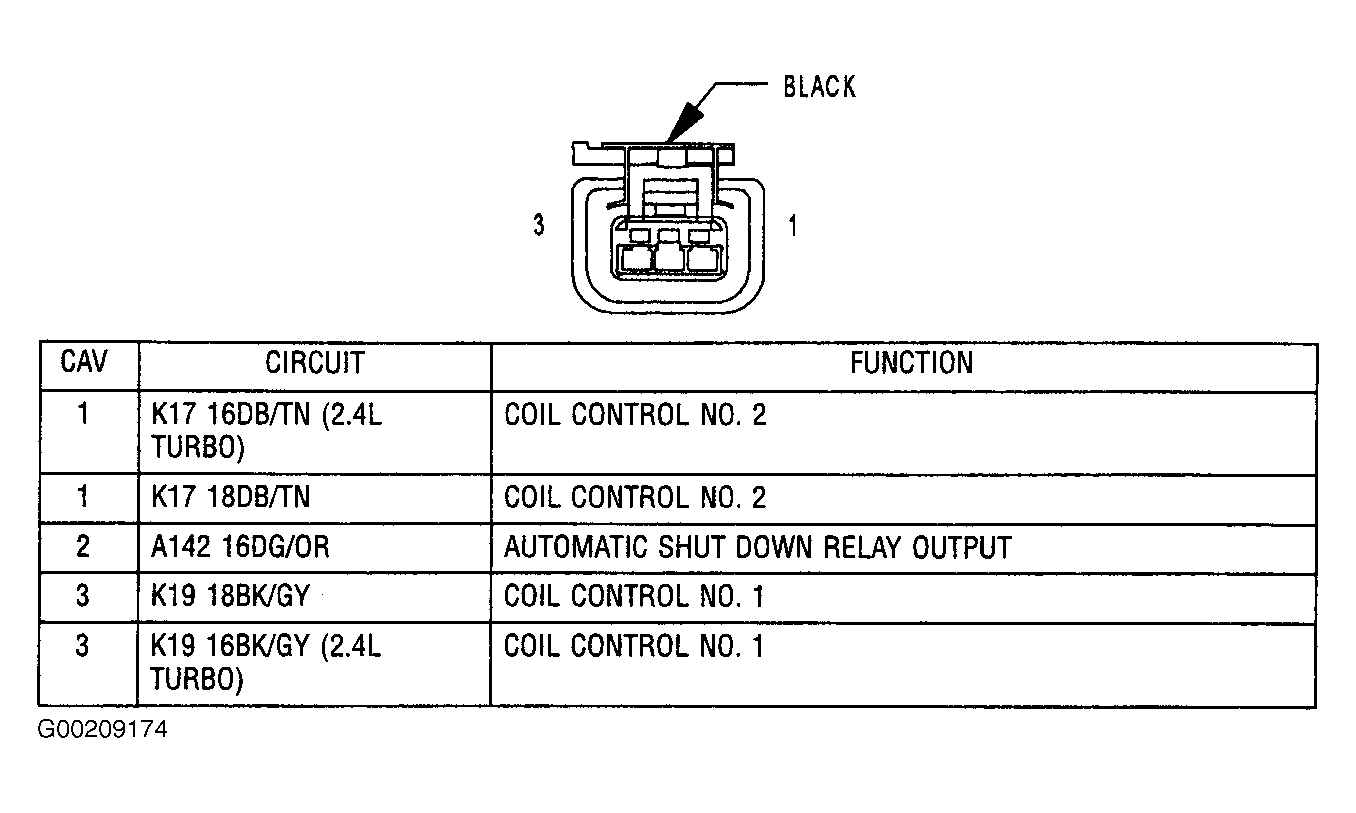

Fig 1: Identifying Ignition Coil Harness Connector

G00209174

Courtesy of CHRYSLER CORP.
