Liftgate Outside Handle: Installation

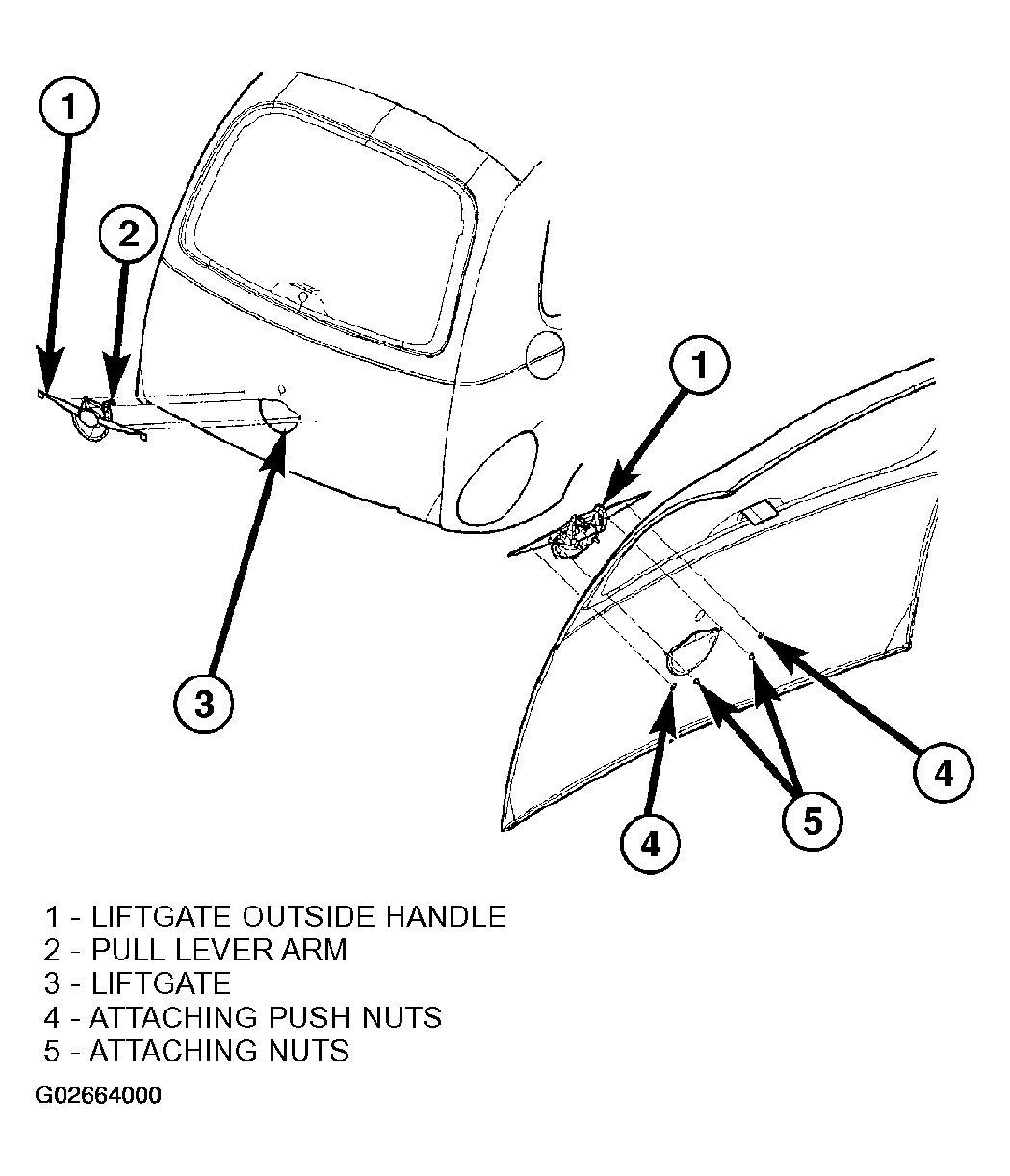

  1. Place liftgate outside handle into position. Remove protected cover from the two side tape (Figure ).
  2. Install handle fasteners. Tighten two nuts to 7 N.m (60 in. lbs.).
  3. Install liftgate control assembly onto liftgate.

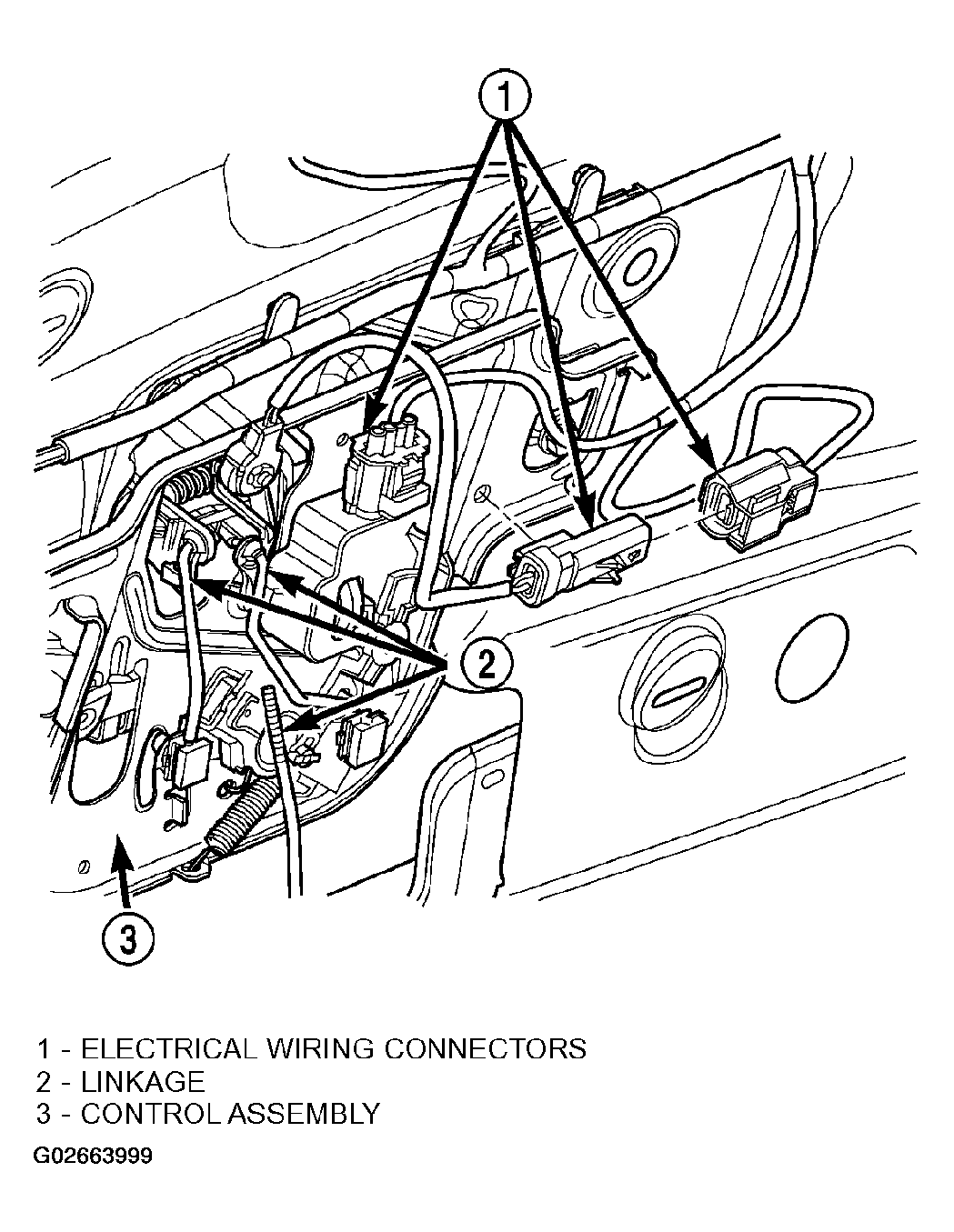

  4. Connect latch linkages and electrical connectors (Figure ).
  5. Install liftgate trim panel.
