Liftgate Inner Control Assembly Panel: Removal

  1. Remove liftgate trim panel.
  2. Disconnect linkage (Fig 1 ).

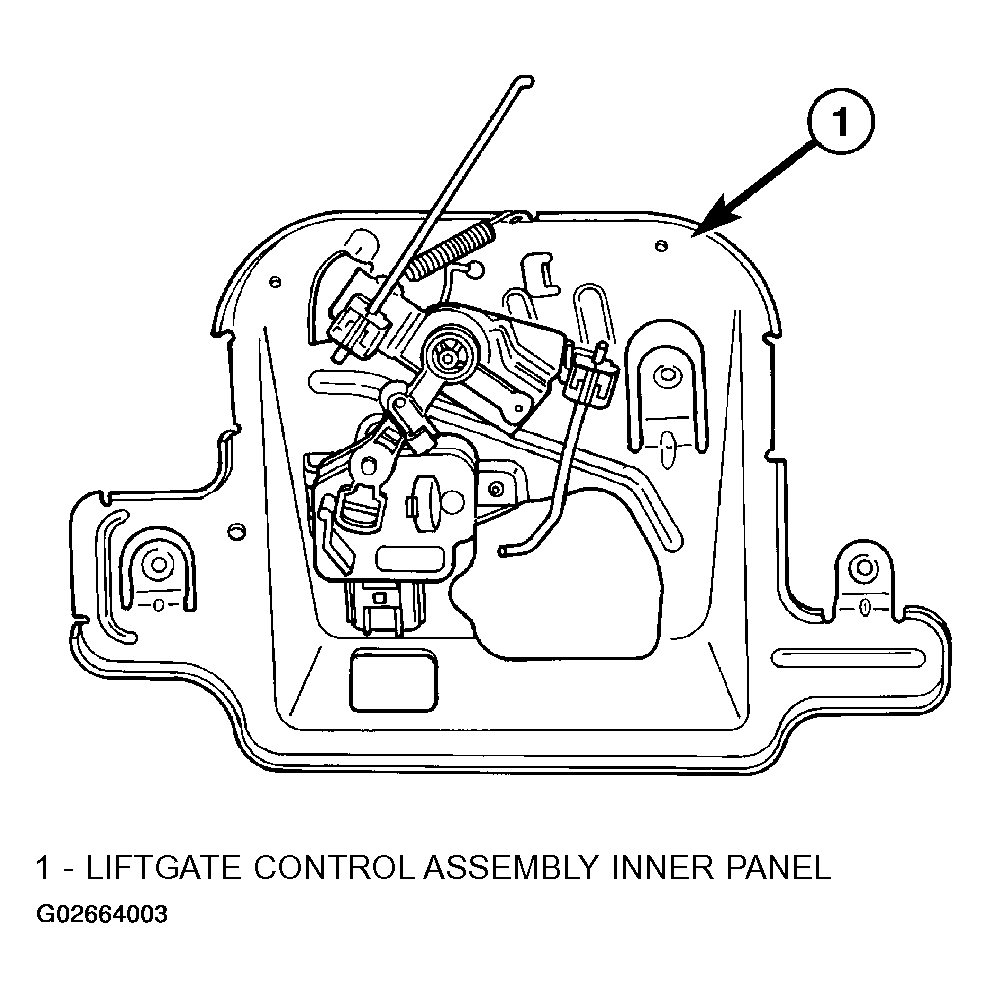

    Fig 1: Identifying Liftgate Control Assembly Inner Panel
    G02664003Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove fasteners attaching control assembly inner panel.
  4. Remove control assembly inner panel from vehicle.
