Liftgate Hinge: Installation

  1. If necessary, paint replacement hinge before installation.

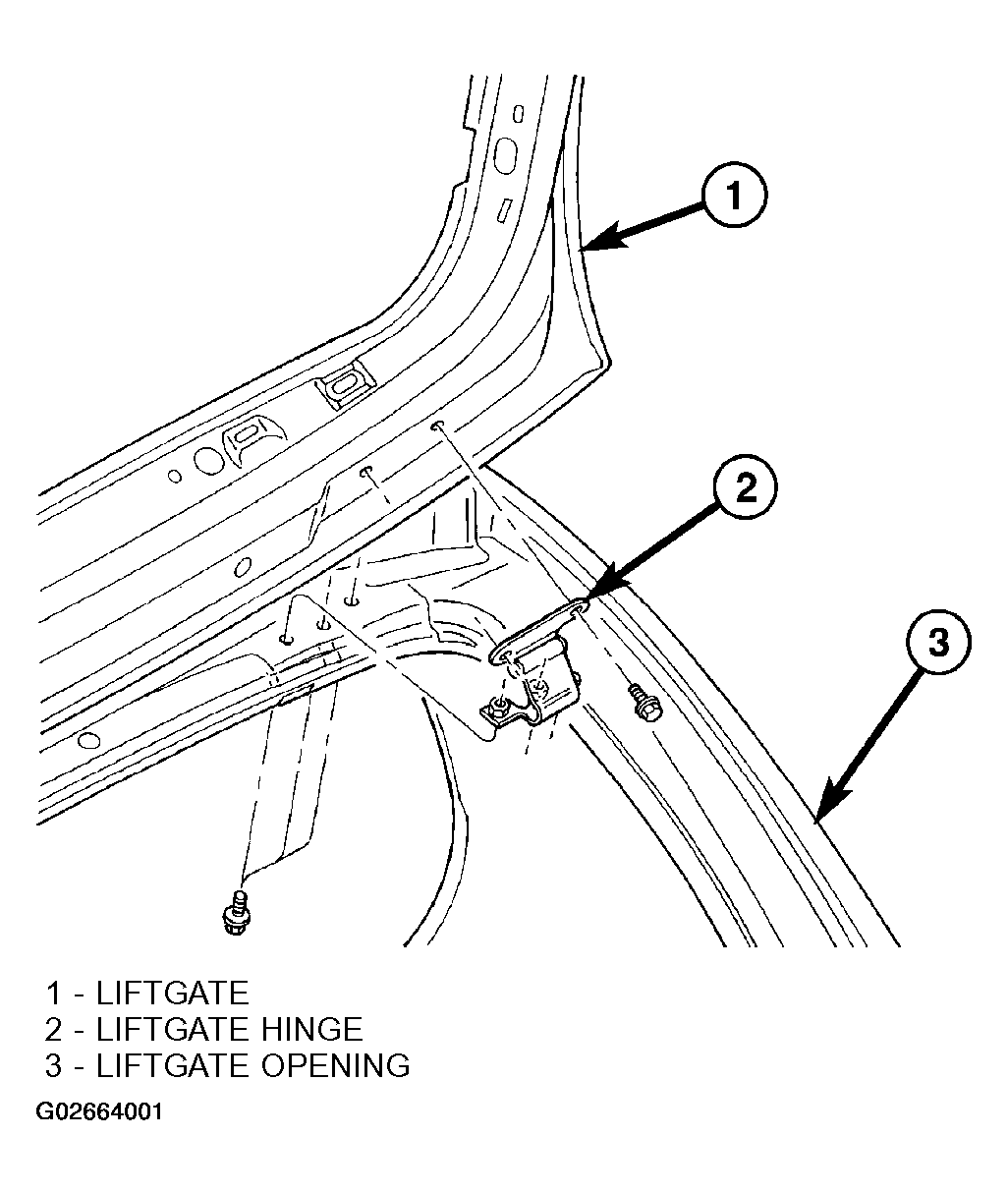

  2. Place hinge in position on vehicle (Figure ).
  3. Align hinge to marks on liftgate.
  4. Install bolts attaching hinge to liftgate. Tighten bolts to 33 N.m (24 ft. lbs.) torque.
  5. Align hinge to marks on roof header.
  6. Install bolts attaching liftgate hinge to roof header. Tighten outer two bolts to 33 N.m (24 ft. lbs.) torque. The sheet medal screw at center 12 N.m (105 in. lbs.)
  7. Remove duct tape from roof and liftgate.
  8. Verify liftgate alignment. Refer to LIFTGATE  for proper gap measurements.
