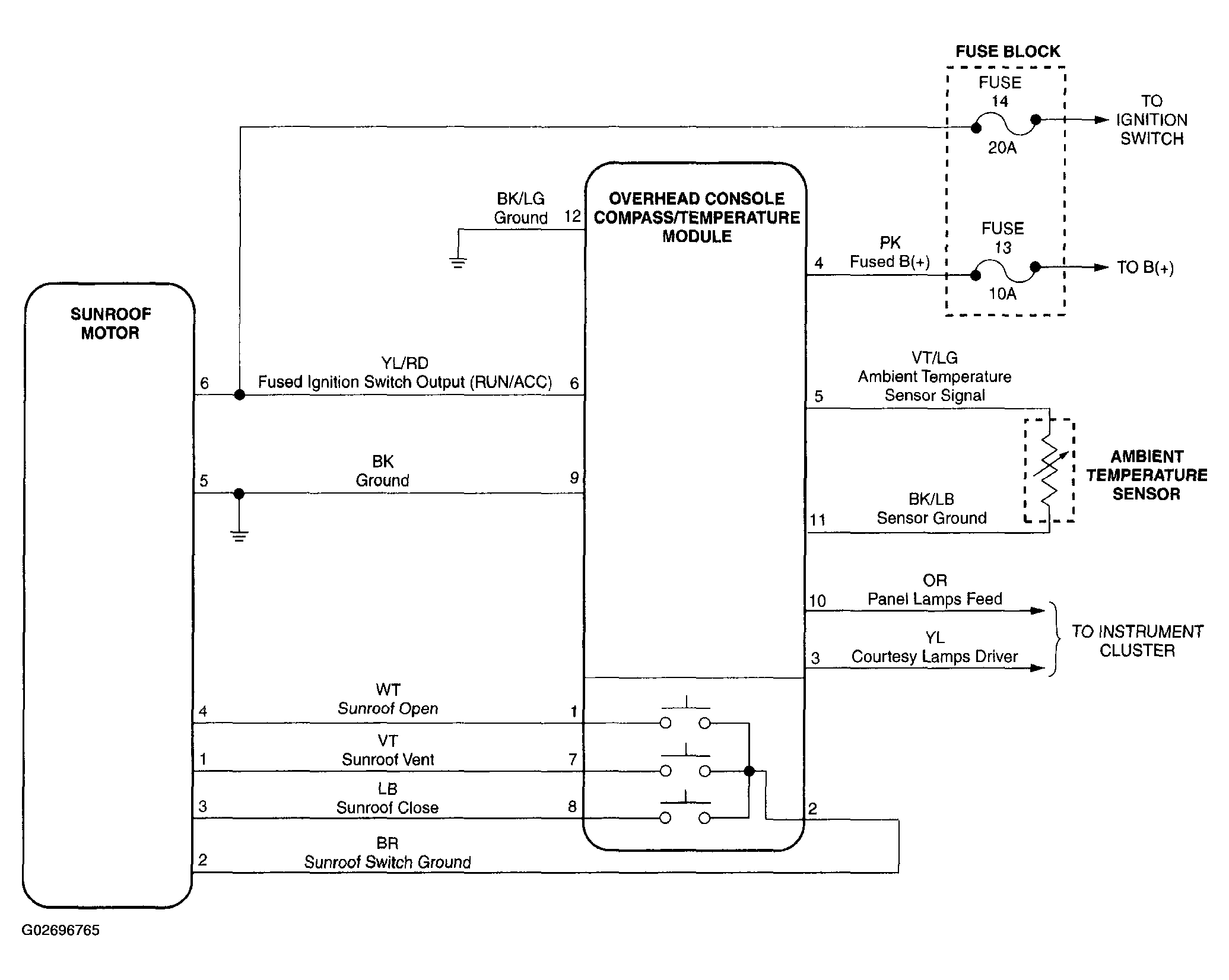

Home >> Chrysler >> 2003 >> PT Cruiser GT, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Compass/Temperature Module
