Installation-Diesel And Turbo Models

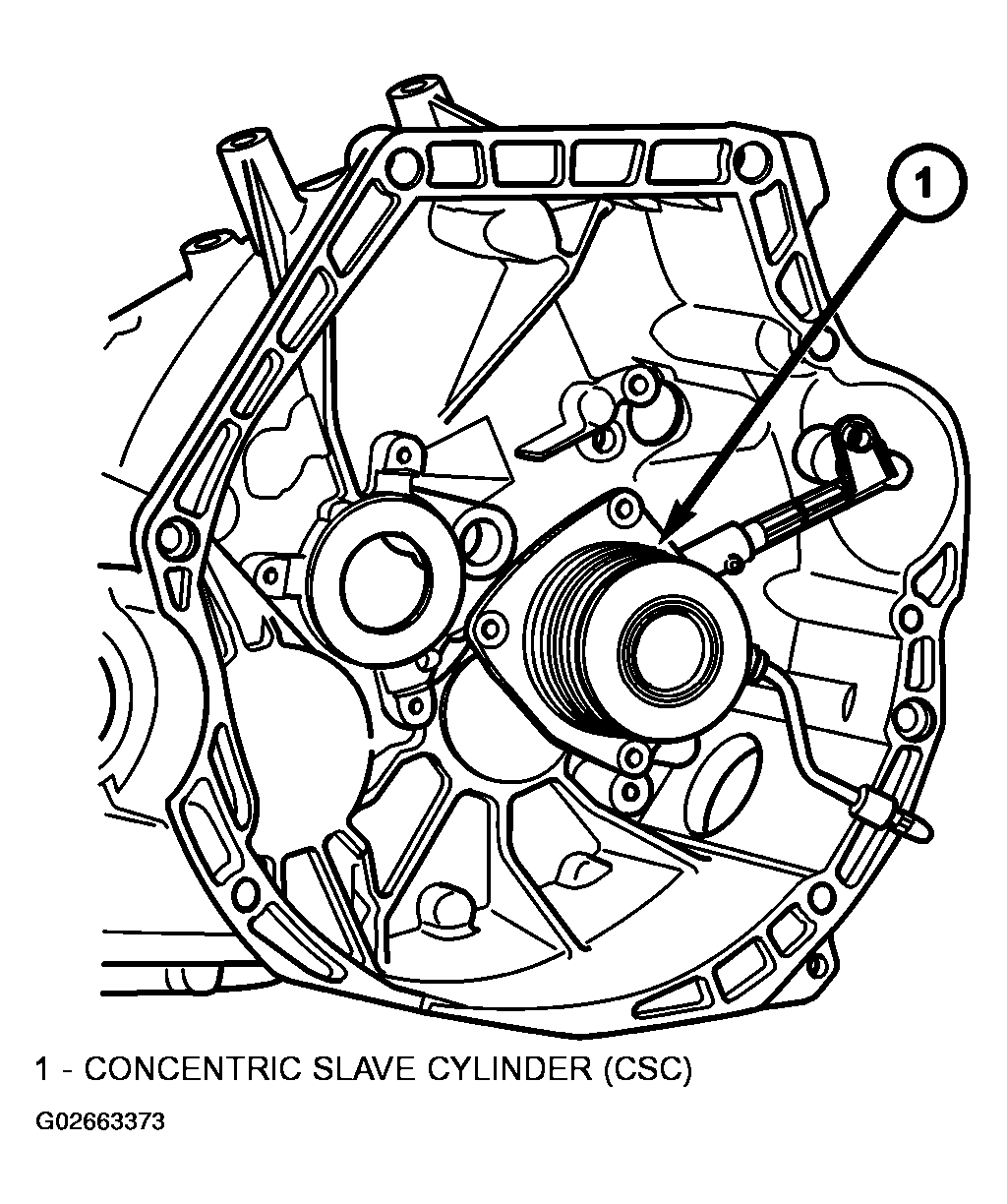

  1. Install slave cylinder to transaxle using new bolts (Figure ).
    2. NOTE: Torque three CSC body screws first, then fluid tube attachment.
  2. Torque slave cylinder-to-case bolts in three steps:
    1. 2 N.m (18 in. lbs.)
    2. 5 N.m (44 in. lbs.)
    3. 8.4 N.m (74 in. lbs.)
  3. Install transaxle. (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION )
