Diesel And Turbo Models

The clutch release system utilizes a slave cylinder of a concentric design, having all components fixed about the same axis. The concentric slave cylinder (CSC) is mounted to the inside of the clutch bellhousing (Fig 1 ), and is serviced only as an assembly.

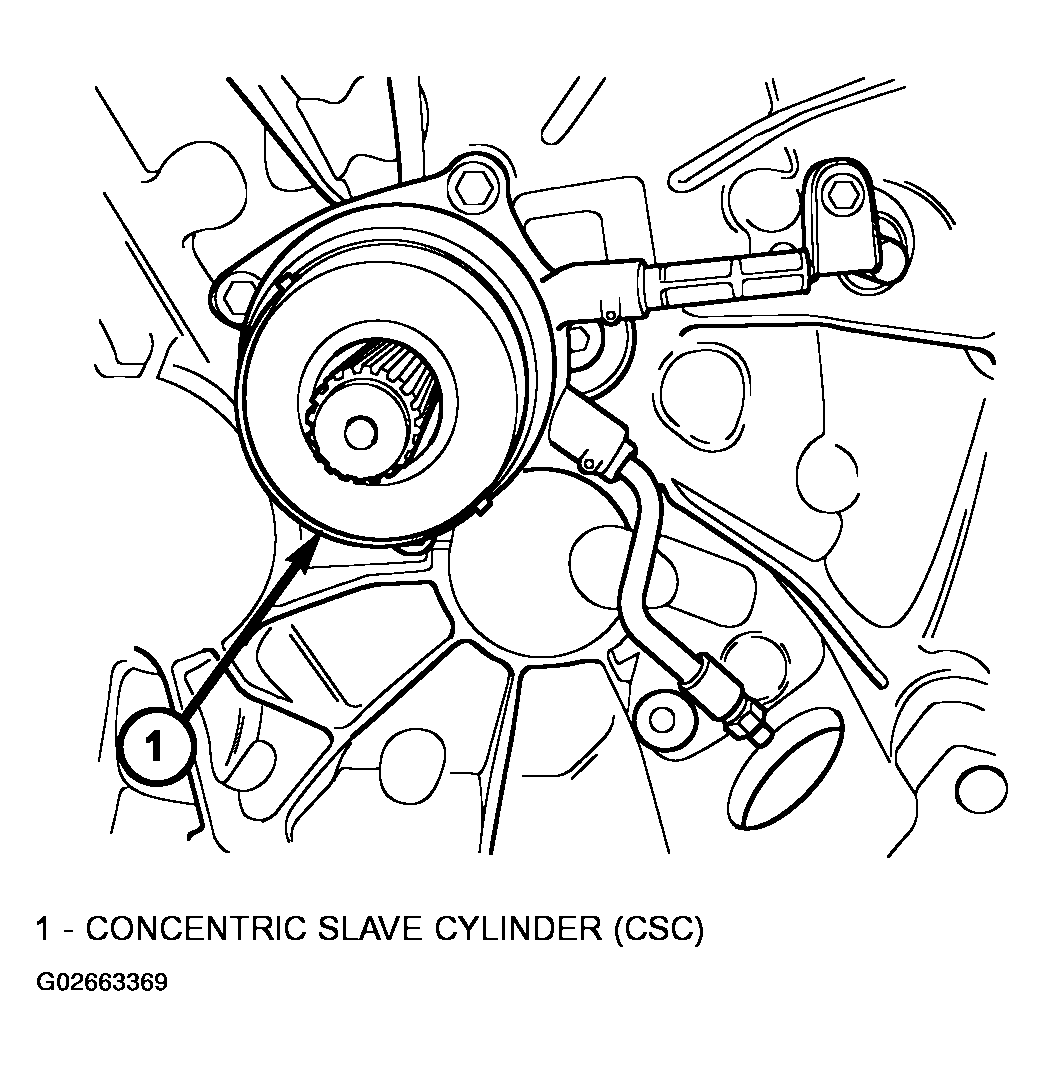

Fig 1: Locating Slave Cylinder - Diesel And Turbo Models

Courtesy of DAIMLERCHRYSLER CORP.

The concentric design permits high efficiency, resulting in low and consistent pedal effort, as well as automatic adjustment to compensate for clutch disc wear.

The CSC is a self-contained unit, consisting of a main body and piston, spring, integrated release bearing, and a rubber boot (Fig 2 ).

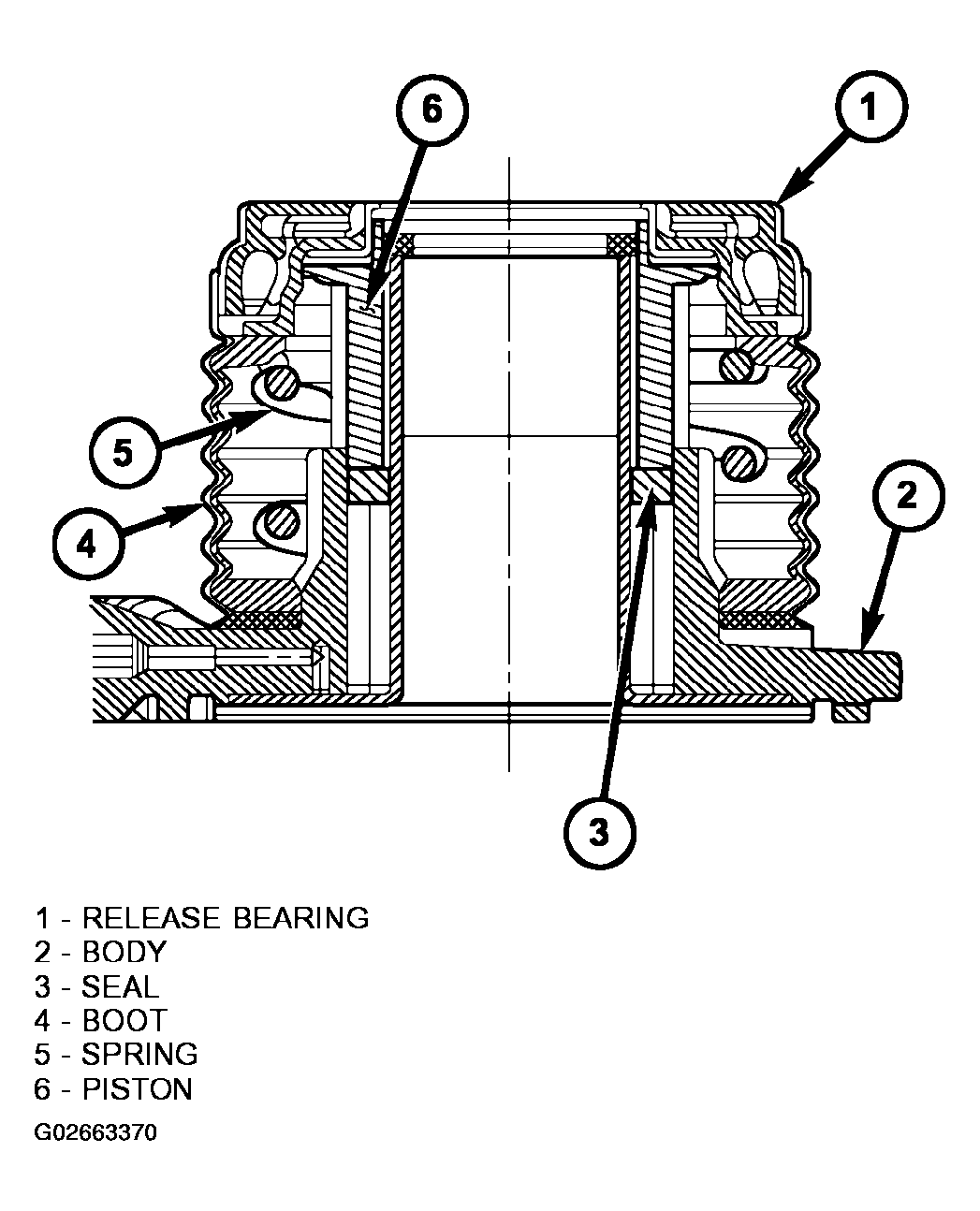

Fig 2: Section View Of Concentric Slave Cylinder (CSC) Components

Courtesy of DAIMLERCHRYSLER CORP.
